YJLHV8(AC90) Aluminum alloy conductor XLPE insulated and aluminum alloy strip armored power cable XLPE insulation armored cable
YJLHV8(AC90) Aluminum alloy conductor XLPE insulated and aluminum alloy strip armored power cable XLPE insulation armored cable description
1,Long-term allowable operating temperature of cable conductor ≤90°C
2Highest working temperature of cable in case of short circuit(the longest time is not over 5s): cable conductor≤ 250°C
3The laying temperature should over 0℃,Permissible bending radius of cable:for single core unarmored cable, should be no less than 20 times of it’s outer diameter ; for single-core armored cable and multi-core unarmored cable, should be no less than 15 times of it’s outer diameter, for multi-core armored cable, should be no less than 12 times of it’s outer diameter
4The product is applicable for AC 50 Hz transmission and distribution lines with rated voltage of 8.7/10KV or 8.7/15KV . Laid indoors, and in tunnels, pipelines(include cable duct), and can not bear external mechanical forces
YJLHV8(AC90) Aluminum alloy conductor XLPE insulated and aluminum alloy strip armored power cable XLPE insulation armored cable specification

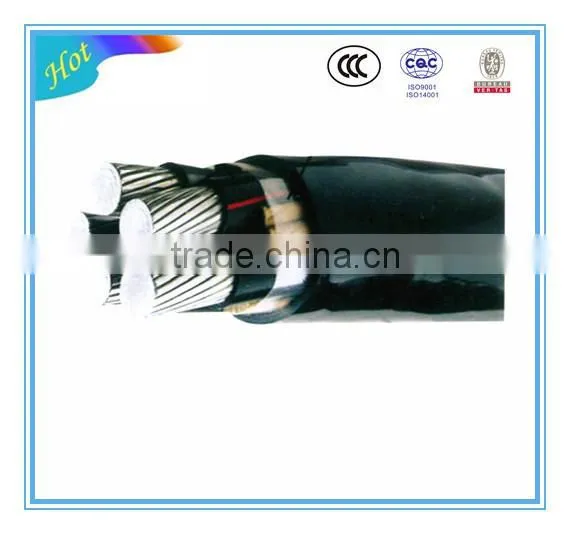

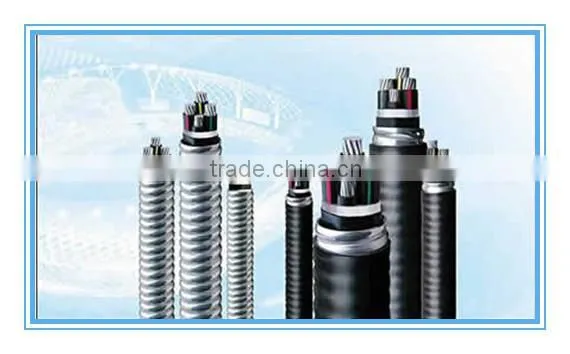

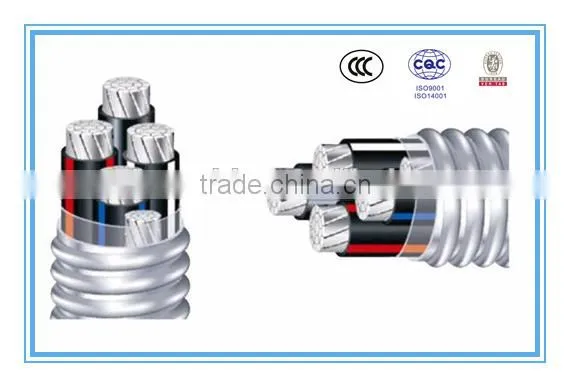

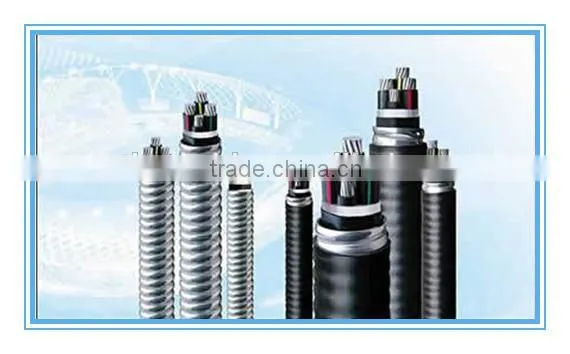

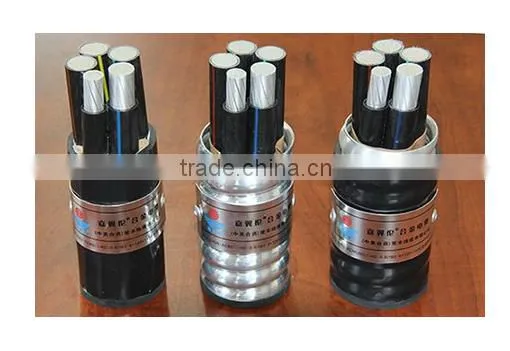

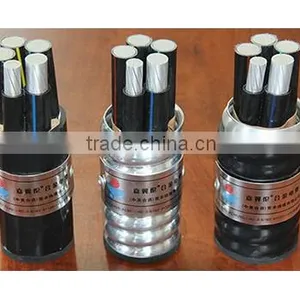

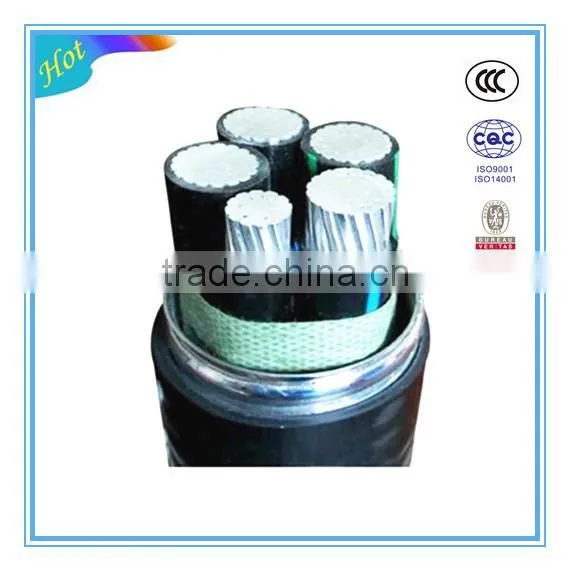

YJLHV8(AC90) Aluminum alloy conductor XLPE insulated and aluminum alloy strip armored power cable XLPE insulation armored cable pictures
Testing Machine
2) Inner packing: Wooden reel, plastic reel, and paper reel available.
3) Outer packing: Carton box, pull out box, pallet available.
4) Other packing available according to client's reques
Delivery Detail: 10 days after receiving 30% T/T or L/C
Why Choose Motian??
- Advanced connectors & assembly cables machines and testing equipments.
- Large production capacity, short delivery.
- Strict QC checking before delivery.
- OEM/ODM service available, help you on designing.
- Prompt quotation for your inquiry.
- More than 10 years experiences in cable and wire field.
- Professional connector and cable manufacturer, with good quality and competitive price.
- Samples are available for further evaluation and you are highly welcome to visit our factory at anytime!!
About us
Sichuan Motian Cable Co. Ltd. was founded in 2005, located in north area of Modern Industrial Zone, Chengdu. The company has obtained ISO9001: 2008, CCC certificates and also “Sichuan Famous Brand”, “Famous and
Excellent Products in Sichuan” etc.
Our company is specialized in various cables and wires with low, medium and high voltage up to35KV
With perfect quality and sound after sales service, our products recive high popularity in domestic markets,
whatever in civil using or governrment projects. Now we are expanding our market all over the world, hereby we
sincerely welcome you to contact us and visit our company.
