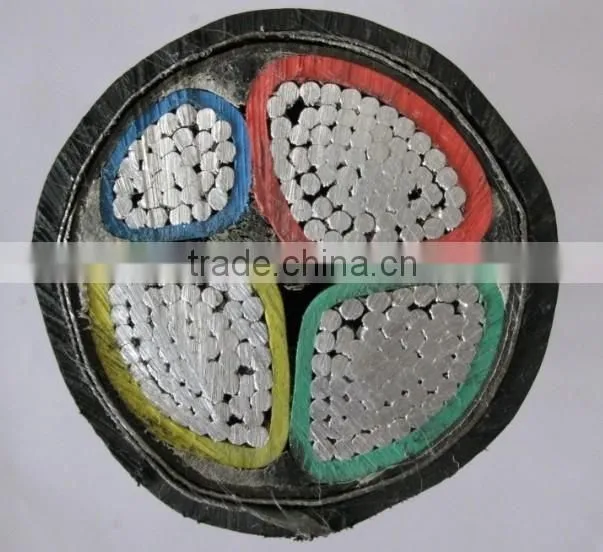

Al conductor PVC insulated PVC sheathed power cable
1,Long-term allowable operating temperature of cable conductor ≤70°C
2,Highest working temperature of cable in case of short circuit (the longest lasting time is not over 5s): ≤300mm2 cable conductor ≤160°C, ≥300 mm2 cable conductor≤140°C.
3,The laying temperature should over 0℃,Permissible bending radius of cable:for single core unarmored cable, should be no less than 20 times of it’s outer diameter ; for multi-core unarmored cable, should be no less than 15 times of it’s outer diameter
4,The product is applicable for AC 50 Hz transmission and distribution lines with rated voltage of 0.6/1KV . Laid indoors, and in tunnels, pipelines(include cable duct), and can not bear external mechanical forces.
Al conductor PVC insulated PVC sheathed power cable
Sichuan Motian Cable Co. Ltd. was founded in 2005, located in north area of Modern Industrial Zone, Chengdu. The company has obtained ISO9001: 2008, CCC certificates and also “Sichuan Famous Brand”, “Famous and Excellent Products in Sichuan” and so on.
Our company is specialized in various cables and wires with low, medium and high voltage up to35KV, mainly including: XLPE insulated power cable, Rare earth high speed rail aluminum conductor power cable,
Aerial insulated cable, Mining cable, Control Cable, Rubber sheathed cable, Special cables as flame retardant cable, fire resistant cable, LSZH cable and Sheathed or non-sheathed wires. The products can be widely applied in the areas of power station, metallurgy, mines, petrochemical, machinery, building, communication etc.
We have professional R & D department and have obtained patents for various of our products.
Cables & Wires Up to 35kV
Cables & Wires for Electric Equipments
Al conductor PVC insulated PVC sheathed power cable
Testing Equipment
Package with High Quality
Professional & Safe Shipping
