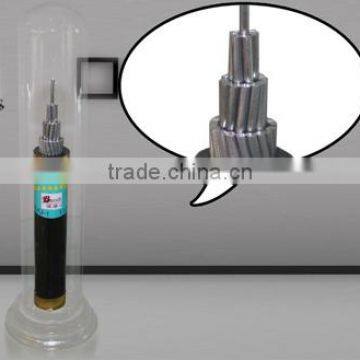

ACSR Aluminum Conductor Steel Reinforced Aerial Insulated Cable

copper or aluminum conductor XLPE insulated PVC sheathed  power wire cable

Our factory is available to offer free samples for testing.

1.Brief company introduction:

Sichuan Motian Cable Co., Ltd. was founded in 2005, located in north area of  Modern Industrial Zone, Chengdu. The company has obtained ISO9001:2008, CCC certificate and also "Sichuan famous brand", famous and excellent products in Sichuan etc.

Our company is specialized in various cables and wires with low, medium and high voltage up to 35KV, mainly including: XLPE insulated power cable, rare earth high speed rail aluminum conductor power cable, aerial insulated cable,mining cable, LSZH cable and sheathed or non-sheathed wires. The products can be widely used in the areas of power station, metallurgy,mines,petrochemical,machinery,building, communication,etc.

We have professional R&D department and have obtained patents for such products as water proof power cable, fire resistant & insulated shielded cable, special anti-corrosion cable,marine flexible cable with heat resistant, moisture resistant and oil resistant properties, anti-corrosion control cable with heat resistant properties, overhead wires & cables, aerial wires and cables, high voltage flexible cable for transformer, etc.

2.Technical specification:

A:Rated voltage: up to0.6/1KV

B:Long-term allowable operating temperature of cable conductor should not over 70/90/125 celcius.

C:Burning smoke density comply with GB/T 17651.2-1998 (IEC1043) standards:light transmittance>60%.

D:Halogen acid content test company with GB/T 17650-1998 (IEC754-2) standards:PH value>4.3,conductor<10us/mm.

E:Flame retardant property comply with GB/T 12666-1990 standards.

F:Toxicity index:<3

G:Products basic performance meet requirements of corresponding product.

3.Performance requirements characteristics:

A:No halogen,no heavy metal,such as plumbum,cadmium,non-pollution.

B:Safety,flame-retardant,when burned,less harmful gases and smoke less.

C:Renewable utilization,not harm the environment when discorded, no dioxin and other carcinogenic substance diffusion.

D:Not change the product of the physical properties and use characteritics.

4.Eco-friendly and combustion performance requirements:

A:Flame-retardant (single vertical burning) <60S.

B:Transmittance 60% min.

C:Sheathed material HCL5mg/g max.

D:Jackect material combustion gas PH value 4.3 min.

E:Jackect material combustion gas conductivity 10 us/mm max.

5.Parameters:

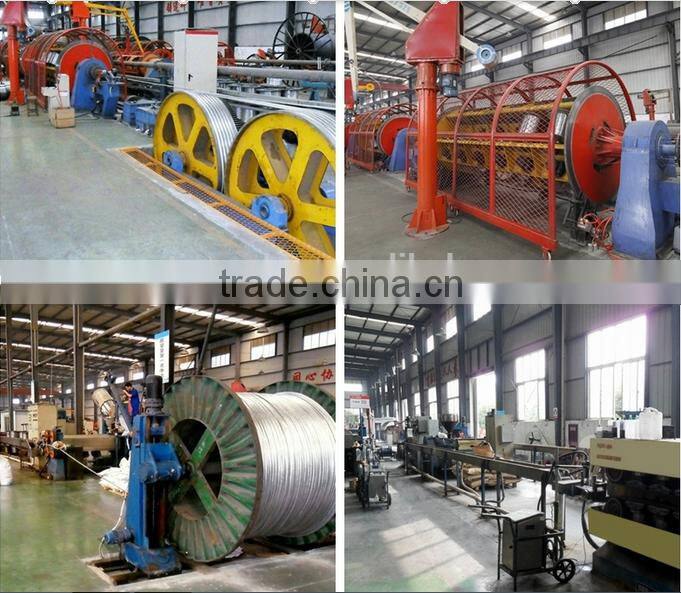

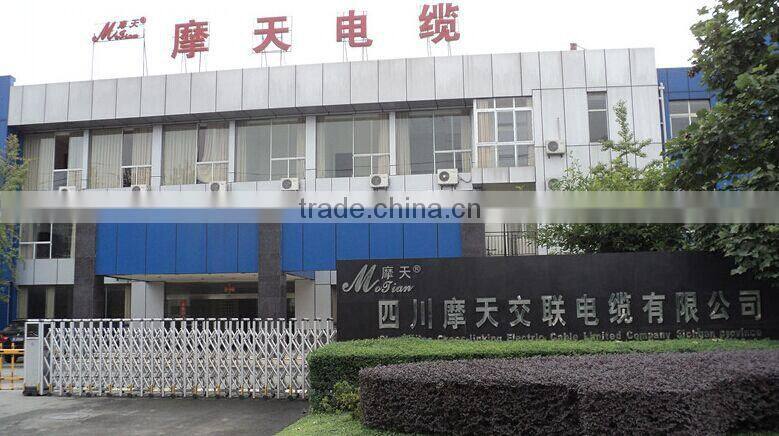

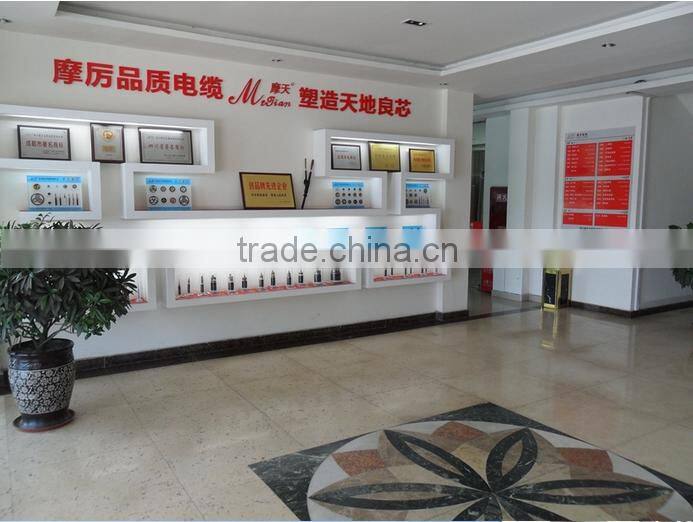

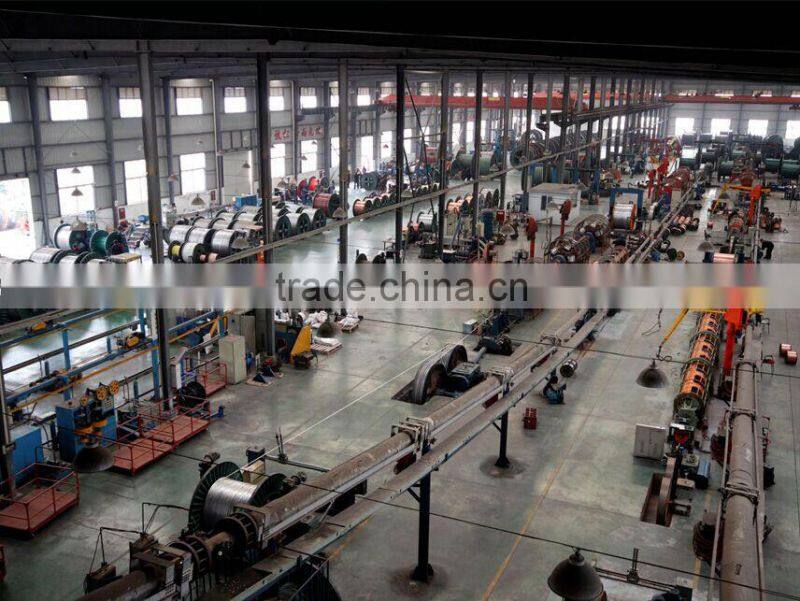

6.Factory view:

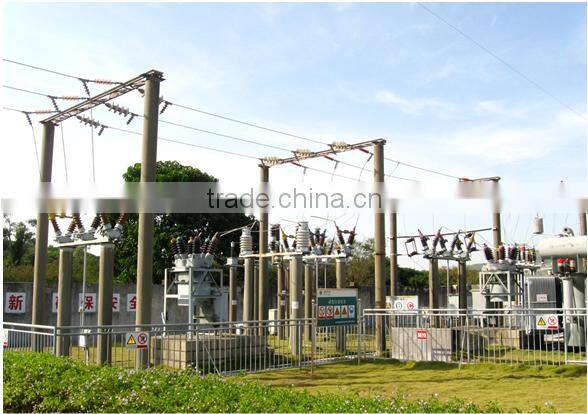

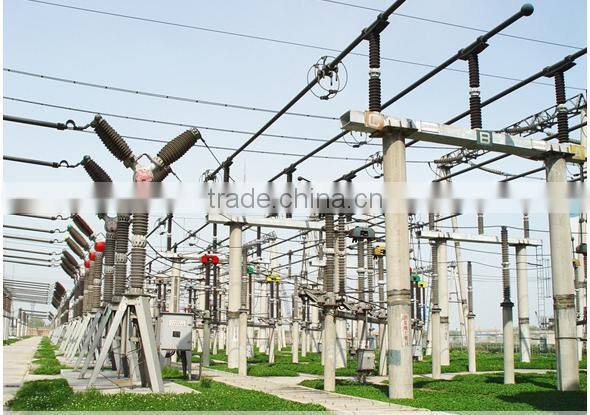

7.Application of aerial cable:

8.Certificate:

Welcome to visit our factory and inspect.
