Single-core electriccal wire cable China factory electrical wire cheap price electrical house wiring
Single-core electriccal wire cable China factory electrical wire cheap price electrical house wiring description
1. Long-term allowable operating temperature of cable conductor ≤70°C;
2. In AC system, system voltage should lower than rated voltage of cable;
3. In DC system, system voltage should no more than 1.5 times of rated voltage of cable;
4. Ambient temperature of installation not lower than 0℃, allowable bending radius: for cables with outer diameter(D) less than 25mm, should be not less than 4D; for cables with outer diameter(D) 25mm and above, should not be less than 6D.
5. The products are suitable for fixed laying or laid in pipes, overhead.
Single-core electriccal wire cable China factory electrical wire cheap price electrical house wiring specification
Type
BV, BVR, BLV,BVVB,BVVBR,RV,RVS
Voltage Rate
300/500V, 450/750V
Range of Nominal cross section:
0.75 mm2 ~ 630 mm2
Application
These cables are used for general purpose, as building wire for power, lighting and control wire to electrical appliances, suitable for use in conduit and for fixed, protected installation.
Standard
IEC 60227, BS 6004, VDE0281, GB/T 5023, JB/T8734
Constructions
Conductor: Class 1/2 Plain annealed copper wires, solid or stranded
Insulation: PVC
Core color: Red, Brown, Grey, Black, Blue, Green/Yellow or others on request
Max. Operating Temperature
70°C, can be 90°C,105°C as per requirement
Remark
The cable can be of flame retardance, fire resistance and other property

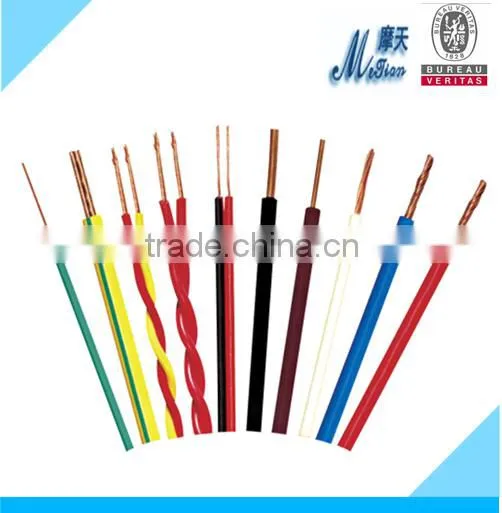

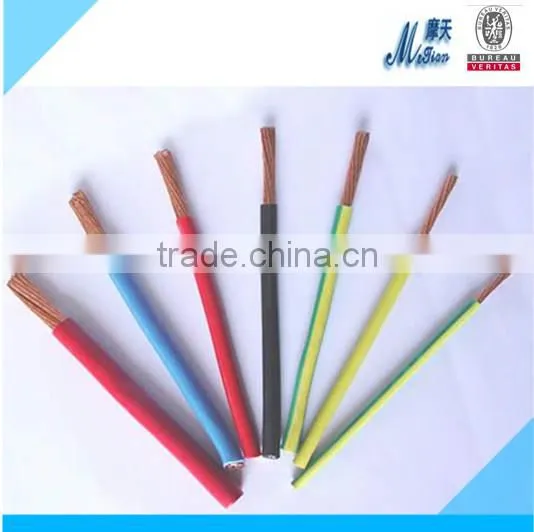

Single-core electriccal wire cable China factory electrical wire cheap price electrical house wiring pictures
Testing Machine
2) Inner packing: Wooden reel, plastic reel, and paper reel available.
3) Outer packing: Carton box, pull out box, pallet available.
4) Other packing available according to client's reques
Delivery Detail: 10 days after receiving 30% T/T or L/C
Why Choose Motian??
- Advanced connectors & assembly cables machines and testing equipments.
- Large production capacity, short delivery.
- Strict QC checking before delivery.
- OEM/ODM service available, help you on designing.
- Prompt quotation for your inquiry.
- More than 10 years experiences in cable and wire field.
- Professional connector and cable manufacturer, with good quality and competitive price.
- Samples are available for further evaluation and you are highly welcome to visit our factory at anytime!!
About us
Sichuan Motian Cable Co. Ltd. was founded in 2005, located in north area of Modern Industrial Zone, Chengdu. The company has obtained ISO9001: 2008, CCC certificates and also “Sichuan Famous Brand”, “Famous and
Excellent Products in Sichuan” etc.
Our company is specialized in various cables and wires with low, medium and high voltage up to35KV
With perfect quality and sound after sales service, our products recive high popularity in domestic markets,
whatever in civil using or governrment projects. Now we are expanding our market all over the world, hereby we
sincerely welcome you to contact us and visit our company.
Producing process
