High Speed Steel Profile Roll Forming Machine
- Shanghai or Ningbo
- T/T Money Gram
You May Like
Product Details
| Condition | New | Type | Tile Forming Machine | |
| Tile Type | Colored Steel | Use | Roof | |
| Production Capacity | 15-20m/min | Place of Origin | Zhejiang, China | |
| Brand Name | WILLING | Model Number | WLFR | |
| Power(W) | 4~5.5kw | Voltage | 380V 3 phase 60Hz or at buyer's requirement | |
| Dimension(L*W*H) | 5m*1.3m*1.3m-15m*1.3m*1.4m | Weight | about 8000Kg | |
| Certification | CE, ISO | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

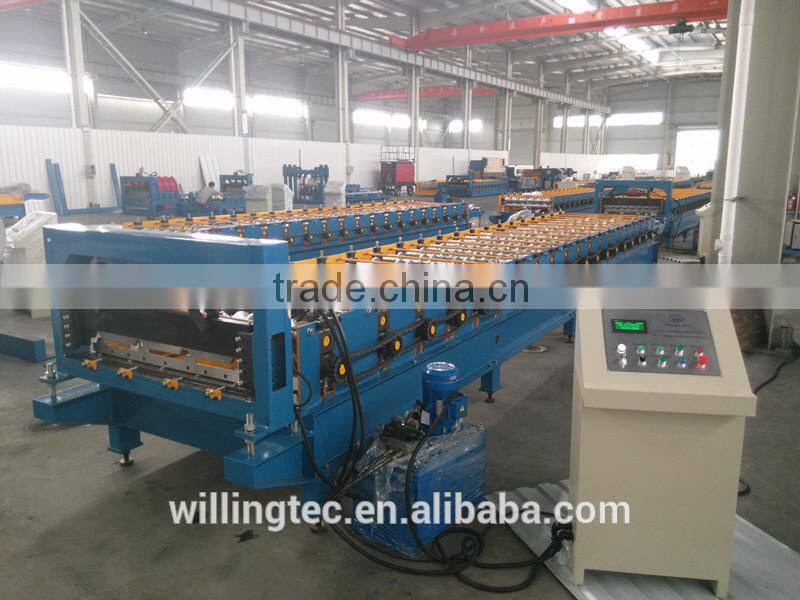

Steel profile roll forming machine
We can design the machine as your sample or profile.
Specifications
| Model | WLFR | |
| Material | Type | Pre-paited steel sheet |
| Thickness | 0.2-0.7 mm | |
| Yield stress | 230-550 Mpa | |
| Max.Forming speed | 15-20 m/min | |
| Roller material | 45#Steel with chrome treatment | |
| Roller driven type | Chain transmission | |
| Controller | PLC | |
| Operation | Touch screen and button | |
| Hydraulic system pressure | 12 Mpa | |
| Hydraulic station motor power | 3 KW | |
| Main motor power | 5.5 KW | |
| Total power | 8.5 KW | |
| Total weight | About 8000 Kg | |
| Index error of length | 10m±2mm | |
| Voltage | 380V 3 phase 60Hz or at buyer's requirement | |
Working Flow
Decoiling the sheet-----Sheet guiding-----Roll forming-----Pressing the panel-----Measure length-----Cutting the panel-----Panels to the supporter
Standard Equipment of Machine

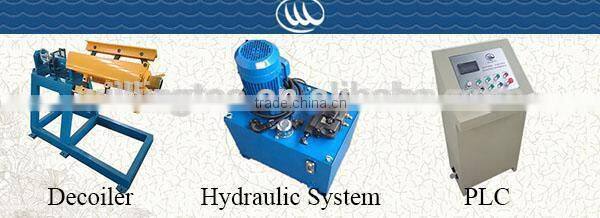

| Uncoiler | 1 pcs |

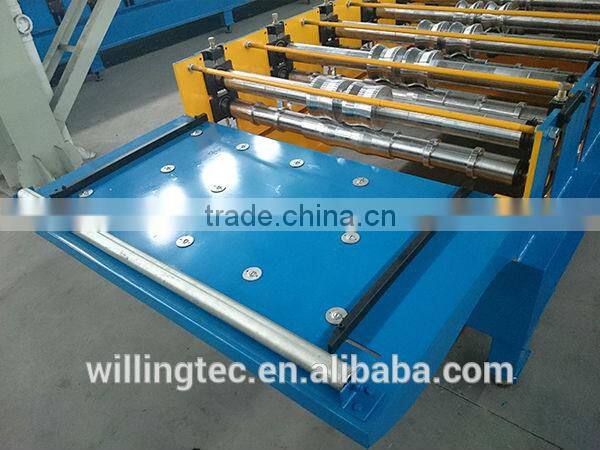

| Guiding Equipment | 1 set |
| Roll Forming Equipment | 1 set |
| Pressing Equipment | 1 set |

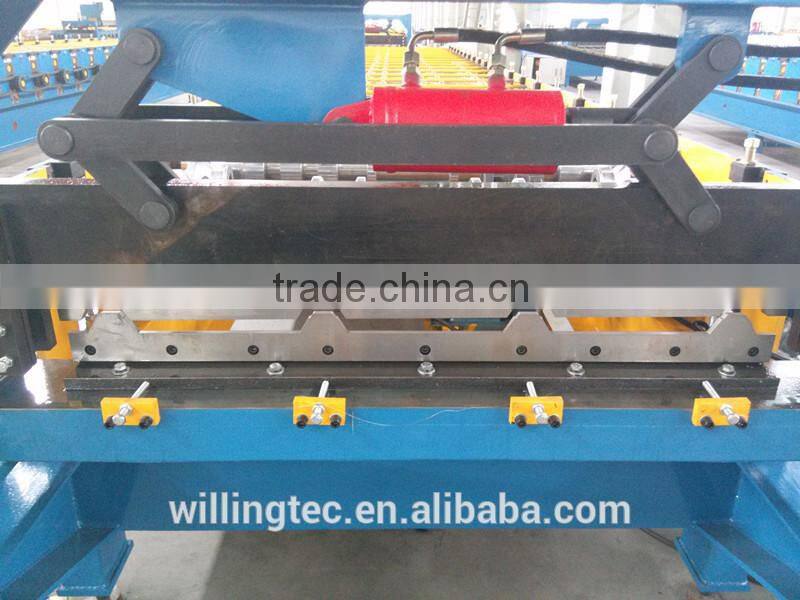

| Post Cut Equipment | 1 set |
| Hydraulic Station | 1 pcs |
| PLC Control System | 1 pcs |
| Support Table | 2 pcs |
Material of Main Equipment

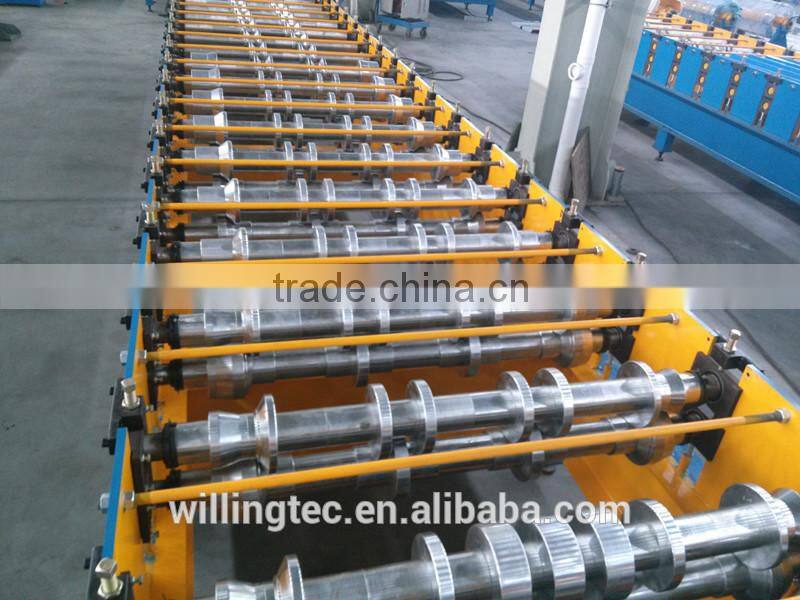

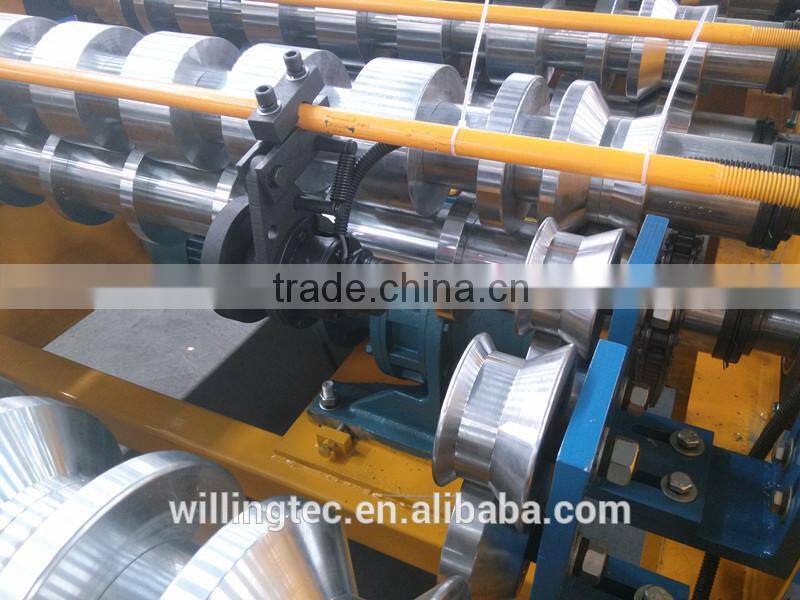

| Roller Material | High grade No.45 forged steel, plated hard chrome on the surface of roller with thickness 0.05mm |
Active Shaft Material | High grade No.45 carbon wrought steel,which can improve the integrated mechanic feature of the shaft. |
| Electric Elements | PLC control panel, transducer imported from Mitsubishi of Japan. Other elements are from famous suppliers of China. |
| Cutter blades | Cr12 mould steel with quenched treatment. |
| Oil tank | model of hydraulic system:CB-E310 |
We do your care, Machine Loading
Because of the long trip and your super trust, we will make sure roll forming machine can be appeared in front of you in fully good condition, you will fall in love with it with first glimpse.
Our company,Zhejiang Willing International Co.,Ltd is a professional supplier in the field of steel structure construction, especially good at making roll forming machine.
We also sell the products produced by these machines.
Thanks very much for your time, welcome to contact WILLING, we are with you within 24 hours.
We want to know following information.
1) What is the exact profile you want to produce?
2) What kind of material you will use, such as steel or aluminium, max coil weight, thickness?
3) What kind of decoiler and stacker you need?
We are willing to service for you!
