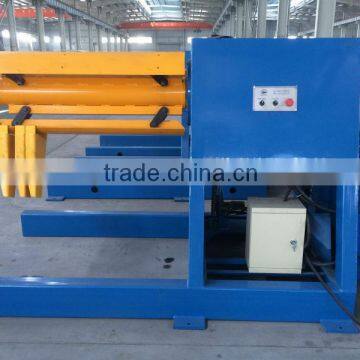

High quality electric decoiler

FOB Price

USD $7,500 - $20,000 / Set

1 Set(Min.Order)

Port shanghai ningbo
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Uncoiling Machine
Use	Sheet	Place of Origin	Zhejiang, China
Brand Name	WILLING	Model Number	hydraulic decoiler, 5T, 8T or 10T
Voltage	as custom's required	Certification	CE&ISO
Warranty	1YEARS	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Specifications

High quality electric decoiler
1. high quality
2. easy to control
3. automatic driven
4. beautiful outlook

Hydraulic uncoiler system

Parameters:

1. For lifting dolly: max. capacity: 10 tons; Speed: 6m/min; Lifting: max.550mm; Moving: max. 3000mm

2. Fo uncoiler: max. capacity: 10 tons; Inner Dia.: 508mm or 610mm( gasket is required) Width: max. 1500mm

3. For hydraulic: max. hydraulic pressure: 16Mpa; Motor power: 10.5kw; Air pressure: 0.9Mpa

Components:

The uncoiler consists of the lifting dolly, uncoiler with pressing arm, frame with lead rail, and hydraulic system. The lifting dolly can be lifted, move on the lead rail, carry the coil to the uncoiler, the leafs of the uncoiler expanse, the coil be fixed on the uncoiler, main axis of the uncoiler rotate, the coil sheet comes out. After the coil sheet fed into the roll forming machine, the coils sheet will be pulled back to minimize the pendant.

Work flow:

Fix the coil to the uncoiler——fix coil sheet to lifting dolly——lifting dolly moves to uncoiler——lifting dolly lifts to the same center with uncoiler——lifting dolly moves more closed to uncoiler arms of uncoiler——expanse (coil moves to the uncoiler)——lifting dolly returns——axis of uncoiler rotate ( coil sheet comes out)
