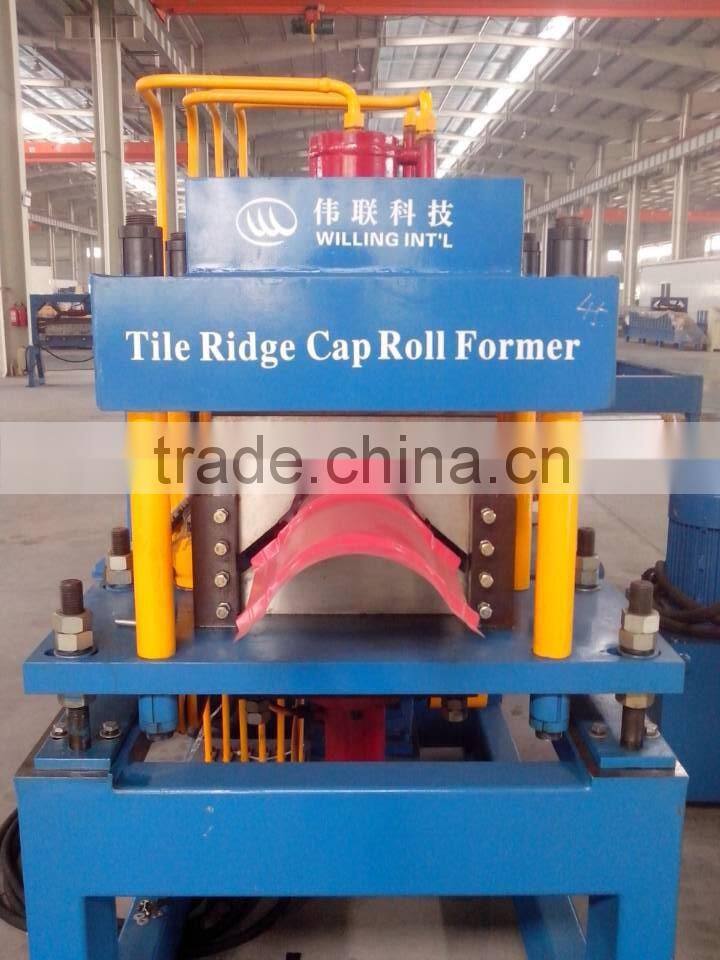

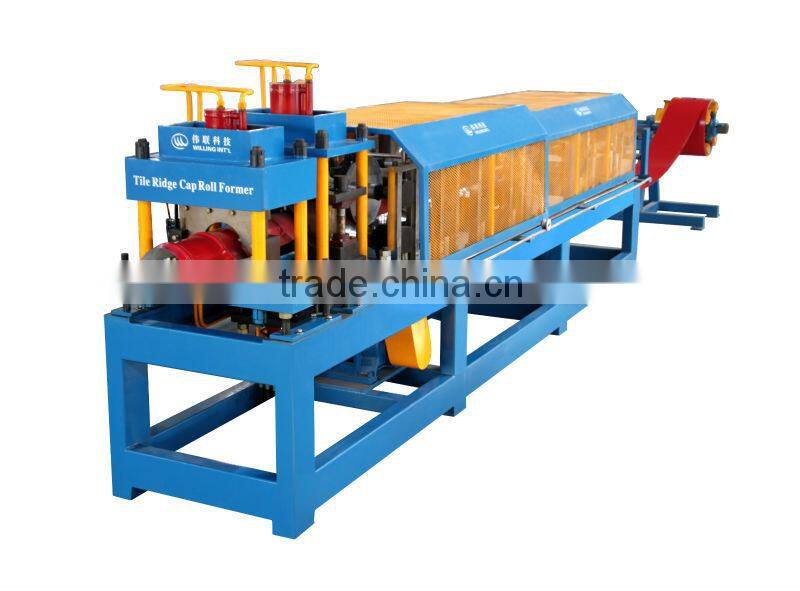

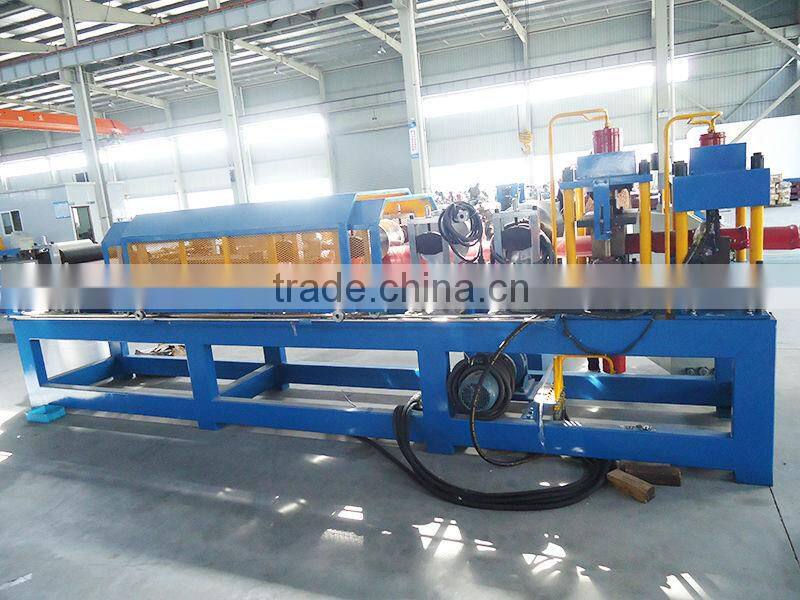

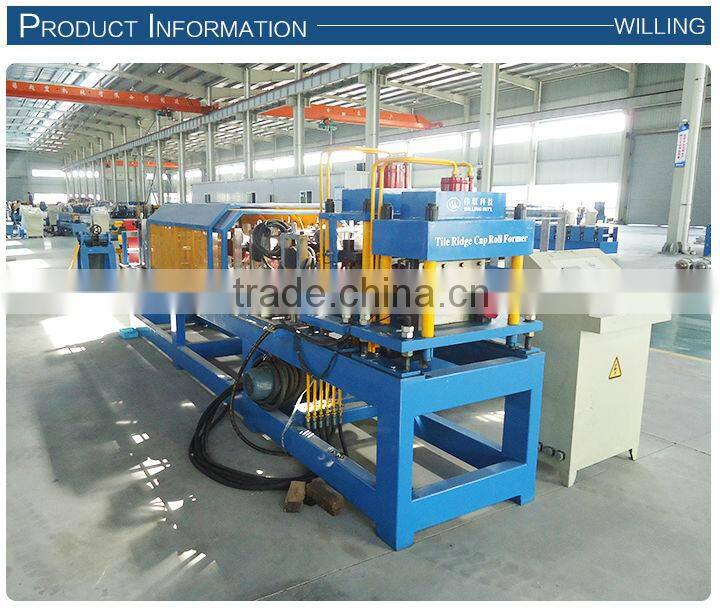

Ridge Cap Roll Forming Machine

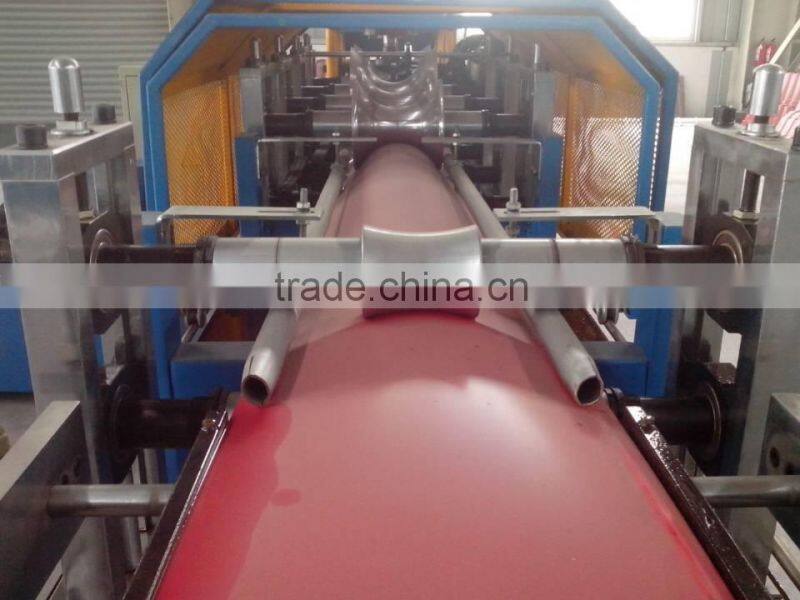

Galvanized steel ridge cap roll forming machine consists of uncoiler and its base, infeed guides, fixed position driven forming stations, pressing die, shearing device, hydraulic station, PLC control console and so on. Our company has dozens of profile models for this series roll forming machine. We can design different kinds of profile and fittings for machine, as per customers' requirements.
We can design the machine as your requirement.
Working Flow:

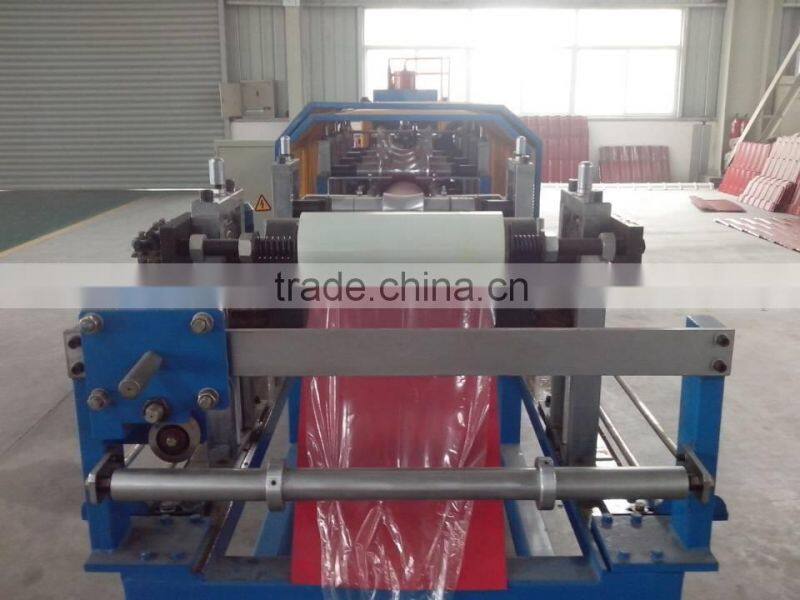

Uncoiler→Sheet Guiding→(Film Covering)→Roll Forming→Measuring Lengh →Pressing →Cutting the Panel→Panels to the Supporter
Main Technical Parameters:
| Model | WLTM | |
| Material | Type | Pre-paited steel sheet |
| Thickness | 0.3-0.7 mm | |
| Yield stress | 230-300 Mpa | |
| Max.Forming speed | 2-3 m/min | |
| Roller material | 45#Steel with chrome treatment | |
| Roller driven type | Chain transmission | |
| Controller | PLC | |
| Operation | Touch screen and button | |
| Hydraulic system pressure | 12 Mpa | |
| Hydraulic station motor power | 5.5 KW | |
| Main motor power | 5.5KW | |
| Total power | 11 KW | |
| Total weight | About 8000 Kg | |
| Index error of length | 10m±2mm | |
| Voltage | 380V 3 phase 60Hz or at buyer's requirement | |
Tile Roll Forming Machine Material of main equipment:

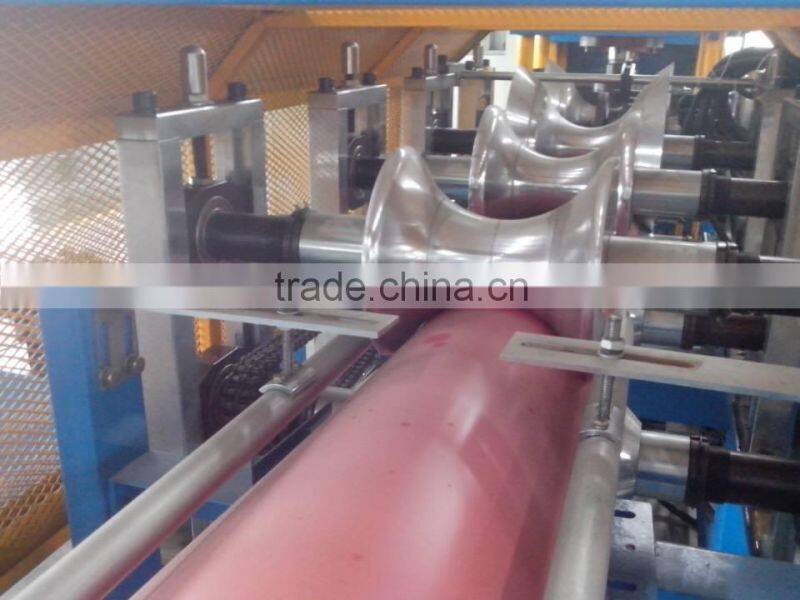

1) Roller material: high grade no. 45 forged steel, plated hard chrome on the surface
of roller with thickness 0.05mm
2) Active shaft material: high grade No.45 carbon wrought steel at diameter 75mm
3) Cutter blade: Cr12 mould steel with quenched treatment
4) Electric elements: control system with PLC model S7-200, Siemens transducer with
ABB control panel with TP170, Siemens. It can input 10 sets of spec at one time
5) Oil tank model of hydraulic system: CB-E310
Steel form deck roll former: 1. rollers are put on anti-rust oil and packed by bubble wraps; some other
electric parts are packed by bubble wraps as well; 2. the oil hose and electric wires ae marked, and easy
to be connected when used; 3. in container loading, sea-worthy, well fixed by wire rope, wooden block and nails.
Our company,Zhejiang Willing International Co.,Ltd is a professional supplier in the field of steel structure
construction, especially good at making Forming Machine.
We are willing to service for you!
1), Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the world. We
need your machines running in order to keep your business running.
2), Q: How do your machines compare with other big companies in this market?
A: We are up to date with the latest technology and improve our machines accordingly
3), Q: How does your factory do regarding quality control?
A: Quality is priority. WILLIN People always attach great importance to quality control from the very

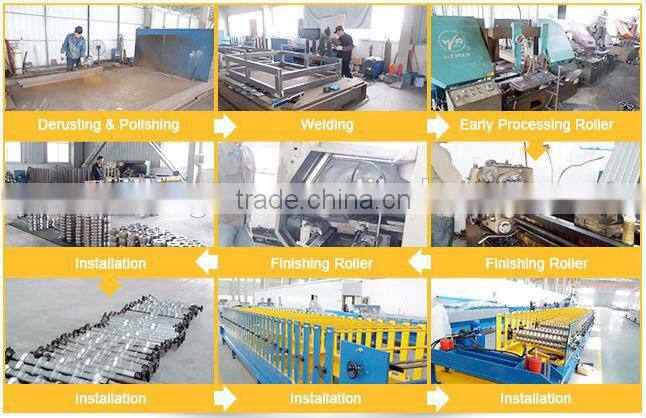

beginning to the end of the production. Every product will be fully assembled and carefully tested before
it's packed for shipment.
4), Q: Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name
components
5), Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and credit. MACTEC is ALIBAB's Gold
supplier with BV assessment. If you check with ALIBABA, you will see that we have never got any
complaint from our customers.

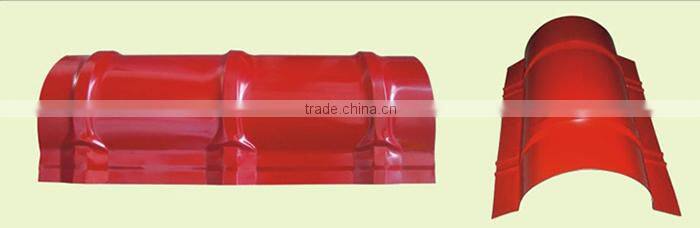

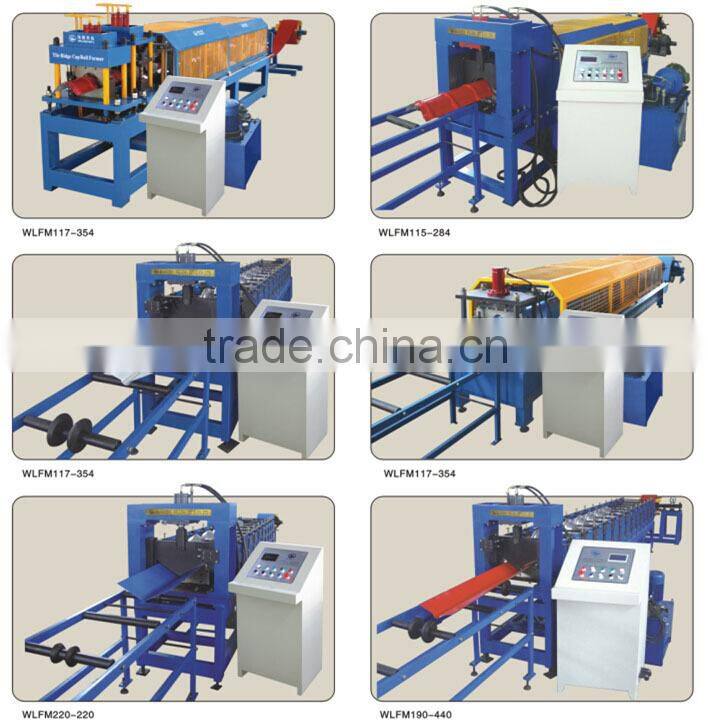

Product Show
