LT-298 27mhz cb Radio China AM/FM cb Radio

FOB Price

US$ 27 - 35 / Piece

500 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Features of 27mhz cb radio china AM/FM cb radio :

Technical Specifications of 27mhz cb radio china AM/FM cb radio:

GENERAL
Channels	40 AM/FM
Frequency range	25.615 - 28.305 MHz
Frequency control	P.L.L.
Operating temperature	-10°/+55°C
DC input voltage	13.8Vdc ±15%
Size	115 (L) x 38 (A) x 150 (P) mm
Weight	0.8 kg
RECEIVER
System	CPU controlled Double conversion super
IF	1° 10.7 MHz / 2° 450 KHz
Sensitivity	-120dBm for 12dB SINAD (FM)
Sensitivity	-107dBm for 12dB SINAD (AM)
Audio output	@10% THD 2.5W at 8 ohm
Audio distortion	<8% at 1 KHz
Image rejection	65dB
Adjacent channel	85dB
Signal ise ratio	45dB
Current drain	220mA (stand-by)
TRANSMITTER
System	CPU controlled P.L.L. synthesizer
Maximum RF power	4W at 13.8Vdc
Modulation	85% to 90% (AM)
	1.8 KHz ±0.2 KHz (FM)
ANT impedance	50 ohm unbalanced
Current drain	1000mA (at no modulation)

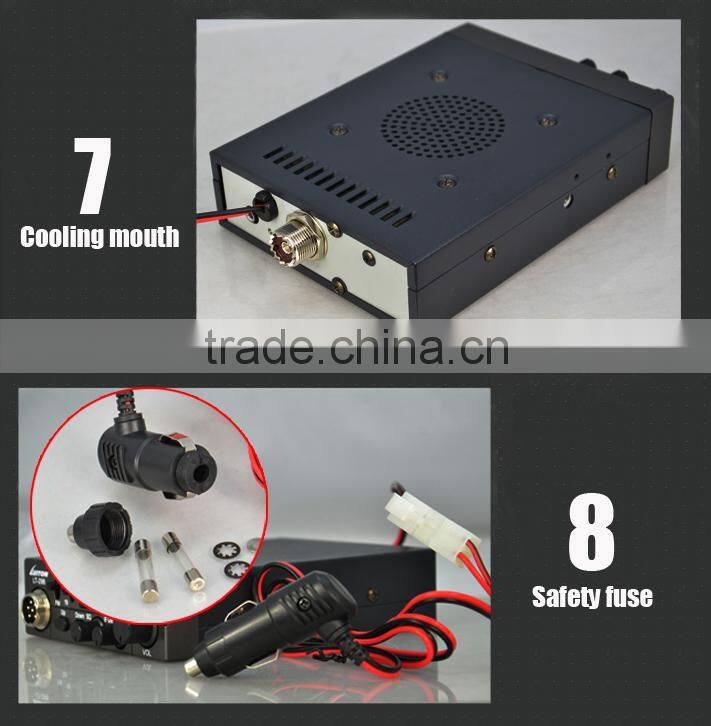

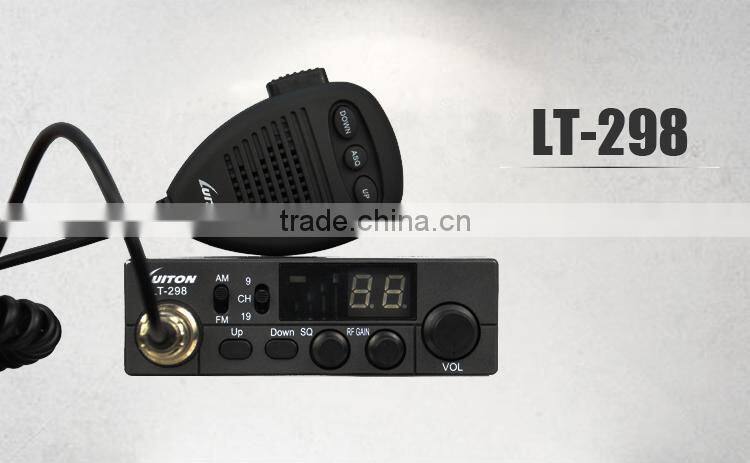

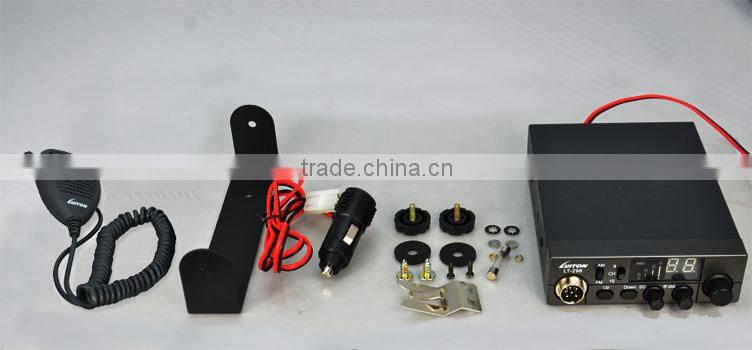

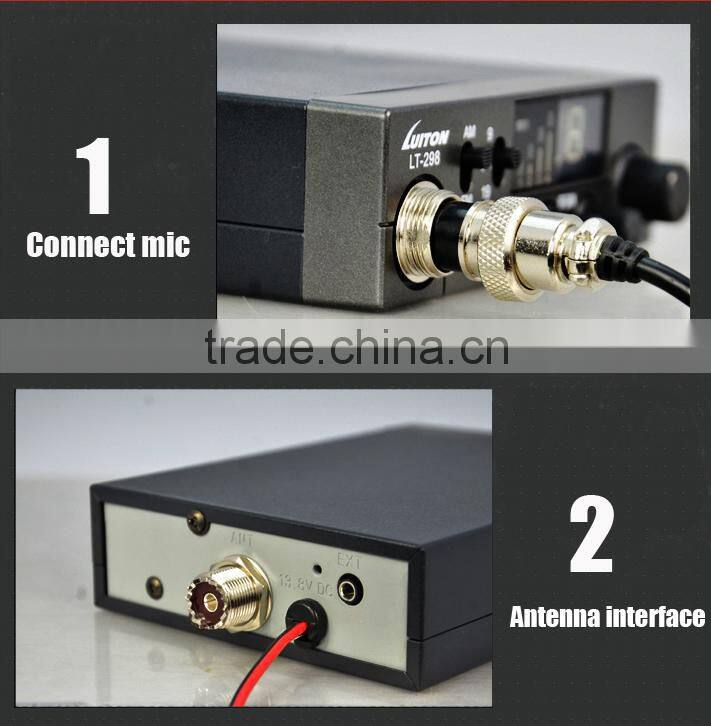

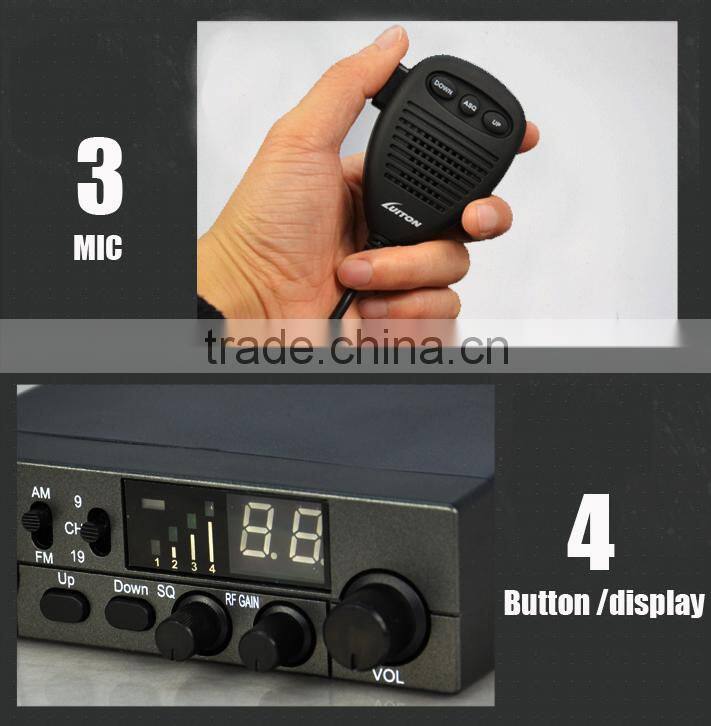

Photos of 27mhz cb radio china AM/FM cb radio :
