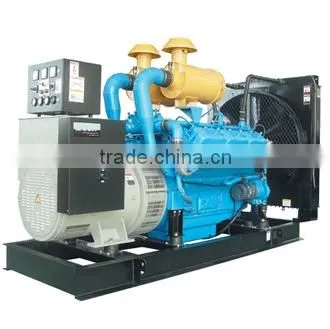

Shangchai Small Water Cooled Diesel Engine for Sale

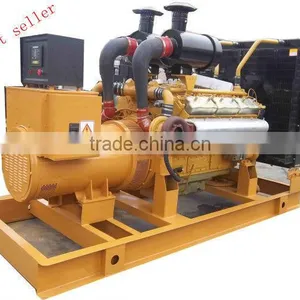

Shangchai Small Water Cooled Diesel Engine for Sale thumbnail-1
Shangchai Small Water Cooled Diesel Engine for Sale photo-1
US$ 2,000 - 200,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
Shandongweifang
Model Number:
DSM
Contact Supplier Request Quote Chat Now
Xiamen Huadong Machine Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
xiamen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Brand Name Shandongweifang
Model Number DSM
Output Type AC Three Phase
Speed 1500/1800rpm
Frequency 50hz
Rated Power 80kva
Rated Voltage 220v/380v 240v/415v
Rated Current 115.2A

Specifications

small water cooled diesel engine for sale
shangchai generator 4135AD
AC Stamford alternator
High performance with good

Shangchai small water cooled diesel engine for sale 80kva output power



 Shangchai generator features:
1. Genuine Shangchai diesel engine
2. Radiator 40°C max, fans are driven by belt, with safety guard
3. Genuine Leroy Somer, Stamford, Marathon, or Engga alternator
4. Choice of manual/auto and AMF control panels and protection systems
5. Digital auto-start panel
6. Anti Vibration Suspension Absorber
7. Dry type air filter, fuel filter, oil filter
8. 8-hour operation base tank
9. Mould case circuit breaker
10. 24V DC start motor and storage battery
11. 24V charge alternator
12. 24V batteries, rack and cable
13. Ripple flex exhaust pipe, exhaust siphon, flange, and muffler
14. Comply with ISO and CE standards
15. All generator sets are gone through rigorous testing before being released to the market place, including 50% load, 75% load, 100% load , 110% load,110% load and all protection function (over speed stop, high water temperature, low oil pressure, battery charging fail, emergency stop)



Genset data

Brand shangchai
Model 4135AD
Spare power 64KW/80KVA
Type four strokes, waste gas turbine boost,direct spurting type
Cooling way water cooling
With type Inline type
Bore*Stroke 135mm*150mm
Cylinder 4 cylinders
Displacement 8.6L
Lubricating Capacity 25L
Speed adjustment way mechanical speed
Rotating speed 1500r/min



Alternator Data

Excitation Mode:  Brushless and self- exciting
Number of phase and Access Act:  3-phase 4-wire
Connecting Type:  “Y” type connecting
Alternator Efficiencies:  95%
Overload:  (PRP)110% load can run 1h
Protection Level:  IP22-IP23
Insulation Class, Temperature Rise:  H/H
Telephone Influence Factor (TIF):  <50
THF:  <2%
Voltage Regulation, Steady State:  ≤±1%
Altitude:  ≤1000m



Genset Electrical Performance
Voltage Regulation:  ≥±5%
Voltage Regulation, Stead State:  ≤±1%
Sudden Voltage Warp(100% Sudden Reduce):  ≤+25%
Sudden Voltage Warp(Sudden Increase):  ≤-20%
Voltage Stable Time (100% Sudden Reduce):  ≤6S
Voltage Stable Time (Sudden Increase):  ≤6S
Frequency Regulation, Stead State:  ≤5%
Frequency Waving:  ≤1.5%
Sudden Frequency Warp(100% SuddenReduce):  ≤+12%
Sudden Frequency Warp(Sudden Increase):  ≤-10%
FrequencyRecoveryTime(100%SuddenReduce):  ≤5S
FrequencyRecoveryTime(Sudden Increase):  ≤5S





Shangchai small water cooled diesel engine for sale





The data of other shangchai generator set below:

Genset Model Prime power Standby power Engine model Fuel consumption Cylinder number Displacement Bore x Stroke Weight Size Current
DSS63 50 63 55 69 4135D-1 231.2 4L 8 135×140 1380 2300×800×1350 90
DSS80 64 80 70 88 4135AD 231.2 4L 8.6 135×150 1520 2250×800×1350 115.2
DSS94 75 94 83 104 4135AZD1 220 4L 8.6 135×150 1660 2350×800×1450 148
DSS94 75 94 83 104 6135D-3 229 6L 12 135×140 1860 2600×900×1400 148
DSS113 90 113 99 124 4135AZD 220 4L 8.6 135×150 1660 2370×800×1450 162
DSS125 100 125 110 138 4135AZD-2 220 4L 8.6 135×150 1660 2310×800×1450 180
DSS125 100 125 110 138 6135AD 231.2 6L 12.9 135×150 1900 2680×900×1400 180
DSS150 120 150 132 165 6135JZD 225.8 6L 12.9 135×140 2120 2670×1020×1690 216
DSS188 150 188 165 206 6135AZD-1 225.8 6L 12.9 135×150 2340 2670×1020×1690 270
DSS188 150 188 165 206 12V135D 231 12V 24 135×140 3000 3200×1350×1900 297
DSS225 180 225 198 248 G128ZLD 225 6L 12.9 135×150 2340 2860×1100×1600 324
DSS250 200 250 220 275 G128ZLD2 225 6L 12.9 135×150 2390 2860×1100×1600 360
DSS250 200 250 220 275 12V135AD 231 12V 25.8 135×150 3160 3250×1350×1900 397
DSS275 220 275 242 303 G128ZLD1 225 6L 12.9 135×150 2440 2860×1100×1600 396
DSS313 250 313 275 344 G128ZLD11 225 6L 12.9 135×150 2560 2860×1100×1600 450
DSS375 300 375 330 413 12V135AZD 220 12V 24 135×150 3460 3400×1350×1900 540
DSS400 320 400 352 440 12V135AZLD 210 12V 25.8 135×150 3980 3400×1350×1900 576
