Silent Diesel Soundproof Generator With Low Noise( Cummins, Deutz, Mitsubishi, Wuxi)

Silent Diesel Soundproof Generator With Low Noise( Cummins, Deutz, Mitsubishi, Wuxi) thumbnail-1
Silent Diesel Soundproof Generator With Low Noise( Cummins, Deutz, Mitsubishi, Wuxi) photo-1
US$ 4,000 - 20,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
Cummins,Deutz,Doosan,Volvo
Model Number:
DC,DW,DV,DD
Contact Supplier Request Quote Chat Now
Xiamen Huadong Machine Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
xiamen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Brand Name Cummins,Deutz,Doosan,Volvo
Model Number DC,DW,DV,DD
Output Type AC Three Phase
Speed 1500/1800
Frequency 50/60hz
Rated Power 120kva to 750kva
Rated Voltage 240v/380v/400v
Rated Current 288A

Specifications

1. Silent diesel soundproof generator
2. Brand: cummins, deutz, mitsubishi, wuxi
3. Low noise with silent box
4. CE & ISO

silent diesel soundproof generator with Low noise



High Performance

1. Fuel tank supports the genset running for 8 hours.



2. Multi-way air intake and exhaust guarantee the power performance of genset.



3. Internal high performance rubber damper and flexible materials reduce vibration.



4. large-scale impedance combined type silencer effectively reduce noise of the genset.



Electrical Specifications of diesel generator

1) Power Factor: 0.8 Lagging



2) 3 Phase 4 Wire



3) Insulation: Class H



4) Brushless



5) Self-Excited



6) IP22 Protection



7) AVR regulation



8) Starting by Battery


Special Specifications of soundproof generator

1. Frequency: 50/60Hz



2. 3 Phase 4 Wire



3. Speed: 1500/1800rpm



4. Three Phase Voltage Available: 208V / 220V / 230V / 240V / 380V / 390V / 400V / 415V / 440V / 460V / 480V



Single Phase Voltage Available: 100-250V


Soundproof Generator Set Features:
A new kind of acoustic material is used as pugging, noise reducing
return-flow wind tunnel is used as generator set's ventilation system,
and louver is installed in the window to prevent rains and other intruders. High
efficiency silencer with double level structure and another silencer between two
levels keep the noise at the lowest level. The box is modular structure with indicator
and maintenance doors which make installation, operation and maintenance
very convenient. Benefited from the special design, medium low noise diesel generator
set's noise can be as low as 70dB (A) (at LP7m). Fuel tank can be installed
on it according to customer needs.

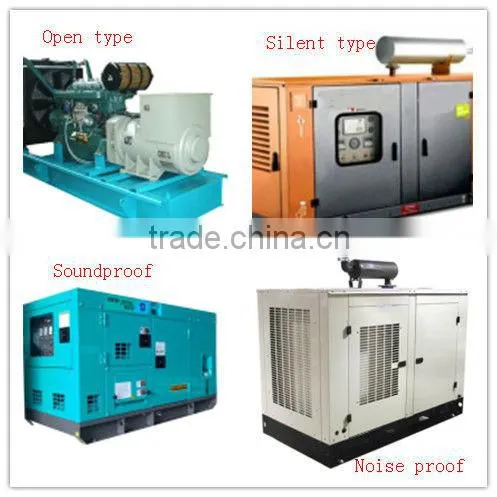

silent diesel soundproof generator with Low noise( cummins, deutz, mitsubishi, wuxi)

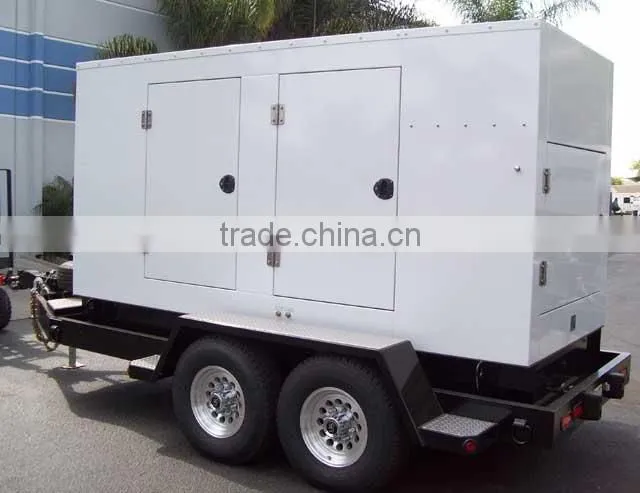

Trailer generator

silent diesel soundproof generator with Low noise( cummins, deutz, mitsubishi, wuxi)



Wuxi diesel wandi generator genset technical data

Genset model Prime power Standby power Engine model Fuel consumption g/kwh Cylinder Displacement(L) Bore*stroke(mm) Weight(kg) Dimension(mm)
kw kva kw kva
DSH30 24 30 26 33 D226B-3D 208 3L 3.12 105×120 700 1700×600×1450
DSH38 30 38 33 41 TD226B-3D 208 3L 3.12 105×120 760 1700×600×1450
DSH50 40 50 44 55 TD226B-3D 208 3L 3.12 105×120 800 1700×600×1450
DSH63 50 63 55 69 TD226B-4D 208 4L 4.16 105×120 950 2280×600×1450
DSH100 80 100 88 110 TD226B-6D 208 6L 6.23 105×120 1350 2400×800×1600
DSH125 100 125 110 138 TBD226B-6D 205 6L 6.23 105×120 1550 2460×798×1653
DSH150 120 150 132 165 TBD226B-6D5 205 6L 6.23 105×120 1380 2500×800×1600
DSH200 160 200 176 220 TBD234V6M 198 6V 10.8 128×140 2350 2710×1130×1710
DSH250 200 250 220 275 TBD234V6E 198 6V 10.8 128×140 2350 2710×1130×1710
DSH275 220 275 242 303 TBD234V8R 198 6V 10.8 128×140 2500 2920×1120×1900
DSH313 250 313 275 344 TBD234V8U 196 8V 14.4 128×140 3250 2930×1120×1900
DSH400 320 400 352 440 TBD236V8 203 8V 15.3 132×140 3400 2930×1120×1900
DSH438 350 438 385 481 TBD234V12 196 12V 21.6 128×140 4900 4170×1320×2015
DSH500 400 500 440 550 TBD234V12 196 12V 21.6 128×140 5300 4170×1320×2015
DSH625 500 625 550 688 TBD604BL6 191 6L 26.56 170×195 5500 4470×1505×2156
DSH750 600 750 660 825 TBD620L6 203 6L 26.58 170×195 6500 4700×1505×2038
DSH1000 800 1000 880 1100 TBD620V8 193 8V 35.41 170×195 8500 4830×1716×2316
DSH1250 1000 1250 1100 1375 TBD620V8 187 12V 53.11 170×195 10500 5310×1716×2316
DSH1500 1200 1500 1320 1650 TBD620V12 187 12V 53.11 170×195 10650 5310×1716×2300
DSH1875 1500 1875 1650 2063 TBD620V16 265 16V 70.88 170×195 14370 6100×1750×2300
