Home > Industrial Equipment & Components > Power & Generating Sets > Diesel Generator > Price of 1000kva Diesel Generator of Jichai Brand
Price of 1000kva Diesel Generator of Jichai Brand
US$ 5,000 - 200,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
Jichai
Model Number:
DSJ600
Payment & Shipping
Payment Methods:
Port of Shipment:
xiamen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Wholesale 450kva Doosan Diesel GeneratorUS$ 2,000 - 50,000MOQ: 1 Set -
Easy Operation 34kva Weichai Diesel GeneratorUS$ 2,000 - 50,000MOQ: 1 Set
-
Factory Supply MTU 1600kva Diesel GeneratorNegotiableMOQ: 1 Set
-
Good Power700kva Doosan Diesel GeneratorUS$ 2,000 - 50,000MOQ: 1 Set
-
Simple to Use 125kva Doosan Diesel GeneratorUS$ 2,000 - 50,000MOQ: 1 Set
Place of Origin
Fujian, China
Brand Name
Jichai
Model Number
DSJ600
Output Type
AC Three Phase
Speed
1500rpm
Frequency
50hz
Rated Power
800kw/1000kva
Rated Voltage
230/415v
Rated Current
230/415v
Specifications
price of 1000kva diesel generatorJichai Chinese brand
Good power output and durable
Best skill and easy to buy spare part
price of 1000kva diesel generator of jichai brand
Standard configuration Brief:
>ENGINE:Ji Chai (Ji Chai Engine Co.Ltd.)
>ALTERNATOR:Leroy somer, Stamford, Marathon or Chinese local brands(option)
>single bearing alternator IP23, insulation class H/H;
>Radiator 50 centigrade max, fans are driven by belt, with safety guard;
>Controller: Deepsea, Woodward, Comap, Smartgen(option);
>Dry type air filter, fuel filter, oil filter, coolant filter;
>12/24V D.C. to start the motor and charge alternator;
>Breaker: MCCB, Acb;
>Starter battery (with lead acid) including Rack and Cables;
>Fuel connection hoses;
>Ripple flex exhaust pipe, exhaust siphon, flange, Industrial capacity exhaust silencer;
>Steel chassis and efficient shock absorber;
>Operation manuals and circuit diagram documents.
The parameter of jichai diesel generator
| Model : | DS1000 |
| Standby Output Power(KVA/KW): | 1100/880 |
| Nominal Output Power(KVA/KW): | 1000/800 |
| Output voltage(V): | 400/230 |
| Oil Consumption(L/H): | 195 |
| Engine Model: | Z12V190B |
| No.of Cylinder: | 12 |
| Bore(mm): | 190 |
| Stroke(mm): | 210 |
| Volume(L): | 71.45 |
| Exhaust Gas Highest Temperature(m3/Min): | 450 |
| Lubrication Oil Capacity(L): | 160 |
| Cooling Water Capacity(L): | 200 |
| Starting Cell Voltage(V): | 24 |
| Max.Output Power(KW): | 970 |
| Speed Adjustor: | Mechanical /Electrical |
| L×W×H(mm): | 5590×1740×2690 |
| Weight(Kg): | 13900 |
| Noise db(A): | ≤105 |
Alternator data
| Brand / Model | Leroy somer, Stamford or Marathon |
| Number of Phase | 3 |
| Connecting Type | 3 Phase and 4 Wires, “Y” type connecting |
| Amount of Bearing | 1 |
| Power Factor | 0.8 |
| Protection Grade | IP23 |
| Altitude | ≤1000m |
| Rated Hz/RPM | 50Hz/1500rpm |
| Exciter Type | Brushless, self-exciting |
| Voltage control mode | AVR(Automatic Voltage Regulator) |
| Insulation Class, Temperature Rise | H/H |
| Radio interference | Meet the BS800 and VDE G,N |
| Telephone Influence Factor (TIF) | <50 |
| Telephone harmonic Factor (THF) | <2% |
| Steady Voltage adjustment rate | ≤±1% |
| Generator Capacity | 480KW/600KVA |
| Generator Efficiencies | 95.10% |
| Standard Temperature Rise | 125 -163°C Continuous |
| Cooling method | Direct drive centrifugal blower fan |
| Air Cooling Flow | 1.1 m³/s |

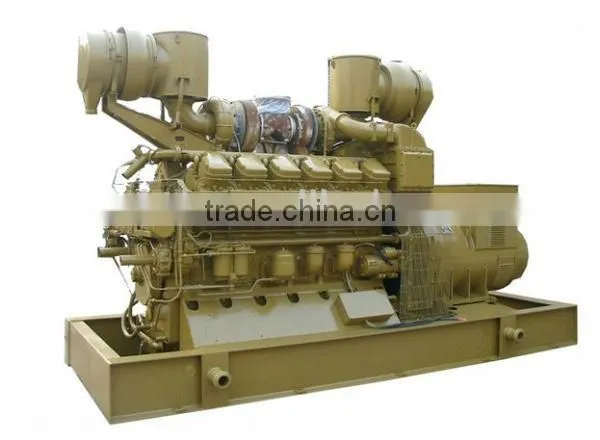

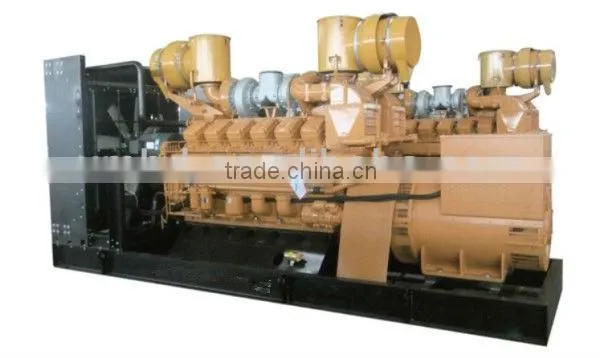

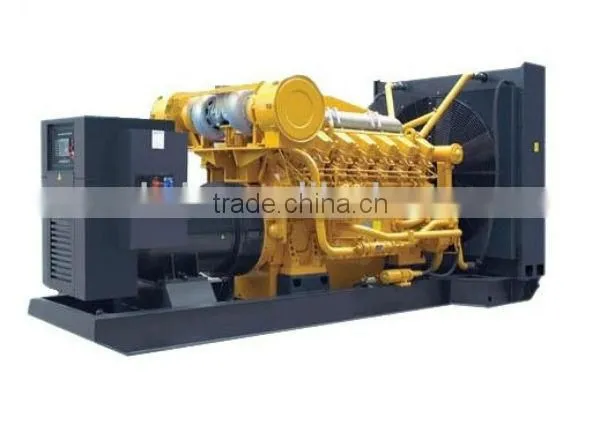

Jichai genset pictures
