Specifications
25kva diesel generator prices in dubaiWeichai engine for land use
Low fuel consumption
Factory price with CE & ISO approv
Weichai 25kva diesel generator prices in dubai sale with OEM 50hz 380 voltage 63kva 253kva
Generator Model .......................................Weichai generator series
Frequency/Speed........................................50Hz/1500rpm, 60Hz/1800rpm
Voltage......................................................110/220,220/380,230/400
240/415, 254/440V
Rated Power..............................................63Kva-253Kva
Standby Power...........................................69 Kva-278 Kva
Phase.................................................... ....3 Phase and four wires
Fuel Tank Capacity.....................................8-12 hours fuel tank
Sound Level...............................................60dB to 85dB at 7 meter
Alternator...................................................HWN alternator, Stamford, Leroy Somer,
Mathron, Engga or others

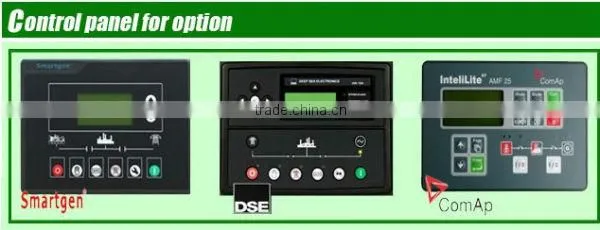

Optional Brand: Smartgen,Deepsea,Comap
It includes the following:
1. Automatic cutter which is suitable for the generator power
2.Turn on key
3.A device to measure the generators speed
4.Counter for measuring the Operating hours
5.Device to measure the current overload with a switched current
6.A device to measure the battery voltage
7.Voltmeter with a voltage exchanger
8.A device to measure the frequency
9.Thermostat to regulate the voltage
10.A device to measure the oil pressure
11.Alerting lamps indicating low and high temperature
12.Controller of the current increase and short circuit
13.Emergency stop button
ATS means Automatic Transfer Switch, when the city power supply failure, the genset will be running
automatically within few minutes. on the contrary, when the city power recovered, the genset will stop
running automatic by itself within few minutes.
Weichai generator specification--Deutz series
| 3P 4W | Diesel Engine | Alternator | Overall Size (mm) | Weight (kg) |
| Rated Power (kW/kVA) | Model | Model | ||
| 16/20 | D226B-3D | PI144D | 1600X600X1350 | 650 |
| 20/25 | D226B-3D | PI144E | 1600X600X1350 | 660 |
| 22/28 | D226B-3D | PI144F | 1600X600X1350 | 680 |
| 24/30 | D226B-3D | PI144G | 1650X650X1400 | 700 |
| 28/35 | TD226B-3D | PI144H | 1650X650X1400 | 700 |
| 32/40 | TD226B-3D | PI144J | 1650X650X1400 | 700 |
| 34/43 | TD226B-3D | PI144K | 1650X650X1400 | 750 |
| 40/50 | TD226B-3D | UCI 224D | 1900X650X1400 | 800 |
| 48/60 | TD226B-4D | UCI 224E | 2700x820x1500 | 1000 |
| 58/73 | TD226B-6D | UCI 224F | 2700x820x1500 | 1000 |
| 68/85 | TD226B-6D | UCI 224G | 2700x820x1500 | 1300 |
| 80/100 | TD226B-6D | UCI 274C | 2700x820x1500 | 1300 |
| 96/120 | TBD226B-6D | UCI 274D | 2700x820x1500 | 1300 |
| 112/140 | TBD226B-6D5 | UCI 274E | 2800X850X1550 | 1350 |
| 128/160 | TBD226B-6D5 | UCI 274F | 2850X900X1600 | 1380 |
| 145/181 | BF6M1013EC | UCI274G | 2900X945X1750 | 1420 |
| 160/200 | BF6M1013FCG2 | UCI274H | 3100X1190X1890 | 1700 |
| 184/230 | BF6M1013FCG3 | UCI274J | 3250X1190*1900 | 1800 |
Technical specifications of Generator set:
Model: DW63
Power factor COSΦ=1.0 (lag)
Rated Output voltage: 220V
Rated current: 90A
Rated frequency: 60HZ
Rated speed: 1800rpm
Fuel consumption (100%loaded): ≤215g/kW•h
Fuel grade: (standard) 0# light diesel oil (normal temperature)
Outside measurement: 1750×670×1050(L×W×H mm)
Unit weight: 650kg
Specifications of Diesel engine
Brand name/ place of origin: Shangdong Diesel engine / ShangDong weifang
Model: K4100D
Power (kw): 30.1kw
Number of cylinders/shaft 4/L-type
Bore stroke: 100×115 mm
Rotation speed: 1800rpm
start-up modes: electric mode ——DC12V
Cooling method: closed water circulation cooling system
Modes: inline, Verticle Type, water-cool, four stroke
Speed adjusting mode: mechanical
Air intake mode: (NA) naturally aspirated
minimum specific fuel consumption: (g/kw.h):≤215
Total displacement (L): 3.61
Standard configuration for generator:
Ø Direct injection internal combustion engines (diesel)
Ø AC synchronous generator (single-bearing)
Ø radiator tanks suitable for 40°C-50°C environment, Belt drive cooling fan, safety protector for fan.
Ø Power generated air switch, standard controller panel;
Weifang diesel generator sale
