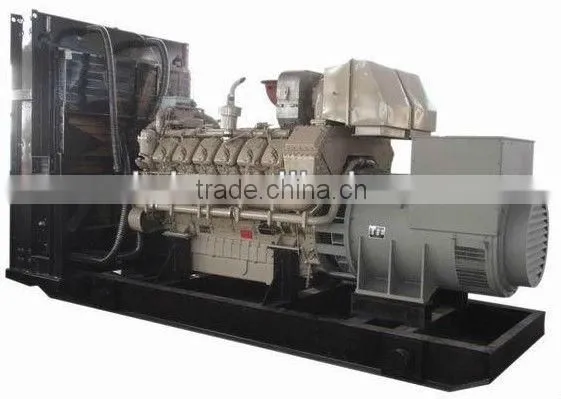

Silent Generator Price for Sale of 250kw Deutz Diesel Engine(TBD234V8U)
US$ 6,000 - 100,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
Deutz
Model Number:
TBD234V8U
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Cummins Soundproof Generators Diesel in Dubai With 4-cylinder-in-line SaleUS$ 1,200 - 21,000MOQ: 1 Set -
Famous Brand Volvo Penta Part in Diesel Generator Set 500kwUS$ 5,000 - 200,000MOQ: 1 Set
-
Cummins Silent Diesel Generator Diesel for SaleUS$ 5,000 - 20,000MOQ: 1 Set
-
Weichai 25kva Diesel Generator Prices in Dubai Sale With OEMUS$ 2,000 - 50,000MOQ: 1 Set
-
Shangchai Small Water Cooled Diesel Engine for SaleUS$ 2,000 - 200,000MOQ: 1 Set
Place of Origin
Fujian, China
Brand Name
Deutz
Model Number
TBD234V8U
Output Type
AC Three Phase
Speed
1500rpm
Frequency
50hz
Rated Power
250kw/313kva
Rated Voltage
220/380v
Rated Current
450A
Specifications
250kw silent generator price for sale8-cylinder-in-vee
Global guarantee with high quality
ISO & CE
Model: TBD234V8U
silent generator price for sale of 250kw deutz diesel engine(TBD234V8U)
Specification of diesel engine:
| Generator-set | Diesel Engine (DEUTZ) | ||
| Model | DSH313 | Model | TBD234V8U |
| Rated power | 250KW | Prime power | 250KW |
| Max. power | 250KW | Stand power | 300KW |
| Rated voltage | 400/230V | Rated speed | 1500rpm |
| Rated frequency | 50Hz | No. of Cylinder | 8 |
| Rated currency | 450A | Bore/stroke(mm) | 128/140 |
| Power factor | 0.8 | Cylinder arrangement | V |
| Steady state volt deviation | ≤±1% | Fuel consumption | 196g/kwh |
| Steady state frequency | ≤1.5% | Start mode | 24V electrical |
| Frequency drop scope | ≤5% | Governor | electronic |
| Phase | Three phase four wire | Aspiration type | Turbocharged inter-cooled |
| Base Frame | steel | Cooling way | Water cooled |
| Dimension(mm) | 2930*1120*1900 | Displacement(L) | 14.4 |
| Weight(kg) | 3250 | ||
Standard scope of supply:
Generator-set assembly (diesel engine, alternator, air filter, oil filter, fuel filter, silencer elbow, battery, Connection lines, circuit breaker, bracket)
Option:
base oil tank, independent oil tank, Assistant starting system when low temperature, Intelligent control system (including Weidian, Comap, Deep sea, etc). Different alternator brands are available.
Control system function: start and stop function.
Panel: voltage, current, frequency, power factor, power, oil pressure, battery voltage, start times, gen-set running hours, temperature, etc.
Failure protection (alarm and stop) function: over speed/speed signal loss alarm, low oil pressure alarm, high cylinder temperature stop

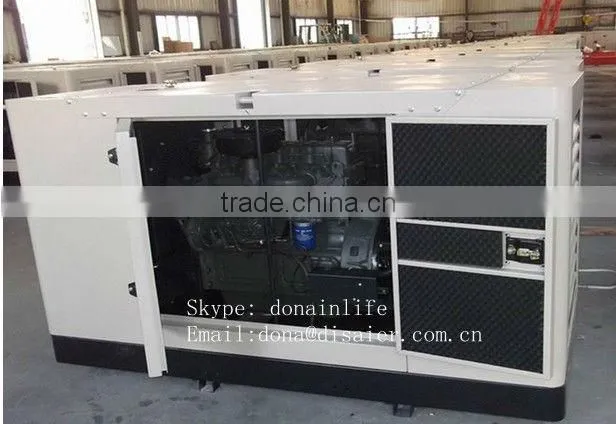

Silent type deutz generator
Controller: deepsea and smartgen
24kw to 1500kw Deutz diesel generator data are listed in the following
| Genset model | Prime power | Standby power | Engine model | Fuel consumption g/kwh | Cylinder | Displacement(L) | Bore*stroke(mm) | Weight(kg) | ||
| kw | kva | kw | kva | |||||||
| DSH30 | 24 | 30 | 26 | 33 | D226B-3D | 208 | 3L | 3.12 | 105×120 | 700 |
| DSH38 | 30 | 38 | 33 | 41 | TD226B-3D | 208 | 3L | 3.12 | 105×120 | 760 |
| DSH50 | 40 | 50 | 44 | 55 | TD226B-3D | 208 | 3L | 3.12 | 105×120 | 800 |
| DSH63 | 50 | 63 | 55 | 69 | TD226B-4D | 208 | 4L | 4.16 | 105×120 | 950 |
| DSH100 | 80 | 100 | 88 | 110 | TD226B-6D | 208 | 6L | 6.23 | 105×120 | 1350 |
| DSH125 | 100 | 125 | 110 | 138 | TBD226B-6D | 205 | 6L | 6.23 | 105×120 | 1550 |
| DSH150 | 120 | 150 | 132 | 165 | TBD226B-6D5 | 205 | 6L | 6.23 | 105×120 | 1380 |
| DSH200 | 160 | 200 | 176 | 220 | TBD234V6M | 198 | 6V | 10.8 | 128×140 | 2350 |
| DSH250 | 200 | 250 | 220 | 275 | TBD234V6E | 198 | 6V | 10.8 | 128×140 | 2350 |
| DSH275 | 220 | 275 | 242 | 303 | TBD234V8R | 198 | 6V | 10.8 | 128×140 | 2500 |
| DSH313 | 250 | 313 | 275 | 344 | TBD234V8U | 196 | 8V | 14.4 | 128×140 | 3250 |
| DSH400 | 320 | 400 | 352 | 440 | TBD236V8 | 203 | 8V | 15.3 | 132×140 | 3400 |
| DSH438 | 350 | 438 | 385 | 481 | TBD234V12 | 196 | 12V | 21.6 | 128×140 | 4900 |
| DSH500 | 400 | 500 | 440 | 550 | TBD234V12 | 196 | 12V | 21.6 | 128×140 | 5300 |
| DSH625 | 500 | 625 | 550 | 688 | TBD604BL6 | 191 | 6L | 26.56 | 170×195 | 5500 |
| DSH750 | 600 | 750 | 660 | 825 | TBD620L6 | 203 | 6L | 26.58 | 170×195 | 6500 |
| DSH1000 | 800 | 1000 | 880 | 1100 | TBD620V8 | 193 | 8V | 35.41 | 170×195 | 8500 |
| DSH1250 | 1000 | 1250 | 1100 | 1375 | TBD620V8 | 187 | 12V | 53.11 | 170×195 | 10500 |
| DSH1500 | 1200 | 1500 | 1320 | 1650 | TBD620V12 | 187 | 12V | 53.11 | 170×195 | 10650 |
| DSH1875 | 1500 | 1875 | 1650 | 2063 | TBD620V16 | 265 | 16V | 70.88 | 170×195 | 14370 |
