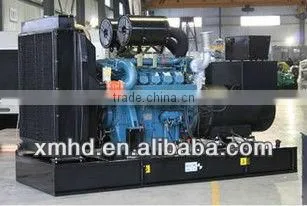

200kva 275kva 400kva Doosan Daewoo Diesel Engine Open Type With Auto Control Panel

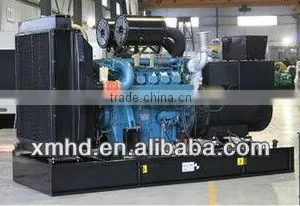

200kva 275kva 400kva Doosan Daewoo Diesel Engine Open Type With Auto Control Panel thumbnail-1
200kva 275kva 400kva Doosan Daewoo Diesel Engine Open Type With Auto Control Panel photo-1
US$ 5,300 - 9,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
Doosan daewoo
Model Number:
DSD
Contact Supplier Request Quote Chat Now
Xiamen Huadong Machine Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Brand Name Doosan daewoo
Model Number DSD
Output Type AC Three Phase
Speed 1500rpm/1800rpm
Frequency 50hz/60hz
Rated Power 200kva 275kva 400kva
Rated Voltage 220v/400v
Rated Current 72A 396A 576A

Specifications

Doosan Diesel generator with 200kva
P086T1, P126T1, P158LE daewoo marine engine
High performance with Leroy somer
4 pole

200kva 275kva 400kva doosan generator open type with auto control panel



Diesel engine:doosan engine
1. Multi-cylinder in-line or veer engine. 4-stroke, direct injection
2. Governer Method:electrical or mechanical governor
3.  Water cooling
4. Intake method:Natural apirated or turbocharged
5. Electric motor starting system



Alternator: Stamford, LeroySomer, Marathon, Engga
a) Brushless, 4 poles, rotation magnet
b) IP21-23(NEMA1) enclose is standard for all industrial alternators
c) H class insulation system
d) AVR self-regulated, voltage regulation rate: ≤±1%
e) Wide range of flange adaptors and single bearing disc coupling
f) Radio interference restraining accords with the stipulation of VDE0875-N and ISO8528
g) Moisture proof, sand-proof, dustproof, salt-proof and vibration-proof

Control plane:
a) Automatic alarm system: the unit has the acoustic-optics alarm system and arrestor for any situation as the start defeat, the water is over temperature the oil pulls down, over speed, over load and over current
b) Operation display:
  i) Unit voltage, tri-phase load current and frequency display
  ii) Water temperature, oil pressure display
  iii) Fuel level, fuel temperature dieplay
  iv) Audible and visual alarm lamps and buzzers

c) Emergency stop button
d) Three protection



Doosan Daewoo diesel generator data parameter

Genset model Prime power Standby power Engine model At full load consumption cylinder Displacement(L) Bore*stroke(mm) Weight(Kg)
KW KVA KW KVA
DSD60 48 60 53 66 DB58 213 6L 5.785 102×110 820
DSD88 70 88 77 96 D1146 222 6L 8.071 111×139 1050
DSD125 100 125 110 138 D1146T 200 6L 8.071 111×139 1160
DSD169 135 169 149 186 P086TI-1 202 6L 8.071 111×139 1750
DSD200 160 200 176 220 P086TI 202 6L 8.071 111×139 1750
DSD275 220 275 242 303 P126TI 200 6L 11.05 123×155 1950
DSD313 250 313 275 344 P126TI-II 202 6L 11.05 126×155 2100
DSD375 300 375 330 413 P158LE-1 202 8V 14.62 128×142 2400
DSD400 320 400 352 440 P158LE 202 8V 14.62 128×142 2550
DSD450 360 450 396 495 P158LE-S 209 8V 14.62 128×142 2750
DSD450 360 450 396 495 P158FE 203 8V 14.62 128×142 3000
DSD450 360 450 396 495 P180LE-1 205 10V 18.27 128×142 3000
DSD500 400 500 440 550 P180LE 205 10V 18.27 128×142 3000
DSD500 400 500 440 550 P180LE-S 205 10V 18.27 128×142 3000
DSD500 400 500 440 550 P180FE 205 10V 18.27 128×142 3200
DSD575 460 575 506 633 P222LE-1 209 12V 21.93 128×142 3550
DSD625 500 625 550 688 P222LE 209 12V 21.93 128×142 3600
DSD625 500 625 550 688 P222LE-S 202 12V 21.93 128×142 3800
DSD650 520 650 572 715 P222FE 200 12V 21.93 128×142 3800
DSD700 560 700 616 770 P222LE-II 200 12V 21.93 128×142 4000



200kva 275kva 400kva doosan daewoo diesel engine open type with auto control panel

200kva 275kva 400kva doosan daewoo diesel engine open type with auto control panel

200kva 275kva 400kva doosan daewoo diesel engine open type with auto control panel

200kva 275kva 400kva doosan daewoo diesel engine open type with auto control panel
