Used Engines for Sale in Japan of Mitsubishi With Stamford Alternator
US$ 4,100 - 15,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
Mitsubishi
Model Number:
DS1500
Payment & Shipping
Payment Methods:
Port of Shipment:
xiamen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Diesel Generators Prices With Shangchai Used Marine Diesel EngineUS$ 2,000 - 200,000MOQ: 1 Set -
Yuchai Diesel Electric Generator 30kw to 600kw Sale With OEM PriceUS$ 8,000 - 23,000MOQ: 1 Set
-
Deutz Diesel Generator Best Price Diesel Engine for SaleUS$ 6,000 - 100,000MOQ: 1 Set
-
Used Generator of Japan Mitsubishi Engine 300kw S6B3-PTAUS$ 4,100 - 150,000MOQ: 1 Set
-
2014 Hot Sale! 10-2000kva Different Brand Silent Diesel Generator With CE,ISOUS$ 120,000 - 123,000MOQ: 1 Set
Place of Origin
Fujian, China
Brand Name
Mitsubishi
Model Number
DS1500
Output Type
AC Three Phase
Speed
1500rpm/1800rpm
Frequency
50/60hz
Rated Power
500KW/ 625KVA
Rated Voltage
230v/415v(optional)
Rated Current
900A
Specifications
Specifications1. used engines for sale in japan2. Good reputation of Mitsubishi
3. Good output power range
4. 1200kw/1500
used engines for sale in japan of Mitsubishi with stamford
Alternator Mitsubishi engine specification 1500rpm
| Manufacturer | Mitsubishi |
| Model | S12R-PTAA2 |
| No. of cylinders and build | 4 Cycle; 12V Cylinder Diesel |
| Aspiration and cooling | Turbo-Charged, After Cooler |
| Bore/stroke(mm) | 170/180 |
| Compress the ratio | 13.5:1 |
| Cooling system | Water-cooled |
| Engine speed/frequency | 1500rpm/50hz |
| Cooland capacity | 317L |
| Starting system | electric 24 volt DC |
| Displacement | 49.03L |
| Lubricant system capacity | 180L |
| Governing type | Electrical |
| Air filter | Dry |
Alternator technical specifications:
| Brand | Leroy-somer Stamford |
| Model | LSA50.2L8 PI734C |
| Exciter system | Self-excited,brushless |
| Poles | 4 |
| Cooling fan | Cast alloy aluminum |
| Bearing | single, double shielded |
| Windings | 100% copper |
| Connection type | reconnectable |
| Insulation class | H |
| Pitch | 2/3 |
| Amortisseur winding | full |
| Voltage regulator | A.V.R. (Electronic) |
| Steady voltage precision | Standard |
| Protection | IP23 |

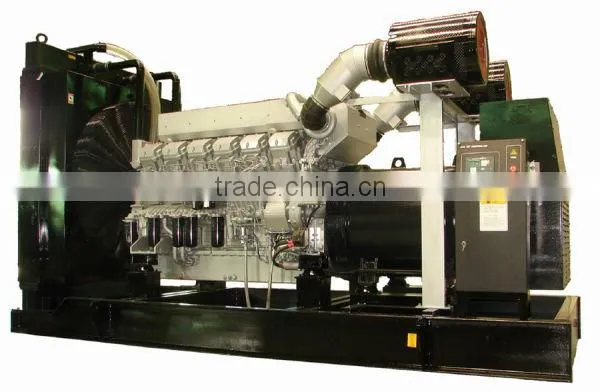

Mitsubishi genset sale
Brushless Leroy-somer alternator

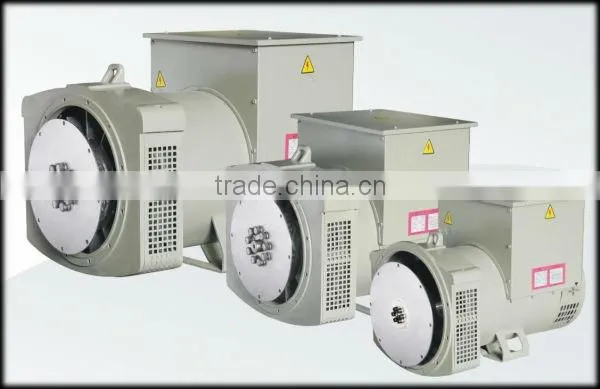

Brushless stamford alternator
Smartgen controller
Protection Circuits
1. Warning
2. Battery charge failure
3. Low battery voltage
4. SHUT DOWNS
5. Fail to start
6. Emergency stop
7. Low oil pressure
8. High engine temperature
9. Over /Under speed
10. Under/over generator frequency
Parameter:
1. Engine
2. Oil pressure
3. Coolant temperature
4. Run time
5. Battery volts
6. TOR
7. Voltage (L-N)
8. Current (L1-L2-L3)
9. Frequency
10. MAINS
11. Voltage (L-L, L-N)
Mitsubishi generator technical data
| Getset model | Primer power | Standby power | Engine model | Fuel consumption (g/kwh) | Cylinder | Displacement(L) | Bore*stroke(mm) | Weight(kg) | ||
| KW | KVA | KW | KVA | |||||||
| DSM375 | 300 | 375 | 330 | 413 | S6B3-PTA | 211 | 6L | 14.6 | 135×170 | 2800 |
| DSM450 | 360 | 450 | 396 | 495 | S6A3-PTA | 213 | 6L | 18.56 | 150×175 | 3500 |
| DSM500 | 400 | 500 | 440 | 550 | S6A3-PTAA | 213 | 6L | 18.56 | 150×175 | 3800 |
| DSM625 | 500 | 625 | 550 | 688 | S6R-PTA | 206 | 6L | 24.51 | 170×180 | 4890 |
| DSM675 | 540 | 675 | 594 | 743 | S6R2-PTA | 205 | 6L | 29.96 | 170×220 | 5100 |
| DSM750 | 600 | 750 | 660 | 825 | S6R2-PTAA | 211 | 6L | 29.96 | 170×220 | 5580 |
| DSM800 | 640 | 800 | 704 | 880 | S12A2-PTA | 214 | 12V | 33.93 | 150×160 | 6200 |
| DSM938 | 750 | 938 | 825 | 1031 | S12H-PTA | 205 | 12V | 37.11 | 150×175 | 7820 |
| DSM1063 | 850 | 1063 | 935 | 1169 | S12H-PTA | 206 | 12V | 37.11 | 150×175 | 8160 |
| DSM1275 | 1020 | 1275 | 1122 | 1403 | S12R-PTA | 205 | 12V | 49.03 | 170×180 | 9370 |
| DSM1375 | 1100 | 1375 | 1210 | 1513 | S12R-PTA2 | 205 | 12V | 49.03 | 170×180 | 10480 |
| DSM1500 | 1200 | 1500 | 1320 | 1650 | S12R-PTAA2 | 205 | 12V | 49.03 | 170×180 | 11450 |
| DSM1750 | 1400 | 1750 | 1540 | 1925 | S16R-PTA | 207 | 16V | 65.37 | 170×180 | 12300 |
| DSM1875 | 1500 | 1875 | 1650 | 2063 | S16R-PTA2 | 207 | 16V | 65.37 | 170×180 | 12540 |
| DSM2000 | 1600 | 2000 | 1760 | 2200 | S16R-PTAA2 | 207 | 16V | 65.37 | 170×180 | 14500 |
Our advantages:
1. Good after-sale-service
2. Advanced technology
3. Professional engineer
4. Quickly- feedback
