2014 Hot Sale! 10-2000kva Different Brand Silent Diesel Generator With CE,ISO

Name: 2014 Hot Sale! 10-2000kva Different Brand Silent Diesel Generator With CE,ISO
Brand: DC1000
SKU: 114539079

US$ 120,000 - 123,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Fujian, China

Brand Name:

DC1000

Model Number:

KTA38-G9Cummins

Xiamen Huadong Machine Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

xiamen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Fujian, China

Brand Name DC1000

Model Number KTA38-G9Cummins

Output Type AC Three Phase

Speed 1500/1800rmp

Frequency 50hz/60hz

Rated Power 1000kw

Rated Voltage 220V/400V

Rated Current 1800A

Specifications

Specifications1.KTA38-G9Cummins diesel generator
2.Cummins OEM
3.CE & ISO9001:2008
4.12 months warranty
5.Reliable quali

Technical data
Genset Model	DC1000GF
Prime Power	1000KW
Rated Voltage	400/230V
Frequency	50Hz
Power Factor	0.8(lagging)
Dimension (L×W×H) (mm)	4500×1900×2450
Genset weight (kg)	9350
Diesel Engine
Brand	Cummins
Model	KTA38-G9
Number of Cylinders	12
Rotating Speed	1500RPM
Cylinder Arrangement	60º Vee form
Cycle	Four stroke
Aspiration	Turbocharged after water-cooled
Bore×Stroke(mm)	159 x 159
Displacement(L)	37.8
Compression Ratio	13.9:1
Speed Governor	Electrical
Cooling System	Water-cooled
Speed Stability (%)	≤5%
Total Lubrication System Capacity (L)	135
Fuel Consumption at 100% Load	201.8g/kwh
Starting Method	DC24V Electrical starting

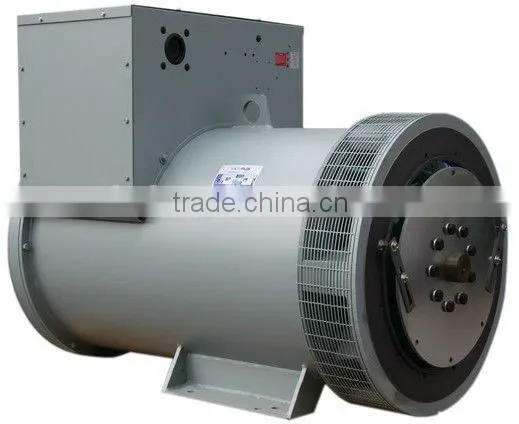

Alternator
Brand	Engga
Model	EG400L-900N
Number of Phase	3
Connecting Type	3 Phase and 4 Wires
Number of Bearing	1
Protection Grade	IP23
Altitude	≤1000m
Exciter Type	Brushless ,Self-exciting, AVR automatic voltage regulating
Insulation Class	H
Telephone Influence Factor (TIF)	≤50
THF	≤2%
Voltage Regulation, Steady State	≤±1%
Transient State Voltage	≤-15%~+20%
The components of the genset
(1) Cummins Diesel Engine; (2)Engga Alternator; (3) Control Panel
Control Panel (harsen brand or by your choice)
The control panel is AMF control panel, with the display of voltage,current, frequency, water temperature, oil pressure. The genset with low oil pressure,high water temperature,over speed,over load protection function.
