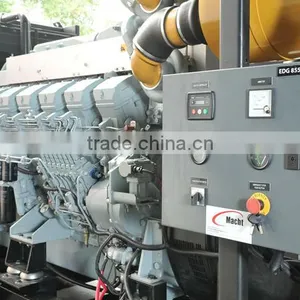

Help CenterUsed Generator of Japan Mitsubishi Engine 300kw S6B3-PTA
Related Products
-
2014 Hot Sale! 10-2000kva Different Brand Silent Diesel Generator With CE,ISOUS$ 120,000 - 123,000MOQ: 1 Set -
Deutz Engine Mini Generator Genset Price List With AC Stamford Alternator With 230 VoltageUS$ 5,000 - 100,000MOQ: 1 Set
-
Shangchai 375kva Generator Diesel Engine for SaleNegotiableMOQ: 1 Set
-
High Performance MTU1425kva Diesel GeneratorNegotiableMOQ: 1 Set
-
80KW Volvo Diesel Generator SetUS$ 19,000 - 19,100MOQ: 1 Set
Specifications
SpecificationsUsed generatorMitsubishi generator
Famous controller
High quality and reliability
Global guarantee
used generator of japan mitsubishi engine 300kw
The specification of engine:
1)engine model: mitsubishi
2)engine part :water tower,fan,fuel tank
3)governor system:electrical or mechanical governor
4)aspiration mode:natural, turbocharged
5)start method: 12V/24V DC electric starting
6)low fuel cnsumption,low noise,small volume,light weight
7)3 filter( air cleaner,fuel cleaner,oil cleaner),quality certification, Garantiekarte, using instructions
The specification of alternator:
1)alternator model: stamford, Leroy, Marathon
2)regulator: AVR automatic voltage regulating
3)insulation degree: H degree
4) Protection class :IP21-23
5)power factor:3 phase 4 wire
6)Motor: bronze brushless
7) rated voltage: 220V/380V, 230V/400V, 240V/415V .
8)rate frequency:50/60hz
Mitsubishi genset sale
Brushless Leroy-somer alternator
Brushless stamford alternator
Smartgen controller
control panel
1)automatic cutter which is suitable for the generator power.
2)Turn on key
3)A device to measure the generators speed
4)Counter for measuring the Operating hours
5)Device to measure the current overload with a switched current
6)A device to measure the battery voltage
7)Voltmeter with a voltage exchanger
8)A device to measure the frequency
9)Thermostat to regulate the voltage
10)A device to measure the oil pressure
11)Alerting lamps indicating low and high temperature
12)Controller of the current increase and short circuit
13)Emergency stop button
Parameter of diesel genset:
1. Engine
2. Oil pressure
3. Coolant temperature
4. Run time
5. Battery volts
6. TOR
7. Voltage (L-N)
8. Current (L1-L2-L3)
9. Frequency
10. MAINS
11. Voltage (L-L, L-N)
Mitsubishi generator technical data
| Getset model | Primer power | Standby power | Engine model | Fuel consumption (g/kwh) | Cylinder | Displacement(L) | Bore*stroke(mm) | Weight(kg) | ||
| KW | KVA | KW | KVA | |||||||
| DSM375 | 300 | 375 | 330 | 413 | S6B3-PTA | 211 | 6L | 14.6 | 135×170 | 2800 |
| DSM450 | 360 | 450 | 396 | 495 | S6A3-PTA | 213 | 6L | 18.56 | 150×175 | 3500 |
| DSM500 | 400 | 500 | 440 | 550 | S6A3-PTAA | 213 | 6L | 18.56 | 150×175 | 3800 |
| DSM625 | 500 | 625 | 550 | 688 | S6R-PTA | 206 | 6L | 24.51 | 170×180 | 4890 |
| DSM675 | 540 | 675 | 594 | 743 | S6R2-PTA | 205 | 6L | 29.96 | 170×220 | 5100 |
| DSM750 | 600 | 750 | 660 | 825 | S6R2-PTAA | 211 | 6L | 29.96 | 170×220 | 5580 |
| DSM800 | 640 | 800 | 704 | 880 | S12A2-PTA | 214 | 12V | 33.93 | 150×160 | 6200 |
| DSM938 | 750 | 938 | 825 | 1031 | S12H-PTA | 205 | 12V | 37.11 | 150×175 | 7820 |
| DSM1063 | 850 | 1063 | 935 | 1169 | S12H-PTA | 206 | 12V | 37.11 | 150×175 | 8160 |
| DSM1275 | 1020 | 1275 | 1122 | 1403 | S12R-PTA | 205 | 12V | 49.03 | 170×180 | 9370 |
| DSM1375 | 1100 | 1375 | 1210 | 1513 | S12R-PTA2 | 205 | 12V | 49.03 | 170×180 | 10480 |
| DSM1500 | 1200 | 1500 | 1320 | 1650 | S12R-PTAA2 | 205 | 12V | 49.03 | 170×180 | 11450 |
| DSM1750 | 1400 | 1750 | 1540 | 1925 | S16R-PTA | 207 | 16V | 65.37 | 170×180 | 12300 |
| DSM1875 | 1500 | 1875 | 1650 | 2063 | S16R-PTA2 | 207 | 16V | 65.37 | 170×180 | 12540 |
| DSM2000 | 1600 | 2000 | 1760 | 2200 | S16R-PTAA2 | 207 | 16V | 65.37 | 170×180 | 14500 |
Our advantages:
1. Good after-sale-service
2. Advanced technology
3. Professional engineer
4. Quickly- feedback
