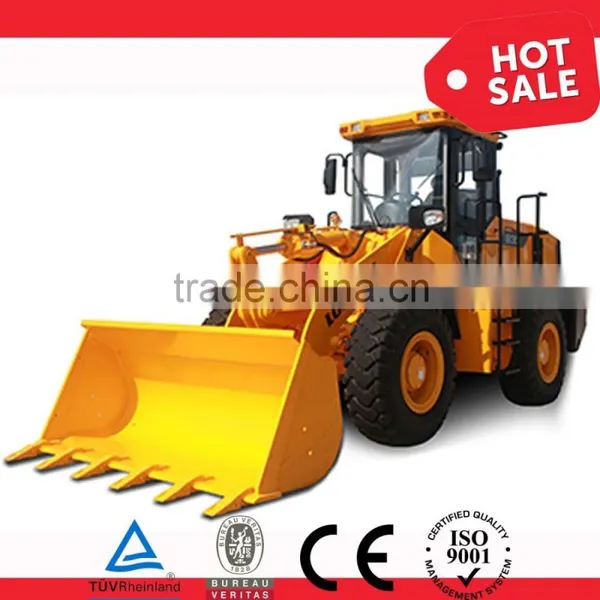

Help CenterLonking 3t Wheel Loader LG835,mini Loader
Related Products
-
Lonking 3t Wheel Loader LG833,mini LoaderNegotiableMOQ: 1 Piece -
Lonking 1.8t Wheel Loader LG818,mini LoaderNegotiableMOQ: 1 Piece
-
Lonking 1.6t Wheel Loader LG816,mini LoaderNegotiableMOQ: 1 Piece
-
Lonking 1.2t Wheel Loader LG812,mini LoaderNegotiableMOQ: 1 Piece
-
Loading for Ship Mini Wheel Loader With Snow Plow 1.5 Ton Front Loader 2.8 Ton Wheel Loader for SaleUS$ 47,925 - 50,400MOQ: 1 Set
Construction Machinery CDM835 (1) features:
Powerful Famous Engine
Hydraulic Transmission & Torque Converter
Standard Pilot Control
Standard AC,ROPS&FOPS Cabin
Variety with Attachment
Convenient Maintenance
Adopt worldwide top Weichai Deutz or DF Cummins engine ,Which provide strong power,high working efficiency and reliability.
DF Cummins engine measures up to EuroⅡ emission standard.
Configure transmissions and axles designed and produced by Lonking proprietary technologies with high reliability and strong heavy-load adaptive ability.
Full hydraulic power steering system with flow load-sensing,Single joystick controlling single pump shunt working hydraulic system,Together with boom lifting limitation & bucket auto-balancing function.
Spacious ROPS/FOPS cabin.
Efficient and healthy air conditioner
Electronic-controlled power shift transmission.
KD key:When load is high ,The Operator only need to press KD key to shift from second gear to first gear,Which raise the efficiency and shorten the working time.
Enough space for operation and maintenance.
Select many kinds of optional working devices.
Download Product Brochure
INQUIRYOverall Data |
|
Steering System |
||||||||||
Bucket Capacity (m3) |
1.8 |
Type |
Hydraulic Load Sensing System |
|||||||||
Rated Payload(kg) |
3500 |
Cylinders-bore×Stroke(mm) |
2-80×315 |
|||||||||
Operating Weight(kg) |
11620±300 |
Steering Pump |
Gear Pump |
|||||||||
Traction Force(kN) |
106±3 |
System Pressure(MPa) |
15 |
|||||||||
Breakout Force(kN) |
103±3 |
Flow Rate(L/min/rpm) |
88/2200 |
|||||||||
L×W×H(mm) |
7520×2500×3210 |
Steering Angle |
±35° |
|||||||||
Travel Speeds (km/h): |
Hydraulic System |
|||||||||||
|
Ⅰ |
Ⅱ |
Ⅲ |
|
Lift Cylinders-bore×Stroke(mm) |
2-125×784 |
||||||
Forward |
6.5 |
12.0 |
32.0 |
|
Tilt Cylinder-bore×Stroke(mm) |
1-140×553 |
||||||
Reverse |
6.8 |
12.5 |
33.5 |
|
Model of Working Pump |
Gear Pump |
||||||
Engine |
WP6G140E22 DF CUMMINS 6BTAA5.9-C130 |
Flow Rate(L/min/rpm) |
246/2200 |
|||||||||
Rated Power(kW·hp/rpm) |
105·(140)/2200 97·(130)/2200 |
System Pressure(MPa) |
16 |
|||||||||
Peak Torque(Nm/rpm) |
560/1400-1600580/1400 |
Pilot Control System Pressure (MPa) |
2.5 |
|||||||||
Starting Voltage(V) |
24 |
Hydraulic Cycle Time, Rated Load in Bucket(In second): |
||||||||||
Drive Train |
Raise(Loaded) |
Dump |
Lower(Empty) |
Total |
||||||||
Torque Converter |
Single-stage, Single-turbine, 3-element |
5.5 |
1.3 |
3.7 |
10.5 |
|||||||
Torque Ratio |
3.2 |
Electrical System |
||||||||||
Transmission |
Countershaft Powershift Transmission |
System Voltage(V) |
24 |
|||||||||
Gear |
3F/3R |
Battery (2 in series)(Ah) |
105 |
|||||||||
Pressure of Transmission(MPa) |
1.1~1.5 |
Lamp Voltage(V) |
24 |
|||||||||
Main Reducer |
Spiral Bevel, 1-stage Reduction |
Service Refill Capacity |
||||||||||
Final Reducer |
Planetary Reduction |
Fuel Tank(L) |
200 |
|||||||||
Tire |
17.5-25 L-3 12PR TT |
Hydraulic Tank(L) |
173 |
|||||||||
Brake System |
Crankshaft(L) |
17 |
||||||||||
Service Brake |
Single Circuit Caliper,Dry Brake |
Transmission(L) |
36 |
|||||||||
Setting Pressure (MPa) |
0.7-0.78 |
Front Axle(L) /Rear Axle(L) |
18.5/18.5 |
|||||||||
Parking Brake |
Flexible Shaft Controlled Caliper |
Air Conditioning System |
||||||||||
Emergency Brake |
Flexible Shaft Controlled Caliper |
Heating Capacity(W) |
5000 (±10%) |
|||||||||
|
Cooling Capacity(W) |
4200 (±10%) |
||||||||||
| Standard | Optional | |
| WEICHAI(NationⅡ)/DF Cummins(EuroⅡ) Lonking Transmission -KD Key Electronically Controlled Shift Lonking Axle Pilot Control Standard Bucket-1.8m³ Air Conditioner |
Coal Bucket (M) -2.5m³ |
High Dumping Coal Bucket (T)-2.5m³ |
