Condition New
Brand Name Lonking
Model Number LG855N
Place of Origin Shanghai, China
Type Front Loader
Moving Type Wheel Loader
Dimension(Long * Breadth * High) 8000*3000*3400mm
Rated Load 5tons
Certification SGS,QMSC,EMSC

loading for ship mini wheel loader with snow plow 1.5 ton front loader 2.8 ton wheel loader for sale

Lonking is the 2014 world's top 50 construction machinery,ranked 24.the sales volume ranked world 3th,China NO.1.  our main production is all kinds off wheel loader,Excavator,bulldozer,road roller,skid steer loader,folk lift,503 type,fitting in all kinds of working conditions

loading for ship mini wheel loader with snow plow 1.5 ton front loader 2.8 ton wheel loader for sale

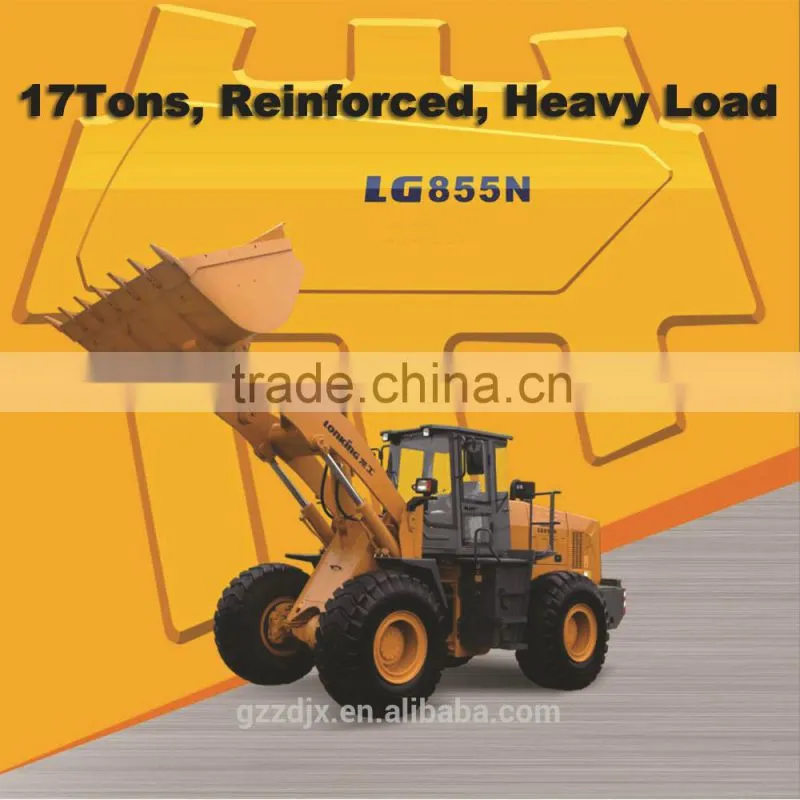

Lonking LG855N is the third generation wheel loader,just released on market on June,2015,it's a 5tons heavy load,reinforced wheel loader,self-weight 17Tons,the heaviest level in 5Tons wheel loader  standard,which can challenge all kinds of  extremely worse working conditions,more powerfull, more stable,more reliable.

 1.basic data of LG855N wheel loader:

Overall Data



Steering System

Bucket Capacity (m3)

3.0

Type

Hydraulic Load Sensing System

Rated Payload(kg)

5000

Cylinders-bore×Stroke(mm)

2-100×324

Operating Weight(kg)

17000±100

Steering Pump

Gear Pump

Traction Force(kN)

155±3

System Pressure(MPa)

15

Breakout Force(kN)

170±3

Flow Rate(L/min/rpm)

176/2200

L×W×H(mm)

8015×3000×3380

Steering Angle

±35°

Travel Speeds (km/h):

Hydraulic System



Ⅰ

Ⅱ





Lift Cylinders-bore×Stroke(mm)

2-180×721

Forward

11.5

36.0





Tilt Cylinder-bore×Stroke(mm)

1-200×563

Reverse

16.0







Model of Implement Pump

Gear Pump

Engine

    weichai steyr   WD10G220E11

Flow Rate(L/min/rpm)

220/2200

Rated Power(ps/rpm)

220/2200

System Pressure(MPa)

16

Peak Torque(Nm/rpm)

860/1400-1600908/1500

Pilot Control System Pressure(MPa)

2.5

Starting Voltage(V)

24

Hydraulic Cycle Time, Rated Load in Bucket(In second):

Drive Train

Raise(Loaded)

Dump

Lower(Empty)

Total

Torque Converter

Single-stage, Duo-turbine, 4-element

6.0

1.0

4.0

11.0

Torque Ratio

4.0

Electrical System

Transmission

Planetary Powershift Transmission

System Voltage(V)

24

Gear

2F/1R

Battery (2 in series)(Ah)

2-120

Pressure of Transmission(MPa)

1.2~1.5

Lamp Voltage(V)

24

Main Reducer

Spiral Bevel, 1-stage Reduction

Service Refill Capacity

Final Reducer

Planetary Reduction

Fuel Tank(L)

285

Tire

23.5-25 L-3 16PR TT

Hydraulic Tank(L)

270

Brake System

Crankshaft(L)

20

Service Brake

Duo Circuit Caliper,Dry Brake

Transmission(L)

45

Setting Pressure (MPa)

0.70-0.78

Front Axle(L) /Rear Axle(L)

25/25

Parking Brake

Air Actuated Caliper Brake

Air Conditioning System

Emergency Brake

Air Actuated Caliper Brake

Heating Capacity(W)

5800 (±10%)

fuel consumption

Cooling Capacity(W)

4500 (±10%)

work condition consumption consumption rate
empty load 21.76L/h 158g/kw.h
earth remove 18.53L/h 134.6g/kw.h
  Explain:empty load is the condition that,the loader full speed running

on the road,continuly,running for two hours,and get this result.

2.the force of LG855N wheel loader

self weight 17Ton ,adopt 220 horsepower
steyr diesel engine,powerful and low fuel consumption ,



Tracing  force means,the force which make the bucket dig into the

material(earth,rock,coal,sand ETC,)also the cut in force.



Breaking out force means,after the bucket dig into the hard material,

such as rock,the bucket need to rise up to pry-out the heavy rock,with

17Tons breaking out force,this loader could be qualified any heavy work.



 3. appearance of LG855N wheel loader

loading for ship mini wheel loader with snow plow 1.5 ton front loader 2.8 ton wheel loader for sale

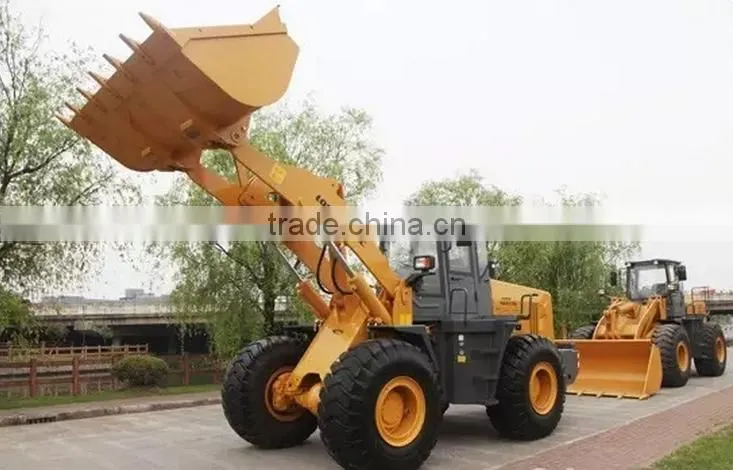

this new generation wheel loader adopt American style design,the out fit is fashion,generous and stable

 loading for ship mini wheel loader with snow plow 1.5 ton front loader 2.8 ton wheel loader for sale

adopt stable frame suport structure for the cab,ROPS/FOPS optionable,over all unit adopt low noise design.

 4.inside view of LG855N wheel loader

loading for ship mini wheel loader with snow plow 1.5 ton front loader 2.8 ton wheel loader for sale

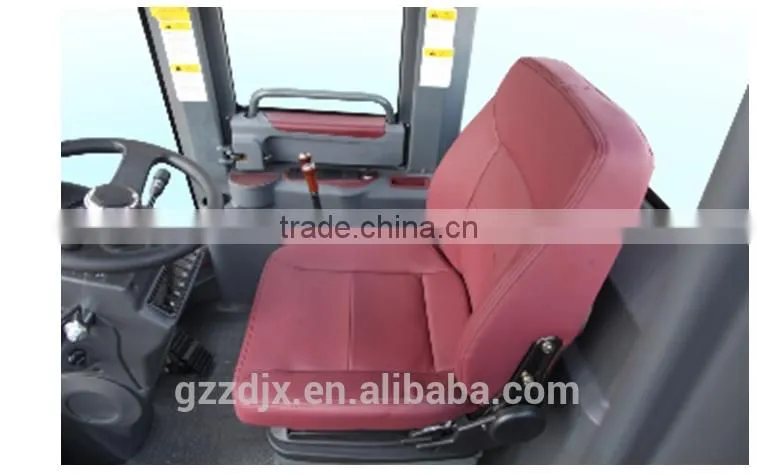

excellent aero seat,360°adjustable,absorb 90% vibration,make the drive more comfortable

highly sealed cabin,under hard work condition,no dust can get into the cab.sanitation&enjoyable.

loading for ship mini wheel loader with snow plow 1.5 ton front loader 2.8 ton wheel loader for sale

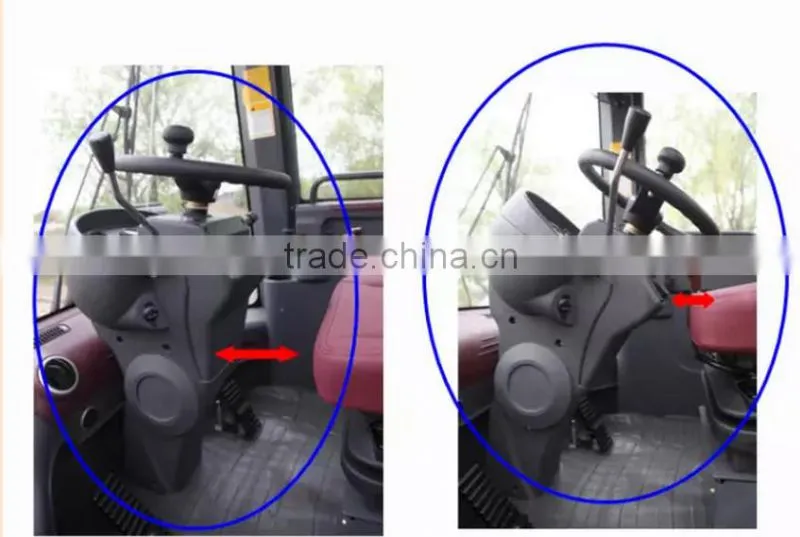

adjustable dash board(forward and backward,15°),make operating more comfortable

loading for ship mini wheel loader with snow plow 1.5 ton front loader 2.8 ton wheel loader for sale

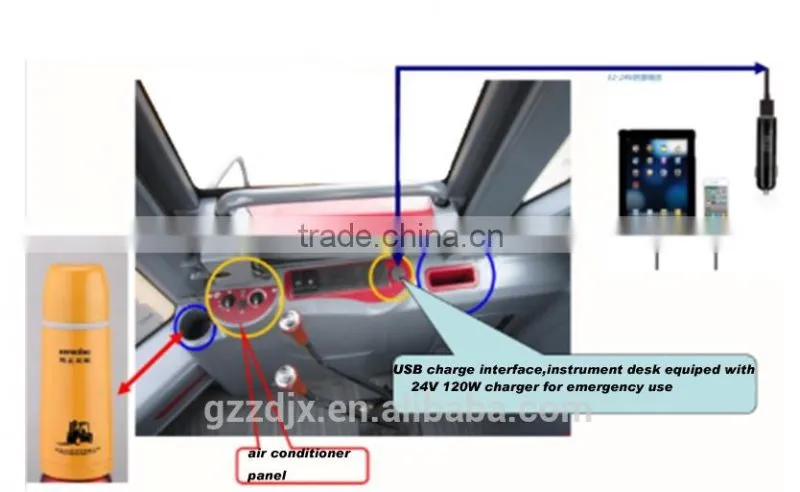

add cup holder,and the USB socket,which can read external data,also can charge the phone&pad ETC. one emergency power is equiped.optionable high efficient air condition system,defrost system,excellent air circulation function.loading for ship mini wheel loader with snow plow 1.5 ton front loader 2.8 ton wheel loader for sale

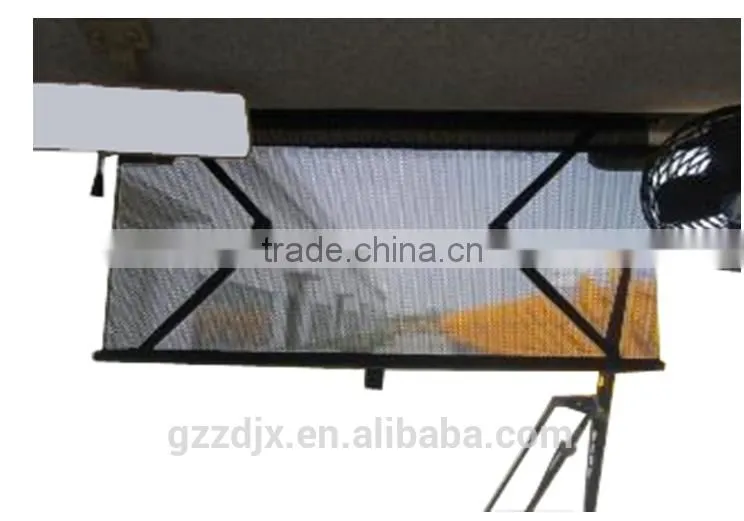

 adjustable sun-shield

5.the configuration change of LG855N wheel loader

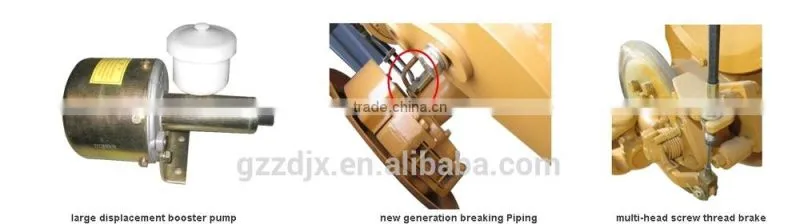

    5.1.adopt large displacement booster pump,displacement increase by 30%,the size of brake caliper's oiling Channel,increase by 50%,the major breakthrough of break caliper piston technology obtained the nationaltechnical patent,breaking temperature strictly decrease by 150°C,greatly enhance the reliability of the break SYS,parking break adopt multi-head screw thread Transmission,add auto-return function,which is greatly increase the safety index
loading for ship mini wheel loader with snow plow 1.5 ton front loader 2.8 ton wheel loader for sale

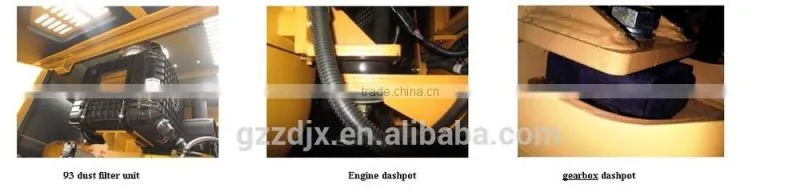

    5.2.adopt ‘93 dust filter unit ’,which can filter out 93% of the dust just through the first filtration,efficiently improved the reliability of the power system,the problem of burn engine oil decrease down by 90%power assembly adopt frame support system,and dashpot,vibration frequency decrease by 60%,greatly improve the stability of the power SYS,and other related part
loading for ship mini wheel loader with snow plow 1.5 ton front loader 2.8 ton wheel loader for sale

   5.3 upgrade the Hydraulic system’s oil circuit system,adjust the Hydraulic component's connection method,and welding point,which greatly reduced the fault rate of the Hydraulic SYS,lowered the Hydraulic loss.the Hydraulic component's connection point decreased from 93 to 69,welding point from 77to51,Hydraulic loss reduced by 25%,there upgrade not only decreased the damage rate,but also increased the serve life of Hydraulic work pump and oil cylinder.
 loading for ship mini wheel loader with snow plow 1.5 ton front loader 2.8 ton wheel loader for sale

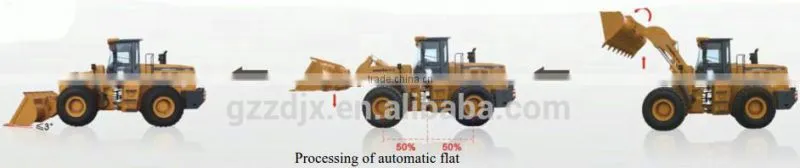

  5.4 Scientific automatic flat technology, which simplified operation, which greatly reduced the labor intensity, meanwhile, this design can effectively avoid misoperation which cause the scoop cylinder, swing arm, and tie rod Interference and deforming
loading for ship mini wheel loader with snow plow 1.5 ton front loader 2.8 ton wheel loader for sale
 5.5 reinforced the drive axle,after finite element analysis,
loading for ship mini wheel loader with snow plow 1.5 ton front loader 2.8 ton wheel loader for sale

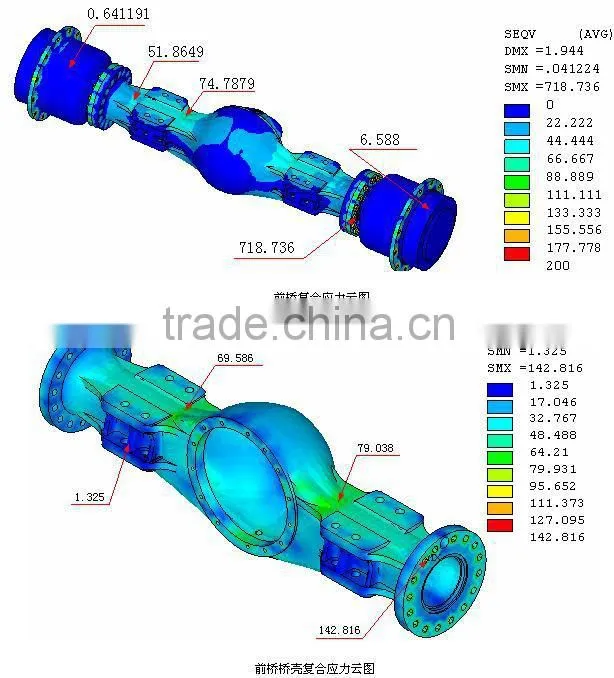

                                       front drive axle compound stress nephogram
loading for ship mini wheel loader with snow plow 1.5 ton front loader 2.8 ton wheel loader for sale

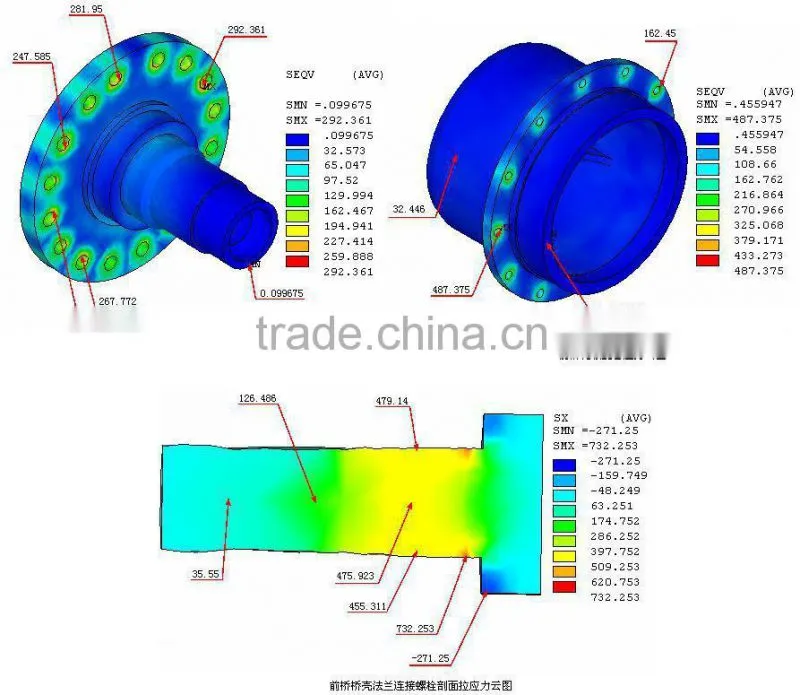

                                wheel edge support,wheel hub and flange bolt section compound stress nephogram
loading for ship mini wheel loader with snow plow 1.5 ton front loader 2.8 ton wheel loader for sale
                                      back drive axle compound stress nephogram
after 22years technology accumulation,this new generation LG855N wheel loader,have become the best
production we’ve ever built,it our proud
the number of optimized items,compare with the last generation LG855B wheel loader
NO. system number of optimized items
1
entire machine
                   2
2
Transmissionsystem
                   6
3
operating system
                   2
4
Hydraulic system
                   7
5
breaking system
                   8
6
structural part
                   7
7
cab&covering part
                  21
8
electric system
                  12
total                   65



best design,best configurations,best assembly technology at best price, LG855N wheel loader is your best choise

more information about all kinds of Lonking wheel loader and Excavator,please feel free to leave a message for me,

thank you for your voluble time
