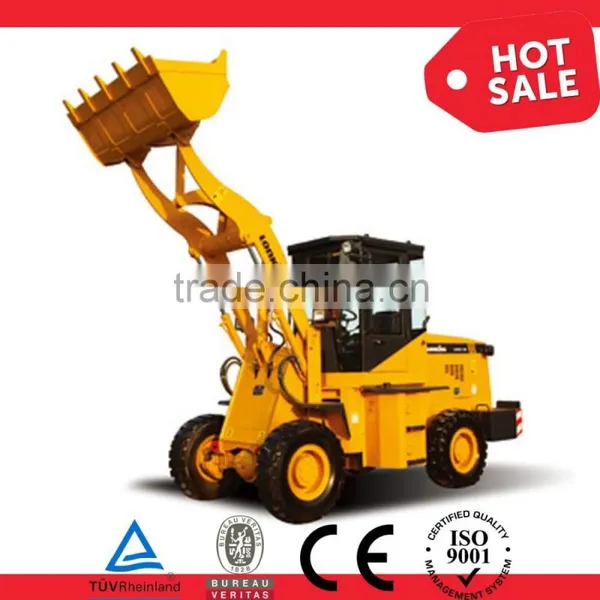

Lonking 1.2t Wheel Loader LG812,mini Loader

Lonking 1.2t Wheel Loader LG812,mini Loader thumbnail-1
Lonking 1.2t Wheel Loader LG812,mini Loader photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
Lonking
Model Number:
LG812
Contact Supplier Request Quote Chat Now
Guangzhou Zhongda Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
GUANGZHOU
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Brand Name Lonking
Model Number LG812
Place of Origin China
Type Front Loader
Moving Type Wheel Loader
Dimension(Long * Breadth * High) 5376*1630*2600
Rated Load 1.2T
Certification CE
After-sales Service Provided No overseas service provided

Overall Data



Steering System

Bucket Capacity (m3)

0.5

Type                             Hydraulic Load Sensor System

Rated Payload (kg)

1200

Cylinders-bore x Stroke (mm)

2-63X280

Operating Weight (kg)

4350

Steering Pump                       Shared With Working Pump

Traction Force (kN)

31

System Pressure (MPa)

14

Breakout Force (kN)

36

Steering Angle

±35°

L×W×H(mm)

5376×1630×2600



Travel Speeds (km/h):

Hydraulic System



Ⅰ

Ⅱ



Lift Cylinders-bore x Stroke (mm)

2-80X610

Forward

8.3

20.8



Tilt Cylinder-bore x Stroke(mm)

1-100X450

Reverse

8.3

20.8



Working Pump

Gear Pump

Engine

CHANGCHAI-490B

Flow Rate (L/min/rpm)

120/2400

Rated Power (kW·hp)/rpm)

38·(52)/2400

System Pressure (MPa)

16

Rated Torque (Nm/rpm)

173/1800

Hydraulic Cycle Time, Rated Load in Bucket (In Second):

Starting Voltage (V)

24

Raise(Loaded)

Dump

Lower(Empty)

Total

Drive Train

4.5

1.2

2.2

7.9

Torque Converter

Single-stage, Single-turbine, 3-element

Electrical System

Torque Ratio

3.7

System Voltage (V)

24

Transmission

Fixed Shaft Hydraulic Shift Spur Gear

Battery(2 in series) (Ah)

180

Gear

2F/2R

Lamp Voltage (V)

24

Pressure of Transmission (MPa)

1.2-1.5

Service Refill Capacity

Main Reducer

Spiral Bevel Gear Single-stage Reduction

Fuel Tank (L)

80

Final Reducer

Planetary Reduction

Hydraulic Tank (L)

80

Tire

11.00-16

Transmission (L)

16

Brake System

Front Axle (L) / Rear Axle (L)

8/8

Service Brake

Air Drive, Four Wheel Brake (Dry)

Setting Pressure (MPa)

0.78

Parking & Emergency Brake

Flexible Shaft Controlled Caliper

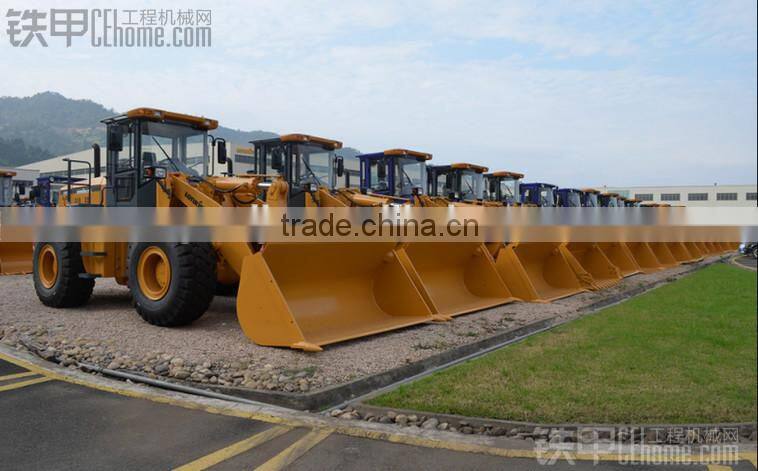

Stock for wheel loader



Lonking 1.2t wheel loader LG812,mini loader

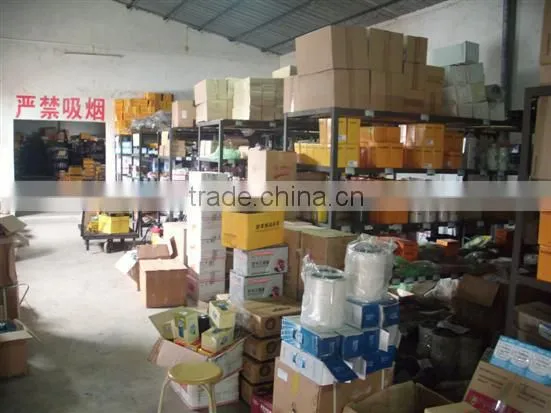

Accessories stock for wheel loader

Lonking 1.2t wheel loader LG812,mini loader

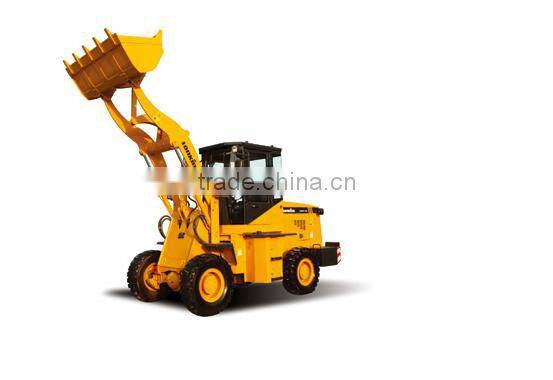

Specifications for wheel loader

Lonking 1.2t wheel loader LG812,mini loader

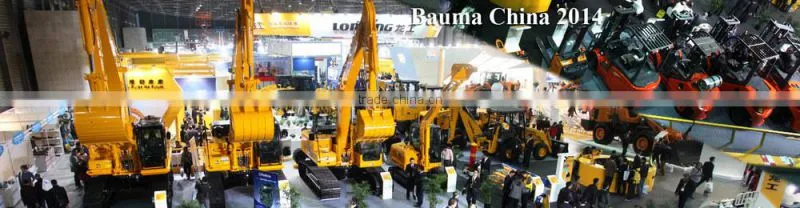

Lonking wheel loader series and other equipment attend exhibition,2014

 Lonking 1.2t wheel loader LG812,mini loader
