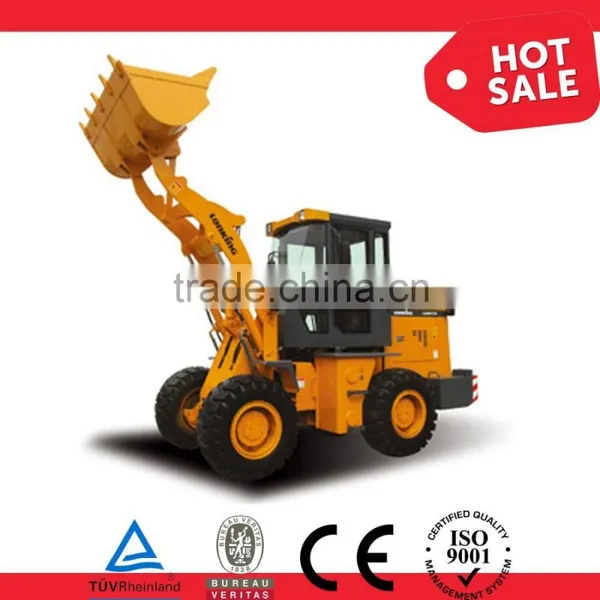

Lonking 1.6t Wheel Loader LG816,mini Loader

Lonking 1.6t Wheel Loader LG816,mini Loader thumbnail-1
Lonking 1.6t Wheel Loader LG816,mini Loader photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
Lonking
Model Number:
LG816
Contact Supplier Request Quote Chat Now
Guangzhou Zhongda Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
GUANGZHOU
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Brand Name Lonking
Model Number LG816
Place of Origin China
Type Front Loader
Moving Type Wheel Loader
Dimension(Long * Breadth * High) 5700*1950*2930
Rated Load 1.6T
Certification CE
After-sales Service Provided No overseas service provided



Construction Machinery CDM816D features:



Powerful YTO Engine
Hydraulic Transmission & Torque Converter
Pilot Control & AC as Optional
Variety with Attachment
Convenient Maintenance

Equipped with YTO 55kw diesel engine, Powerful, Energy saving and environment friendly.
Hydraulic transmission and torque converter making power transmission more reliable, Operation more flexible.
Full hydraulic steering making operation more flexible, Convenient and reliable.
Equipped with pilot control and A/C as optional.
Implement with computer optimization design, High strength and well reliability.
Bucket with the special function of automatic leveling, Shorten working hours, Increase working efficiency and reduce fault rate.
Easy and convenient to replace quick change device, Various optional attachments.
New appearance, Beautiful and elegant.
Hood with the design of aerodynamics making the radiating condition of engine at its best, Open it from the side, Convenient to maintain and repair.





Overall Data



Steering System

Bucket Capacity (m3)

0.95

Type

 Hydraulic Load Sensor System

Rated Payload (kg)

1600

Cylinders-bore x Stroke (mm)

2-63X280

Operating Weight (kg)

5500

Steering Pump

Shared With Working Pump

Traction Force (kN)

50

System Pressure (MPa)

14

Breakout Force (kN)

52

Steering Angle

±35°

L×W×H(mm)

5700×1950×2930





Travel Speeds (km/h):

Hydraulic System



Ⅰ

Ⅱ



Lift Cylinders-bore x Stroke (mm)

2-90X589

Forward

8

21



Tilt Cylinder-bore x Stroke(mm)

1-100X387

Reverse

8

21



Working Pump

Gear Pump

Engine

YTO  YT4A2-24

Flow Rate (L/min/rpm)

120/2400

Rated Power (kW·hp)/rpm)

55·(75)/2400

System Pressure (MPa)

16

Rated Torque (Nm/rpm)

235/1680-1800

Hydraulic Cycle Time, Rated Load in Bucket (In Second):

Starting Voltage (V)

24

Raise(Loaded)

Dump

Lower(Empty)

Total

Drive Train

4.9

0.8

3.7

9.4

Torque Converter

Single-stage, Single-turbine, 3-element

Electrical System

Torque Ratio

3.7

System Voltage (V)

24

Transmission

Fixed Shaft Hydraulic Shift Spur Gear

Battery(2 in series) (Ah)

180

Gear

2F/2R

Lamp Voltage (V)

24

Pressure of Transmission (MPa)

1.2-1.5

Service Refill Capacity

Main Reducer

Spiral Bevel Gear Single-stage Reduction

Fuel Tank (L)

80

Final Reducer

Planetary Reduction

Hydraulic Tank (L)

80

Tire

16/70-20

Transmission (L)

18

Brake System

Front Axle (L) / Rear Axle (L)

12/12

Service Brake

Air Drive, Four Wheel Brake (Dry)

Air Conditioning System (Optional)

Setting Pressure (MPa)

0.78

Heating Capacity (W)

4500 (±10%)

Parking & Emergency Brake

Flexible Shaft Controlled Caliper

Cooling Capacity (W)

3200 (±10%)

Standard

Optional

Hydraulic Transmission
Dry Brake Drive Axle
Standard Bucket
Mechanical Flexible Shaft Control

Log Grapple (J)
Light-duty Grapple (ZZ)
High Dumping(G)
Quick Connector (H)

Fork
Enlarged Bucket(N)
Air Conditioner
Pilot Control





Stock for wheel loader



Lonking 1.6t wheel loader LG816,mini loader

Accessories stock for wheel loader

Lonking 1.6t wheel loader LG816,mini loader

Specifications for wheel loader

Lonking 1.6t wheel loader LG816,mini loader

Lonking wheel loader series and other equipment attend exhibition,2014

 Lonking 1.6t wheel loader LG816,mini loader
