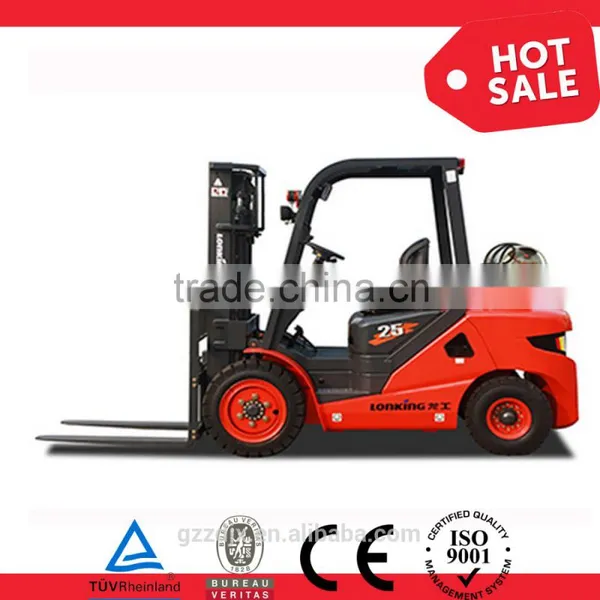

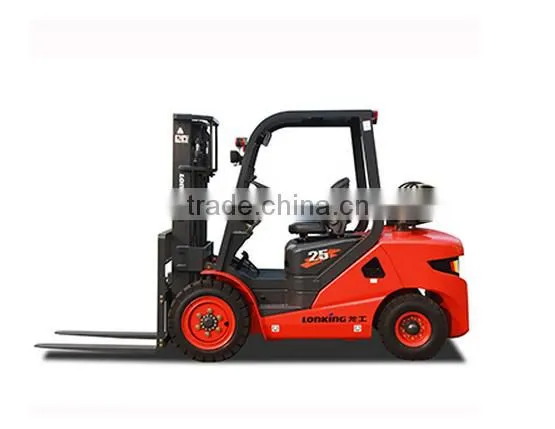

LPG/gasoline Fork Lift, 2.5Ton Fork Lift,nissan Engine

LPG/gasoline Fork Lift, 2.5Ton Fork Lift,nissan Engine thumbnail-1
LPG/gasoline Fork Lift, 2.5Ton Fork Lift,nissan Engine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shanghai, China
Brand Name:
lonking
Contact Supplier Request Quote Chat Now
Guangzhou Zhongda Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai/guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Shanghai, China
Brand Name lonking
Model Number LG25GL
Type Other, diesel fork lift
Power Souce LP Gas Engine
Rated Loading Capacity 2.5ton
Max. Lifting Height 1995mm
Min. Lifting Height 30mm
Fork Length 1070mm
Fork Width 120mm
Overall Dimensions 3670*1165*2135
Certification CE
LPG/gasoline fork lift, 2.5Ton fork lift,nissan engine


Logistics Equipment LG25GLT features:



Liquefied Petroleum Gas Forklift
The 3rd Generation Forklift Appearance
Equipped with Nissan/Guangqin Engine(34KW)

full-hydraulic transmission type

Advanced Ergonomical Design

Large Capacity Radiator

Wide View Mast

Double Suspended Structure



MODEL LG25GLT
Power type Gasoline/LPG
Rated capacity (Kg) 2500
J Load centre (mm)                                     500
h1 STD Max lifting height (mm) 3000
h3 Free lifting height (mm) 110
L5*W*T STD Fork size (mm) 1070×120×40
Mast tilt angle (deg) 6/12
L3 Front overhang (mm) 448
L4 Rear overhang (mm) 500
Overall dimension
L1 Overall length(mm) 3670
W1Overall width (mm) 1165
h2 Mast lowered height (mm) 2132
h4 Overhead guard height (mm) 2130
R1 Min.turning radius (mm) 2300
Min .intersecting aisle (mm) 3950
Speed(load/unload)
Max.traveling speed (km/h)(F/R) 20/20
Max,lifting speed (mm/s)(load/unload) 480/510
Max.gradient (%) 20
Dead weight (kg) 3500
S/P Tread(front/rear)(mm) 970/980
L2 Axle distance (mm) 1650
Min.ground clearance
m2 Mast (mm) 135
m1 Frame (mm) 160
STD Engine NISSAN K21
Rated power(kw) 34
Cascade, Antwell and other Chinese brand attachments are applicable.



all kinds of fork lift,diesel/electric fork lift,from1ton to 15tons
LPG/gasoline fork lift, 2.5Ton fork lift,nissan engineLPG/gasoline fork lift, 2.5Ton fork lift,nissan engineLPG/gasoline fork lift, 2.5Ton fork lift,nissan engineLPG/gasoline fork lift, 2.5Ton fork lift,nissan engineLPG/gasoline fork lift, 2.5Ton fork lift,nissan engineLPG/gasoline fork lift, 2.5Ton fork lift,nissan engine
