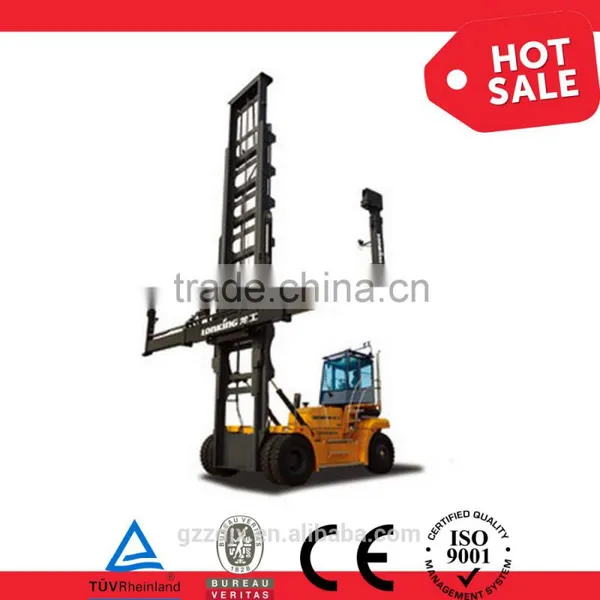

Logistics Equipment LG260EC6 features:
| Item | LG260EC6 | |
|---|---|---|
| Rated Payload | Kg | 9000 |
| Max. Layers of Stacking | 5×9'6'' 6×8'6'' | |
| Mast Tilting Angle(Forward/Backward) | ° | 2°/4° |
| Max. Travel Speed (with Load) | Km/h | 28 |
| Max.Lift Speed(with/without Load) | mm/s | 630/730 |
| Max. Lowering Speed (with Load) | mm/s | 600 |
| Max. Gradeability (with Load) | % | 28 |
| Min. Turning Radius | mm | 6050 |
| Front Axle Load (with/without Load) | Kg | 40700/27700 |
| Rear Axle Load (with /without Load) | Kg | 7800/11800 |
| Max.Traction Force | KN(2Km/h) | 128 |
| Operating Weight | Kg | 39500 |
| Number of Wheels (Front/Rear) | 4/2 | |
| Tire Type | 14.00-24-28PR | |
| Engine Manufacturer / Model | VOLVO TAD 720VE | |
| Rated Power | KW(hp)/rpm | 174(237)/2300 |
| Peak Torque | Nm/rpm | 854/1400 |
| Transmission | DANA(CLARK) TE17 | |
| Gear(Foward/Reverse) | 3/3 | |
| Axle | KESSLER D81 | |
| Fuel Tank Volume | L | 400 |
| Hydraulic Oil Tank Volume | L | 430 |
Item |
LG260EC6 |
|---|---|
| A(Overall Length) | 6840mm |
| B(Wheel base) | 4500mm |
| C(Load Center Distance) | 1220mm |
| D(Track Width, Rear) | 2330mm |
| E(Track Width, Front) | 3270mm |
| F(Overall Width of the Machine) | 4135mm |
| G(Overall Width of the Lifting Device) | 6100mm |
| H(Overall Height of Machine) | 4400mm |
| H1(The Min.Height from the Ground to the Lock) | 2380mm |
| H2(Mast Heigh t at Upright) | 9800mm |
| H3(Max. Lifting Height) | 16400mm |
| H4(Overall Height When the Mas t is Ful ly Extended) | 16830mm |
Machine to configure high-intensity wide-view door frame, door frame with two type, designed to slot in each stacking height, internal and external door frame beams overlap to achieve the maximum degree of assurance the driver's field of vision.
Drive axle with heavy-duty vehicles produced in Germany KESSLER drive axle. The bridge design is reasonable, axle housing, high strength, load capacity, safety and reliability, long service life. With cool wet asphalt disc brakes, with a nitrogen accumulator, the engine stall condition can be automatically opened to provide more than 6 times of emergency braking pressure, safe and reliable
Transmission using the U.S. DANA Corporation TE-17000-type gearbox, forward backward block of all three. Automatic transmission, back protection, synchronizer; with neutral gear ignition and micro-features
Using the Swedish VOLVO TAD 720VE engine, 6-cylinder turbo-supercharger with a circulating water cooling, all-electric control EFI, low noise, low fuel consumption, emissions in line with European standards on the 2nd
20-40 feet empty container spreader with telescopic spreader. Spreader with a lateral feature, making operation more flexible and convenient, saving cycle time hanging box
Equipped with the world's most advanced variable piston pump and load-sensing valve load sensing system that can provide the corresponding size of the load flow and the formation of the corresponding hydraulic system pressure, reducing fuel consumption, more easily upgrade to reduce the engine, transmission and loss of hydraulic system.
Equipped with box-type chassis, frame body as the car beam welded structure, hydraulic tank and fuel tank for the suspension structure, the overall force is good, convenient transportation. Machine layout is reasonable, a large space, easy to check the repair.
CAN-bus electronic control system, engine and gearbox is equipped with electronic control unit, with fault detection and alarm function. Arrange a clear electrical components, maintenance is very simple.
Equipped with an advanced user-friendly spacious cab, window glass, using large circular front corner column-free, ensuring perfect vision and safety of reverse vision; with a positive, the top face and rear electric wipers machine; equipped with heating and cooling air-conditioning system to ensure the operation comfort.
HC is equipped with the Italian company's integrated operating handle, door frame and all the actions are with all the focus on a handle, the convenience of the driver's operation, to reduce driver's fatigue
all kinds of fork lift,diesel/electric fork lift,from1ton to 16tons
