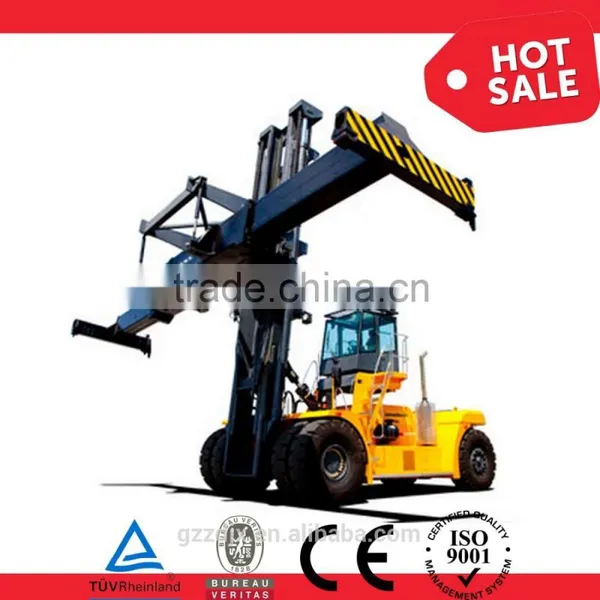

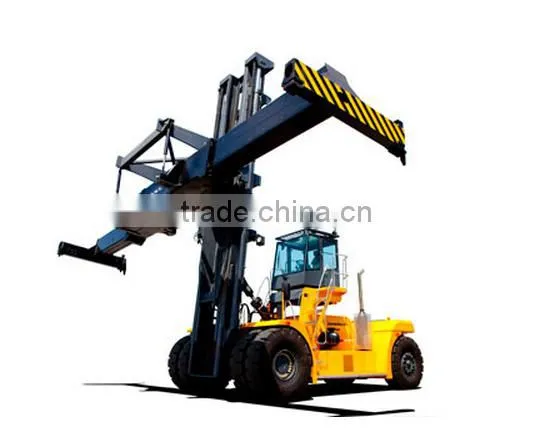

Diesel Forklift for Sale, 38tons Stacker for Seaport

Diesel Forklift for Sale, 38tons Stacker for Seaport thumbnail-1
Diesel Forklift for Sale, 38tons Stacker for Seaport photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shanghai, China
Brand Name:
lonking
Contact Supplier Request Quote Chat Now
Guangzhou Zhongda Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai/guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Shanghai, China
Brand Name lonking
Model Number LG420FC5
Type Other, diesel fork lift
Power Souce Diesel Engine
Rated Loading Capacity 38ton
Max. Lifting Height 13850mm
Min. Lifting Height 30mm
Fork Length 1500mm
Fork Width 80mm
Overall Dimensions 10400*6042*4600mm
Certification CE

diesel forklift for sale, 38tons stacker for seaport
  Safe, Powerful, Ergonomical!
Lonking offers you 3-wheel and 4-wheel electric forklift from 1.3T to 3.5T, with AC and DC motor optional, and adopting ZAPI & Curtis Control, powerful performance and ergonomical design. Chinese electric forklift

Logistics Equipment LG420FC5 features:

The Perfect Combination of Advanced Imported Engine and Advanced Hydraulic System.
Technological Breakthrough! Achieve the Best Matching Between the Imported Engine and the Hydraulic System.
The Extraordinary Strength of Structural Components Provide Unbelievable Working Capability.
High Strength Lifting Device Improves Safety.
Cab is Designed Elegantly from the Overall to the Detail

Item   LG420FC5
Rated Payload Kg 38000-35000
Max. Layers of Stacking   4×9'6'' 4.5×8'6''
Mast Tilting Angle(Forward/Backward) ° 3°/10°
Max. Travel Speed (with Load) Km/h 24
Max.Lift Speed(with/without Load) mm/s 210/260
Max. Lowering Speed (with Load) mm/s 400
Max. Gradeability (with Load) % 30
Min. Turning Radius mm 7500
Front Axle Load (with/without Load) Kg 99800/43800
Rear Axle Load (with /without Load) Kg 8000/26000
Max.Traction Force KN(2Km/h) 280
Operating Weight Kg 69800
Number of Wheels (Front/Rear)   4/2
Tire Type   18.00-25-40PR
Engine Manufacturer / Model   SCANIA DC12 50A
Rated Power KW(hp)/rpm 272(370)/2100
Peak Torque Nm/rpm 1572/1500
Transmission   DANA(CLARK) TE27
Gear(Foward/Reverse)   4/4
Axle   KESSLER D102
Fuel Tank Volume L 450
Hydraulic Oil Tank Volume L 590



Item

 LG420FC5
A(Overall Length) 10400mm
B(Wheel base) 5500mm
C(Load Center Distance) 1220mm
D(Track Width, Rear) 2612mm
E(Track Width, Front) 3030mm
F(Overall Width of the Machine) 4150mm
G(Overall Width of the Lifting Device) 6042mm
H(Overall Height of Machine) 4660mm
H1(The Min.Height from the Ground to the Lock) 2340mm
H2(Mast Heigh t at Upright) 9747mm
H3(Max. Lifting Height) 13850mm
H4(Overall Height When the Mas t is Ful ly Extended) 16050mm


all kinds of fork lift,diesel/electric fork lift,from1ton to 16tonsdiesel forklift for sale, 38tons stacker for seaportdiesel forklift for sale, 38tons stacker for seaportdiesel forklift for sale, 38tons stacker for seaportdiesel forklift for sale, 38tons stacker for seaportdiesel forklift for sale, 38tons stacker for seaportdiesel forklift for sale, 38tons stacker for seaport
