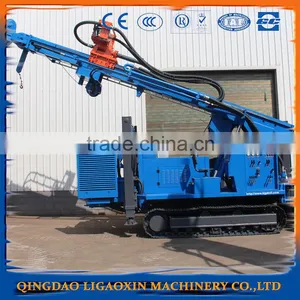

Help CenterCheap 500 m Water Well Rig With High Speed Hydraulic System.
Related Products
-
The Low Price Water Well Drilling Machine With Different Well.US$ 25,000 - 25,900MOQ: 1 Set -
Export 400 m Water Well Drilling Machine With Good Price.US$ 60,000 - 67,200MOQ: 1 Set
-
The Max Drilling Hole Diameter 300 mm Drilling Rig for Water Well.US$ 60,000 - 67,800MOQ: 1 Set
-
Drilling Depth 180 m Portable Drilling Rig With Low Price.US$ 25,000 - 30,000MOQ: 1 Set
-
Excellent Price Water Well Drilling Machine With Depth 300 m.US$ 54,800 - 58,100MOQ: 1 Set
Why do you choose us?
1.We will give the best price with you.
2.Our machine is passed international standard,ISO,SGS,CE certification.
3.If is order, We will delivery in timely.

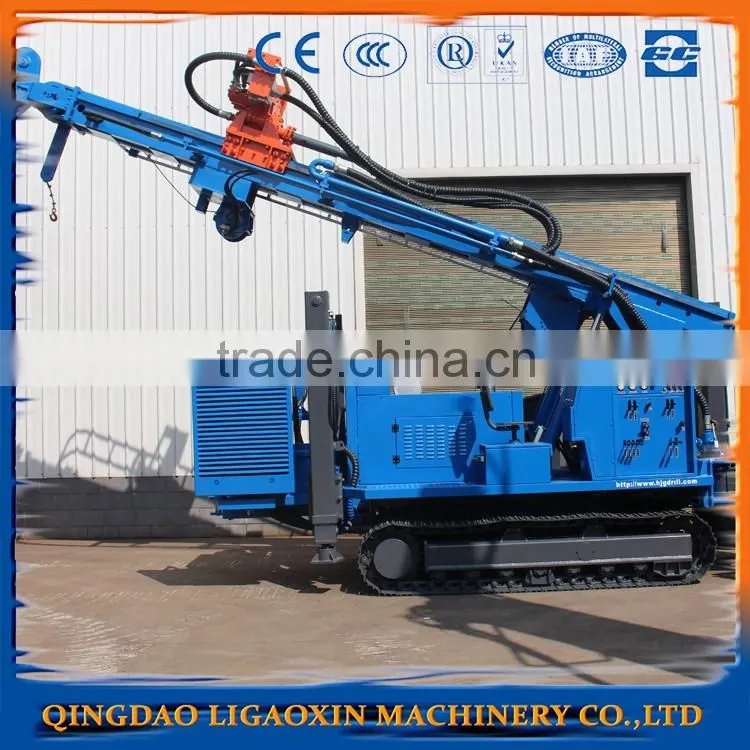

LGX-W500 Water Well Drilling rig
Water well drill rig has high rotation unit torque and lifting power. It is widely used in construction ,water well power station ,geothermal and field reconstruction etc .
Advantage
1.Proved component quality, widely applicable in different well drilling.
2. Hoist can lift drill steel and auxiliary up to 200KN that greatly reduce the workload of the operator.
3.Equipped with two speed tramming motor to adapt to all road conditions.
4.Feeding and lifting can be switched to fast or slow mode to increase drilling efficiency. Two rotation speed adapts different hole size and geological conditions
Component
1.Simple and flexible positioning structure
2.Integrated control panel
3.High torque rotation unit can switch between high and low mode. Torque up to 4500Nm.It is widely used in large hole DTH drilling and pipe casing.
4.Manual positioning, simple and reliable.
5.Optional manual or hydraulic aiding derrick, easy for embarking and getting off without crane.
LGX-W500 Technical specification
| Style | water well drilling rig |
| Model | LGX-W500 |
| Aperture | 130-350mm |
| Drilling depth | 500m |
| Rotation torque | 4250-8500N.m |
| Rotary speed | 90-180Rpm |
| Thrust capacity | 60KN |
| Feed stroke | 5300mm |
| Lifting capacity | 200KN |
| Travel speed | 3km/h |
| Grade ability | 25° |
| Rising height from ground | 300mm |
| Wind pressure | 1.45-3.5Mpa |
| Air consumption | >25m³/min |
| Engine power | 132KW |
| Dimension | 8085x2250x3200mm |
| Gross weight | 12.5T |
Field Case
Other Production Display
About Us
Qingdao Ligaoxin Machinery Co., Ltd. is a sales and aftersales service as one of the main scientific and technological company, has long been committed to the air compressor industry and the development of drilling industry. And with many famous brand enterprises to establish a good and stable partnership, forming a cooperative mechanism with strong vitality, interdependence and common development.
The company believes in: "quality first, customer first" principle, with a strong network of cooperation, leading technology, rich experience in the industry and excellent product quality, affordable price, professional standards of aftersales service and modern marketing management concept, rapid development and expansion, the product has been widely recognized and approved.
Let users enjoy the quality and reliable, costeffective, service perfect product is our goal, we created adynamic and cohesive marketing design and maintenance team, to provide customers with timely, quality and efficient services, to help customers improve competitive advantage, bring
rationalization and maximize the investment benefits, achieve a wonderful win- win, and for the "Made in China" to contribute our strength.
Corporate culture: innovation, cooperation, win-win.
Business philosophy: in good faith principle, industry and technology oriented , to win through good service.
