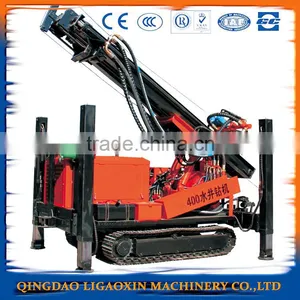

LGX-W400 Water Well Drilling rig
LGX-W400 water well drill rig has high rotation unit torque and lifting power. It is widely used in construction ,geothermal ,water well station and field reconstruction etc .
Advantage
1. Light weighted, small profile, easy to access narrow jobsites.
2. Simple design but toque and lifting force can be guaranteed
Component
1.Simple and flexible positioning structure

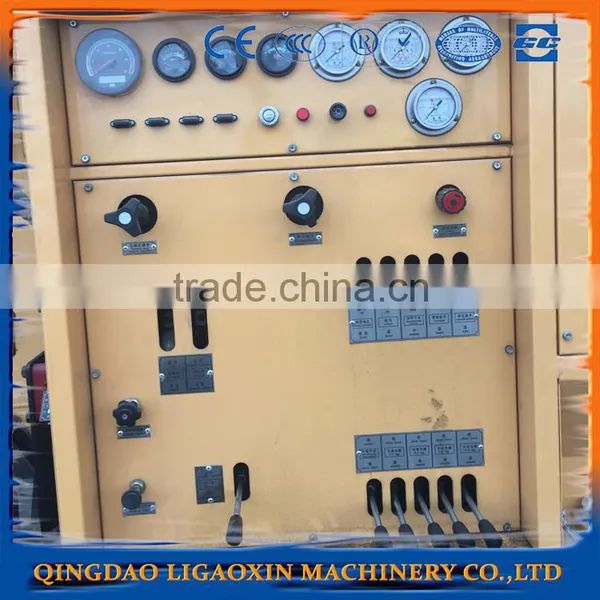

2.Integrated control panel
3.High torque rotation unit can switch between high and low mode. Torque up to 4500Nm.It is widely used in large hole DTH drilling and pipe casing.
4.Manual positioning, simple and reliable.
5.Optional manual or hydraulic aiding derrick, easy for embarking and getting off without crane.
LGX-W400 Technical specification
| Style | water well drilling rig |
| Model | LGX-W400 |
| Aperture | 110-330mm |
| Drilling depth | 400m |
| Rotation torque | 4150-7500N.m |
| Rotary speed | 80-120Rpm |
| Thrust capacity | 60KN |
| Feed stroke | 4300mm |
| Lifting capacity | 175KN |
| Travel speed | 3.0km/h |
| Grade ability | 25° |
| Rising height from ground | 300mm |
| Wind pressure | 1.45-3.5Mpa |
| Air consumption | >22m³/min |
| Engine power | 93KW |
| Dimension | 6900x2200x3100mm |
| Gross weight | 11T |
