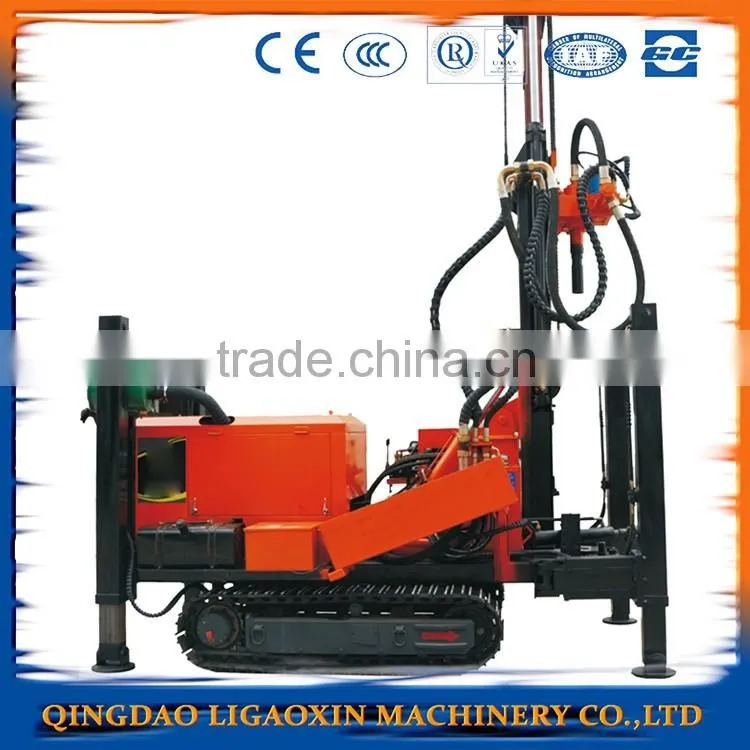

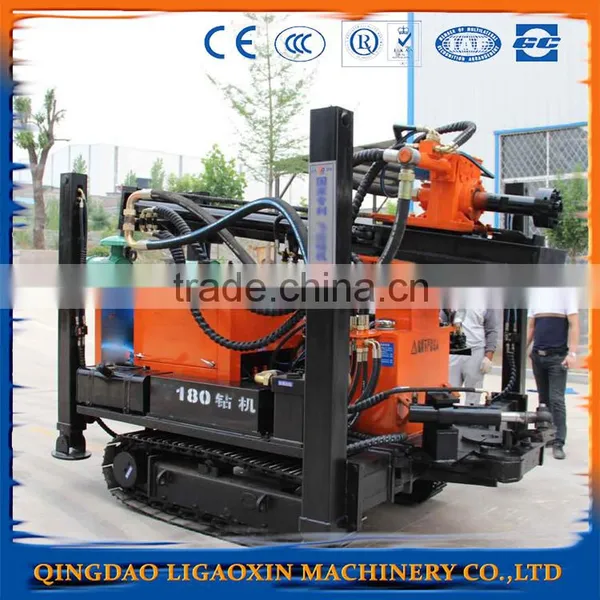

Help CenterDrilling Depth 180 m Portable Drilling Rig With Low Price.
Related Products
-
Excellent Price Water Well Drilling Machine With Depth 300 m.US$ 54,800 - 58,100MOQ: 1 Set -
Water Well Drilling Rig With 400 m for Water Well Station Construction.US$ 60,000 - 64,800MOQ: 1 Set
-
Depth Hole and Cheap Water Well Drilling Machine.US$ 68,000 - 69,300MOQ: 1 Set
-
Water Well Drilling Rig With CHINA LEGOS Brand.US$ 25,000 - 26,600MOQ: 1 Set
-
Stable Quality 300 m Legos Water Well Drilling Machine.US$ 54,800 - 56,600MOQ: 1 Set
Main Specification:
1.Water well drilling rig with all water well station of construction engineering.
2.Adopt to full hydraulic system.
3.High efficiency dry dust collector.
Advantage
1. Light weighted, small profile, easy to access narrow jobsites.
2. Simple design but toque and lifting force can be guaranteed.
Specification
Main Parameters
| style | Water well drilling rig |
| model | LGX-W180 |
| Aperture | 100-219 mm |
| Drilling depth | 180 m |
| Rotation torque | 3000-5500N.M |
| Rotary speed | 60-120rpm |
| Thrust capacity | 40KN |
| Feed stroke | 2000 mm |
| Lifting capality | 70KN |
| Travel speed | 2.5km/h |
| Grade ability | 25° |
| Rising height from ground | 250 mm |
| Wind pressure | 1.45-2.5 Mpa |
| Air consumption | >12m³/min |
| Engine power | 56KW |
| Dimension | 4200X1550X2600 mm |
| Gross weight | 3.5T |
Application
Certification
Our per machine is all passed own factory's test, and make sure production quality , Our product is according to international standard, Such as ISO,CE and CQC certification.give you the best machine for customer.
Pictures with customers
For drilling rig and crew air compressor,We have many year experience with drilling rig machine and crew air compressor, we can give a good design with all engineering .we have top design style in all over world.
Factory photos
Field Cast
About Us
Qingdao Ligaoxin Machinery Co., Ltd. is a sales and after-sales service as one of the main scientific and technological company, has long been committed to the air compressor industry and the development of drilling industry. And with many famous brand enterprises to establish a good and stable partnership, forming a cooperative mechanism with strong vitality, interdependence and common development.
The company believes in: "quality first, customer first" principle, with a strong network of cooperation, leading technology, rich experience in the industry and excellent product quality, affordable price, professional standards of after-sales service and modern marketing management concept, rapid development and expansion, the product has been widely recognized and approved.
Let users enjoy the quality and reliable, cost-
effective, service perfect product is our goal, we created adynamic and cohesive marketing design and maintenance team, to provide customers with timely, quality and efficient services, to help customers improve competitive advantage, bring
rationalization and maximize the investment benefits, achieve a wonderful win- win, and for the "Made in China" to contribute our strength.
Corporate culture: innovation, cooperation, win-win.
Business philosophy: in good faith principle, industry and technology oriented , to win through good service.
