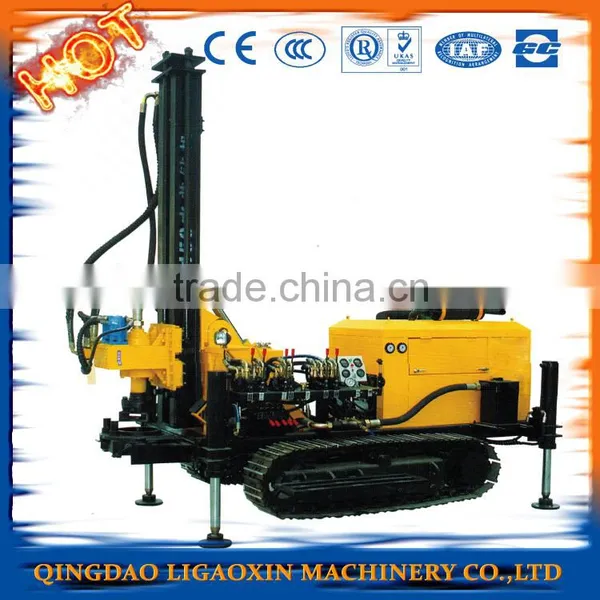

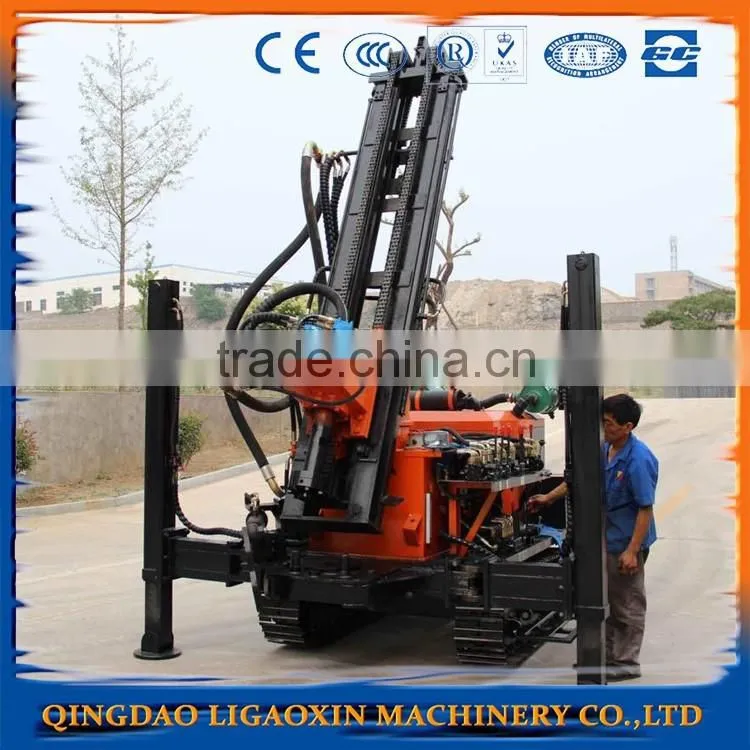

LGX-W180 Water Well Drilling rig
LGX-W180 Characterized light and flexible, widely used in civil engineering
Advantage
1. Light weighted, small profile, easy to access narrow jobsites.
2. Simple design but toque and lifting force can be guaranteed
Component
1.Simple and flexible positioning structure
2.Integrated control panel
3.High torque rotation unit can switch between high and low mode. Torque up to 4500Nm.It is widely used in large hole DTH drilling and pipe casing.
4.Manual positioning, simple and reliable.
5.Optional manual or hydraulic aiding derrick, easy for embarking and getting off without crane.
LGX-ZSJ180 Technical specification
| Style | water well drilling rig |
| Model | LGX-W180 |
| Aperture | 100-219mm |
| Drilling depth | 200m |
| Rotation torque | 4000-6500N.m |
| Rotary speed | 60-110Rpm |
| Thrust capacity | 50KN |
| Feed stroke | 3000mm |
| Lifting capacity | 90KN |
| Travel speed | 2.5km/h |
| Grade ability | 25° |
| Rising height from ground | 250mm |
| Wind pressure | 1.45-2.5Mpa |
| Air consumption | >12m³/min |
| Engine power | 56KW |
| Dimension | 4200x1550x2600mm |
| Gross weight | 3.5T |
