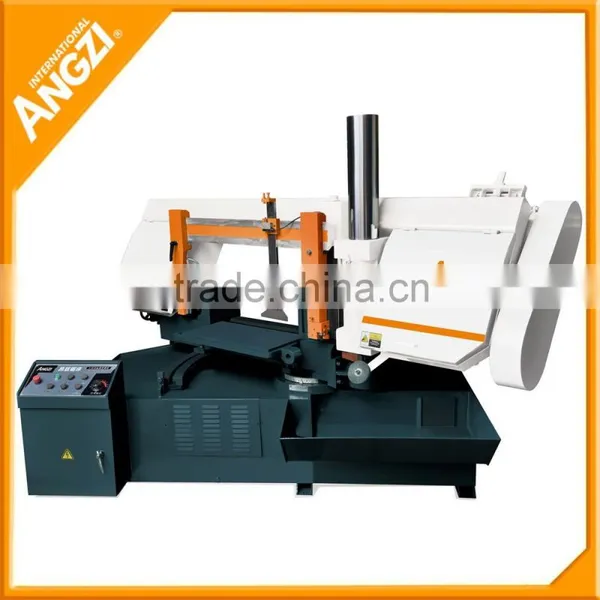

EC-4240Z Angle Cut 45 Degree Band Saw Machine
EC-4240Z Band Saw Machine Performance:
1.Double-column structure.
2.Hydraulic pincers clamping.
3.Reasonable structure of guiding seat ensures correct guiding of the guiding block,extends
service life of the saw blade and increases precision.
4.Hydraulically controlled sawing feeding.
5.Possible for customized manufacture of automatic tensioning and hydraulic tensioning
of saw blade.
6.Fast forward work into the automatic conversion automatic adjust the working height,
along with cutting the size of the workpiece , and improve work efficiency.
Technical Parameters:
Type |
EC-4240Z |
Max Process Standard (mm) |
90 ° Round:φ280 Square:500*400 45 ° Round:φ280 Square:350*400 |
Process Speed(m/min) |
22/35/50/75 |
Saw Band Specification (mm) |
41*1.3*5430 |
Main Motor Output(kw) |
4.0 |
Oil Pump Motor Power(kw) |
0.75 |
Coolant Motor(kw) |
0.04 |
Working Clamping Method |
Hydraulic pincers |
Saw blade Tensioning From |
Manual |
Main Drive |
Worm gear drive |
Working Feeding |
Auxiliary roller table |
Dimension(LxWxH) |
2200*1200*1500 |
Weight (kg) |
1300 |
Different cutting materials:
Used for cutting various metal materials(Steel pipe/bar, Iron, Aluminum,etc.)
Cutting Tube:
Electronic Feeding Frame: Ordinary Feeding Frame:

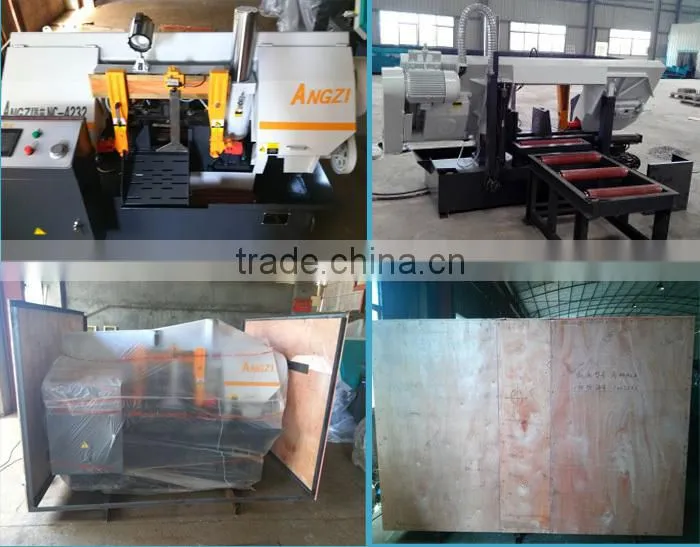

Band Sawing Machine Details:
Experienced in selling band saw machine to more than 40 different countries,
we pack and load the machines well and prevent any damages during transportation.
Choice 1: Nude packing & Plastic protective cover.
Choice 2: Wooden case.
1. Located in Shanghai city, Building area 5000m².
2. 6 years band saw machine production experience.
3. High efficiency,High precision and High stability,continuously satisfy customers' demands.
ANGZI Factory picture
Exhibitions:
1.We test the Band saw machine to ensure the good quality.
2.We check the flatness degree to see if it is up to standard.
3.We also do some cutting experiments to check its using function.
4.Professional manufacturing assembly line.
5.Very strict quality control.
Q1: What is the voltage and Hertz in your country?
A1:In China,the Voltage is 380V(3 Phase),the Hertz is 50HZ, we can change the voltage and
Hertz according to your requirment(also have 220V).
Q2.Can I have your quotation? & How to get suitable size band saw machine?
A2: First, please inform us which material you would like to cut and its details includes size,
Thickness,solid or hollow, round or square,ect. Without these parameters, we are not able to
recommend you the suitable machine.
Thank you for your attention to Shanghai ANGZI company,any question about band saw machine,Please contact us:
