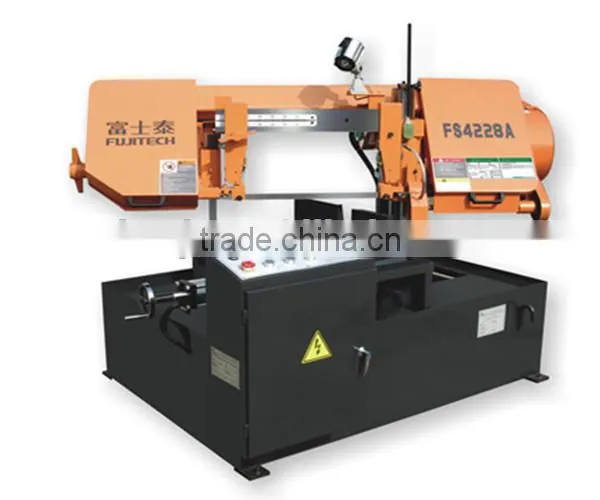

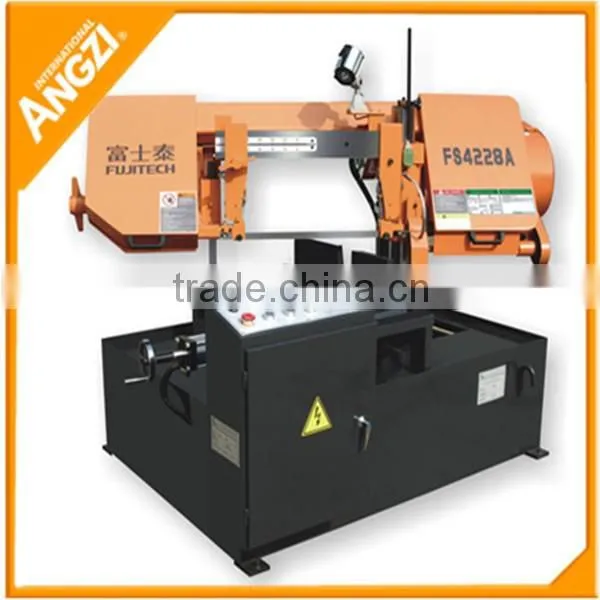

Fujitech FS4228A Corner Cutting band saw aluminum cutting:
Specification of band saw aluminum cutting:
|
Item Model |
FS4228A |
FS4230A |
FS4240A |
||||||||
|
Capacity (MM) |
Cutting angle |
0° |
+30° |
+45° |
0° |
+45° |
+60° |
0° |
+45° |
+60° |
|
Round |
280 |
280 |
250 |
300 |
255 |
175 |
400 |
400 |
240 |
||
Square |
450*280 |
370*280 |
250*280 |
450*300 |
255*300 |
175*300 |
600*400 |
400*400 |
240*400 |
||
|
Blade Speed (M/MIN) |
20,35,45,60,80 |
24,36,45,54,75 |
18,30,45,60,75 |
||||||||
Blade Size (MM) |
L3950*W27*T0.9 |
L4600*W34*T1.1 |
L5780*W41*W1.3 |
||||||||
Blade Tension |
Handle Tension/Release |
Handle Tension/Release |
Handle Tension/Release |
||||||||
|
Motor |
Blade Drive (KW) |
2.2 |
3.0 |
4.0 |
|||||||
|
Hyd.pump (KW) |
0.75 |
0.75 |
0.75 |
||||||||
Coolant Pump(KW) |
0.04 |
0.04 |
0.09 |
||||||||
Oil Scupper Volume |
Hyd Fluid(L) |
30 |
30 |
40 |
|||||||
Cooland Pump(L) |
60 |
60 |
80 |
||||||||
Weight/ KG |
1250 |
1600 |
2150 |
||||||||
Floor Space (MM) |
L2100*W1450*H1450 |
L2300*W1500*H1570 |
L2950*W1700*H1740 |
||||||||
Function and Characteristics of band saw aluminum cutting:
1.Turn Angle cutting from 0 degree to 45 degree.
2.Moving the workpiece and positioning by Manual control.
3.Electric driven movable rack,can move the workpiece quickly and correctly to
complete the positioning work(Electrical feeding)
4.Specific Double current valve Oil pressure system,Cutting down speed controlled by Speed Adjusting Valve.
5.Single hydraulic cylinder design,cooperating with big diameter column and overlong sliding sleeve(including self lubricating bearing)
6.Water cooling constant temperature system for whole oilway makes cutting more stable

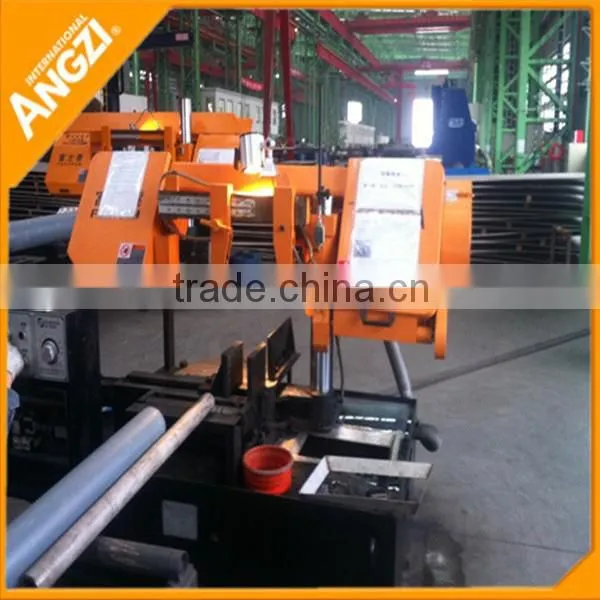

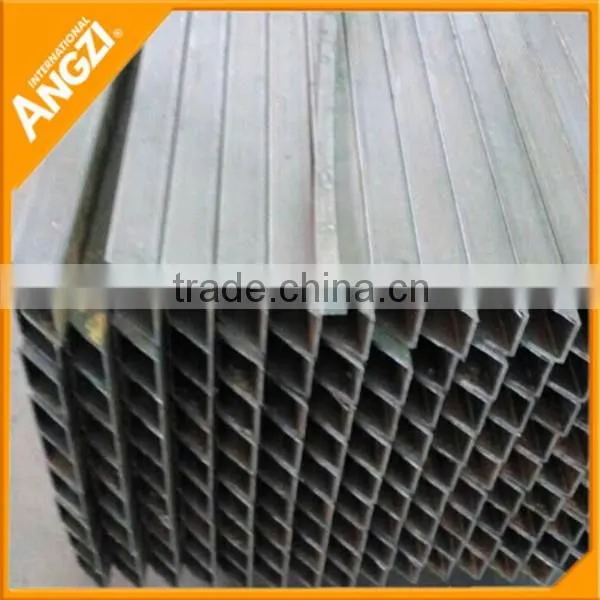

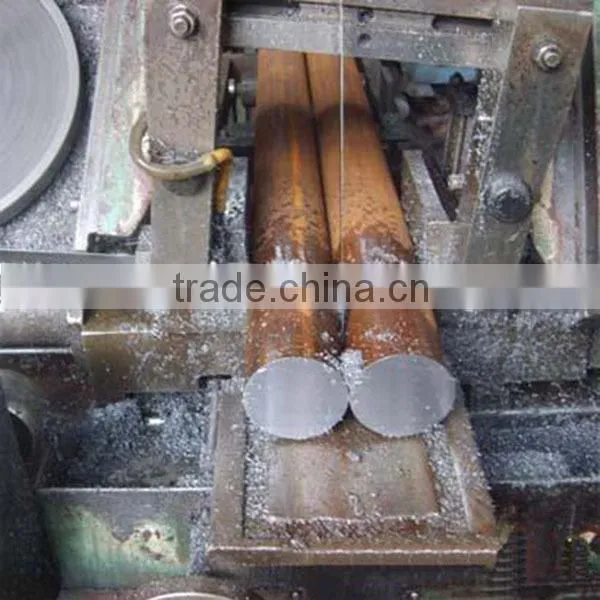

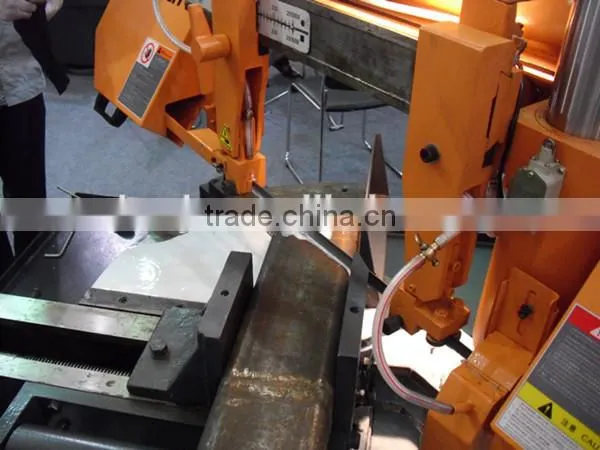

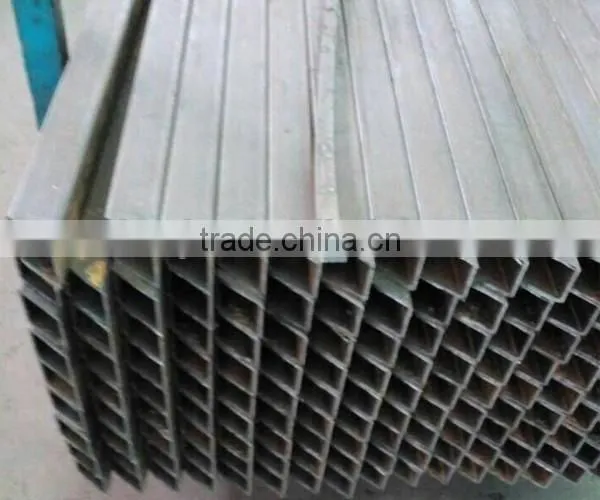

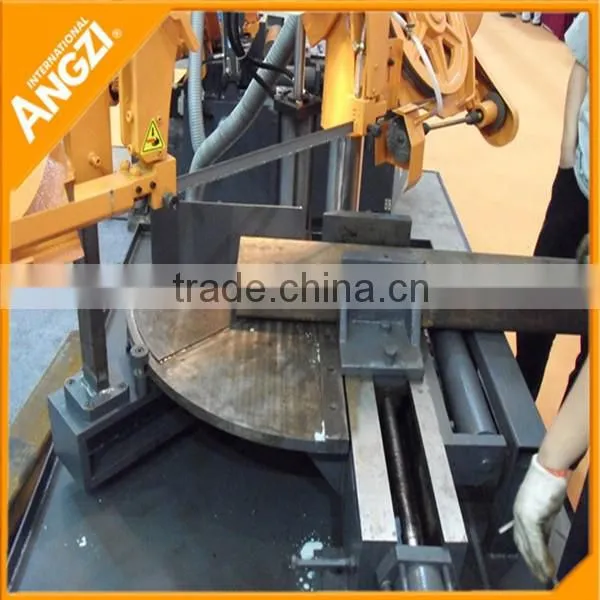

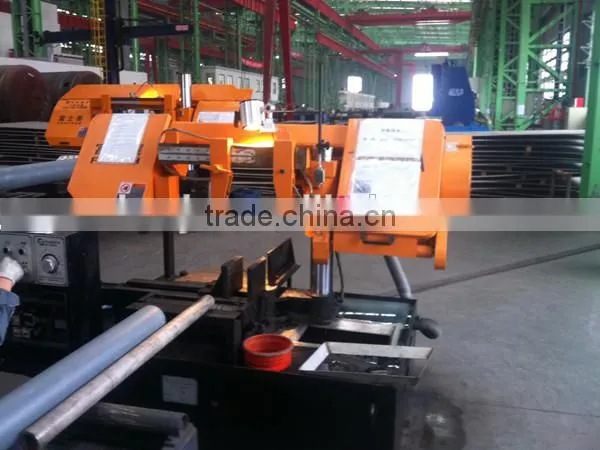

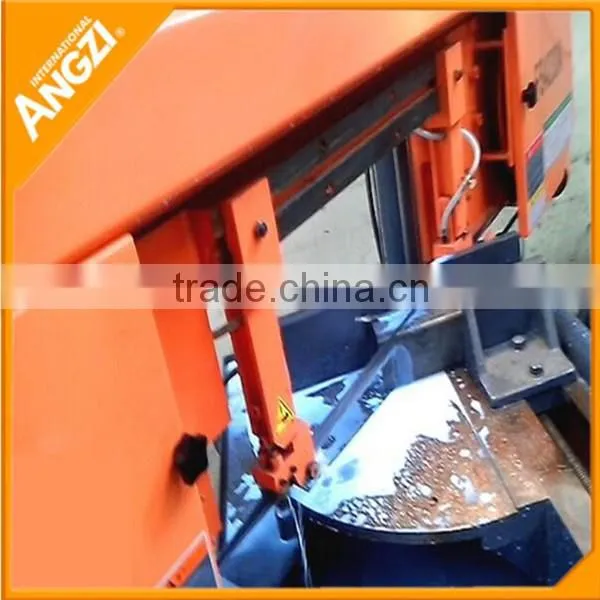

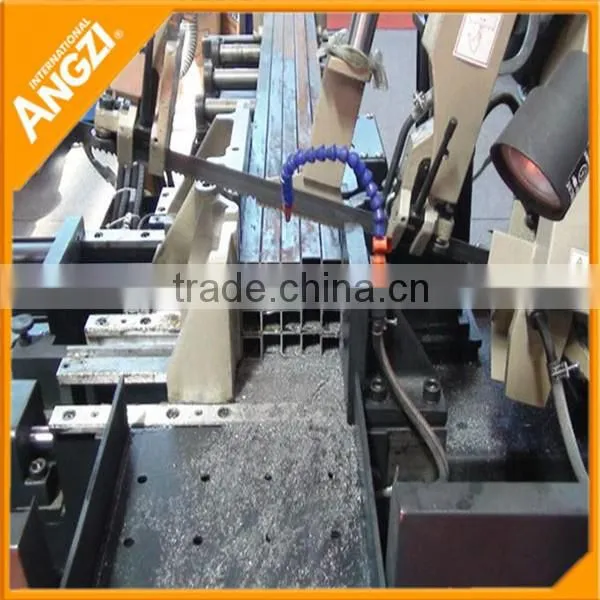

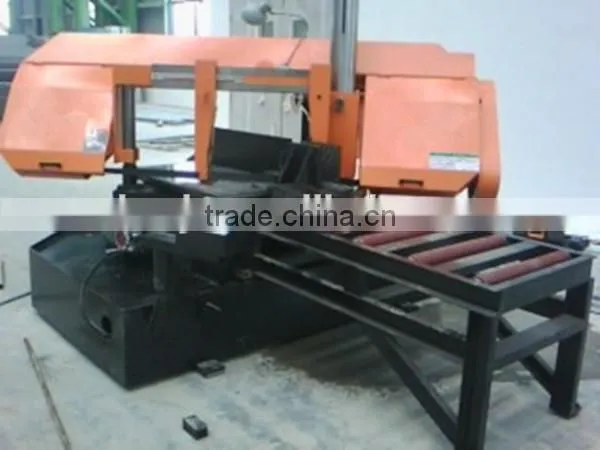

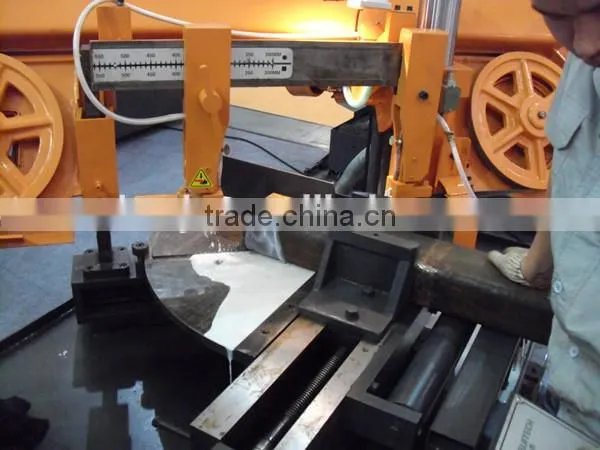

Details of band saw aluminum cutting:
ANGZI International: ANGZI services all over the world
Floor Space:more than 50000 Square meter.
Monthly Production:more than 300 sets
Our products are with high quality and competetive price
Cetificate:

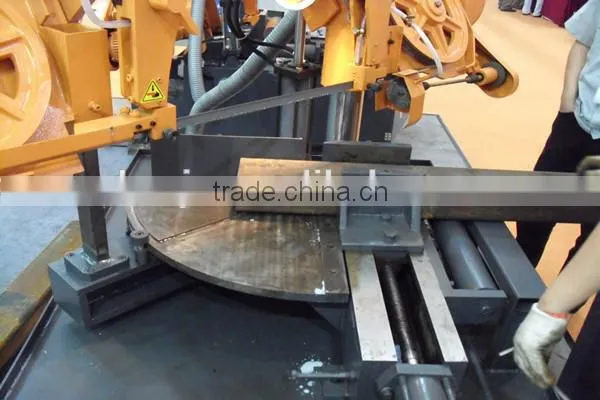

Exhibition:

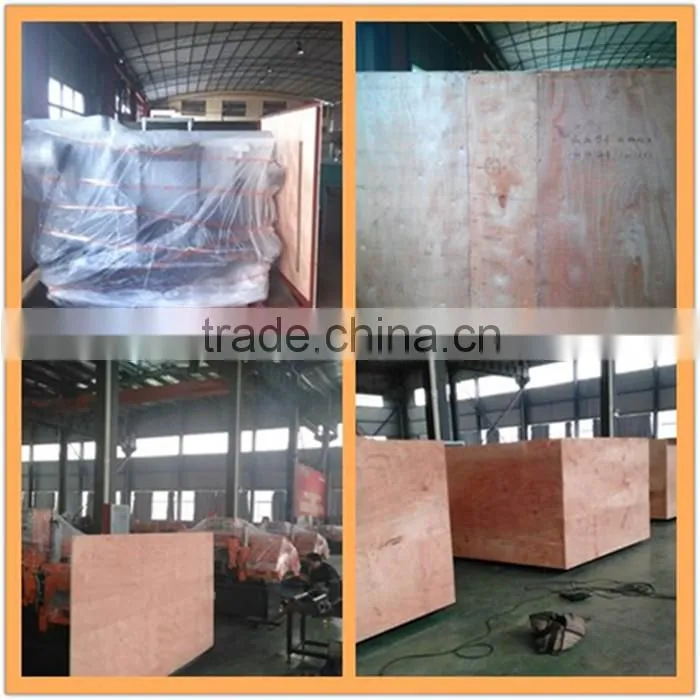

1.Normal Packing is thin film.(Plastic Menbrane)
2.Go on the bulk board,more are needed wooden package
1.We promise all the inquiries have been replied in 24 hours
2.Delivery time is 15-30 days after sign the contract.
3.We offer the professional after-sale team service
1.What about the payment terms?
We usually accept 100%TT or 30%TT for deposit and 70%TT for balance.
2.What about the delivery time?
15-30 days after received the deposit
3.What about your shipping ways?
It depends on the choice of clients
4.What about the package?
Our normal packing is thin film,but go on the bulk board for shipping,
it need to wooden case.
