Specifications
Multi-core General Rubber Sheath Flexible Cable IEC 60245YZ model rated voltage Uo/U is 300/500V, YC model is 450/750V
rubber

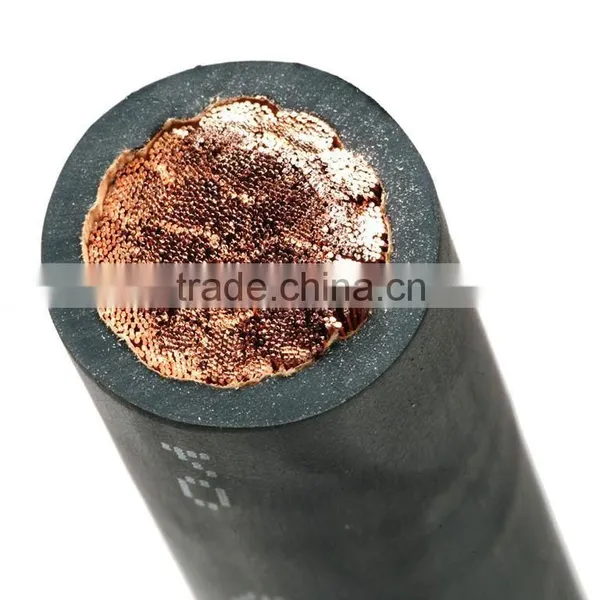

Multi-core General Rubber Sheath Flexible Cable IEC 60245
Detailed Product Description
1. Usage:Rubber sheath cable is suitable for rated AC vo1tage 450/750V or below domestic applies, power-operated tools and various portable electric Equipments
2. Working temperature:
1) YZ model rated voltage Uo/U is 300/500V, YC model is 450/750V
2) Long time allow working temperature of wire core is not more than 650C
3) W model cable has the property of durability and suitable for outdoor touching of greasy dirt
4) ZR model cable has the property of fire-resistance
3. Model name and usage:
Model |
Name |
Rated Voltage(V) |
Section Area(mm2) |
No. of Cores |
Usage |
YQ,YQW |
Light model rubber sheath flexible cable |
300/500 |
0.30.5 |
2,3 |
Used for light portable electric equipment and tools |
IEC60245-53YZ |
Middle model rubber sheath flexible cable |
300/500 |
0.75--6 |
2,3,4,5 |
Used for various portable electric equipment and tools |
IEC60245-57YZW | |||||
YC |
Heavy model rubber sheath flexible cable |
450/750 |
1.5--400 |
1 |
Used for various portable electric equipment which can bear large mechanical force effect |
1.5--95 |
2 |
||||
1.5--150 |
3 |
||||
IEC60245-66YCW |
1.5--150 |
4 |
|||
|
2.5150 + 1.5--50 |
3+1 |
||||
1.5--25 |
5 |
