Specifications
1. electrical copper wire2.Overall jacket-PVC
3.10 years' warranty
4. ISO9001 and 14001 certified

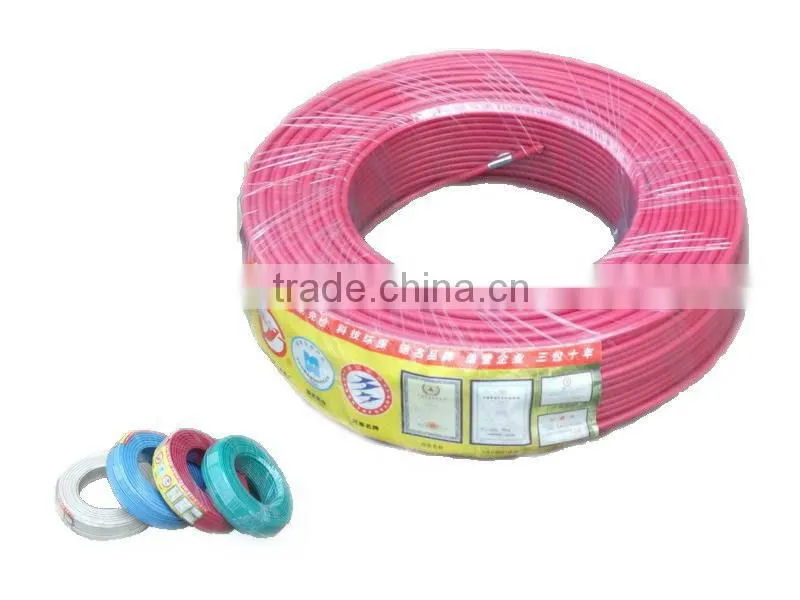

Copper core PVC insulated electrical copper wire
Description of twisted pair electric wire:
1. Reference standard:UL Subject 758,UL 1581,2556 & CSA C22.2 No.210.2
2. Tinned or bare,stranded copper conductor , CCA or CCS
3. Colour-coded PVC insulation
4. Uniform insulation thickness to ensure easy stripping and cutting
5. Passed UL VW-1 & CSA FT1 vertical flame test
6. Resistant to acids,oil,alkali,noisture and fungus
Application of twisted wire:
• Used for general purpose,building wire for power,lighting and control wiring.
Packing :
50~100meters/roll, 1 roll/PE film, 2~4 rolls/carton boxes
Delivery time :
20 days more or less after confirm t/t deposit
Advantage of our factory:
1. More than 7 years of producing many kinds of electric wires and cables
2. CCC/VDE/UL/Rohs certificates
3. Good quality,class 5 copper wire conductor and pure new PVC insulation.
4. Small MOQ 1000 meters, good service.
5. OEM are welcome. We can also produce standard or non-standard wires and cables.
More twinsted pair electric wires can be produce as below per your request:
| Cable | ||||
| Conductor | Insulation thickness | Overall Diameter | Minimum insulation resistance at 70°C | |
| Sectional Area(mm²) | No./φmm | mm | mm | mm |
| 0.5 | 28/0.15 | 0.6 | 2.6 | 0.013 |
| 0.75 | 24/0.2 | 0.6 | 2.8 | 0.011 |
| 1 | 32/0.2 | 0.6 | 3 | 0.010 |
| 1.5 | 48/0.2 | 0.7 | 3.5 | 0.010 |
| 2.5 | 77/0.2 | 0.8 | 4.2 | 0.0090 |
| 4 | 56/0.3 | 0.8 | 4.8 | 0.0070 |
| 6 | 84/0.3 | 0.8 | 6.3 | 0.0060 |
| 10 | 140/0.3 | 1 | 7.6 | 0.0056 |
| 16 | 126/0.4 | 1.2 | 8.8 | 0.0046 |
| 25 | 196/0.4 | 1.2 | 11.0 | 0.0044 |
