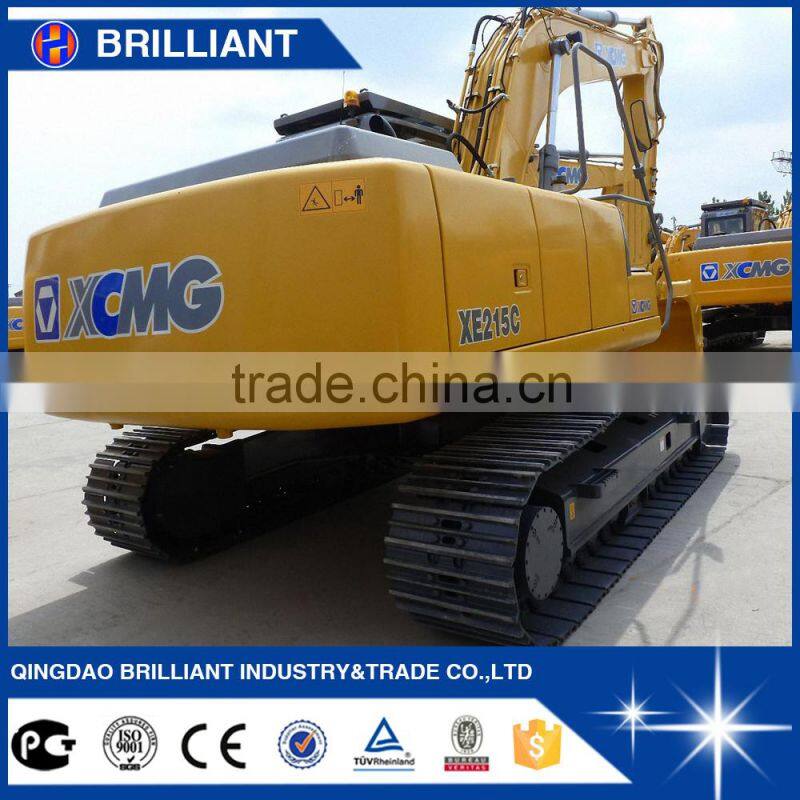

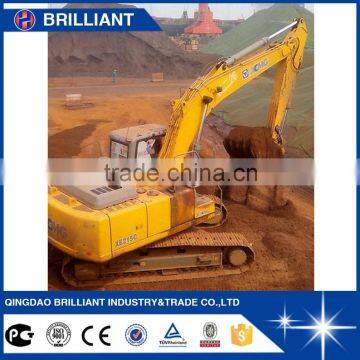

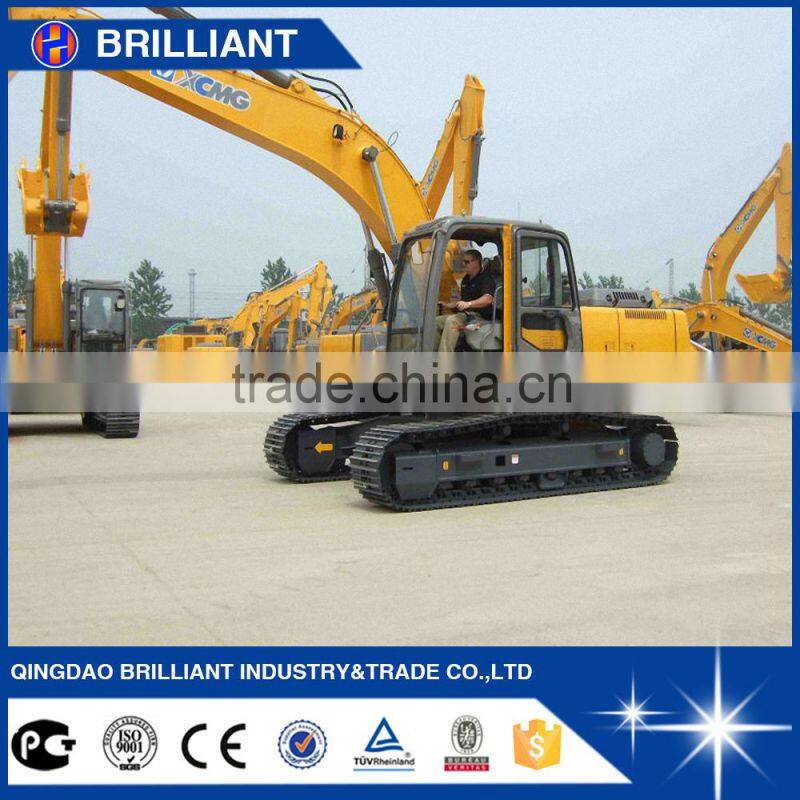

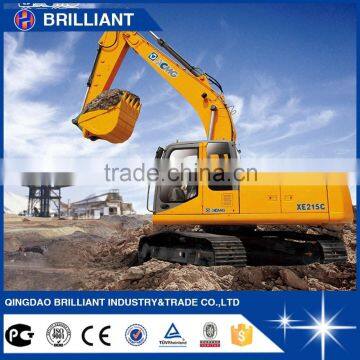

China 20 Ton Excavator witrh Excavator Swing Gear and Excavator Windshield
- 500 Set / Sets per Month
- Qingdao Shanghai Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
China Manufacturer 14 Ton Track Excavator For Sale Excavator Bucket Tyres Quality Choice
-
XCMG Big Excavator for Sale XE1300C
-
Chinese New 80 ton/90 ton/100 ton Crawler Excavator XE900C
-
XCMG 70ton Long Arm Excavator XE700C Excavator Made in China for Sale
-
Top Brand Big Excavator XE150D Excavator for Sale
-
Chinese New 0.8ton/1 ton Crawler Excavator YC08-8
Product Details
Place of Origin | Jiangsu, China | Brand Name | XCMG | |
Model Number | XE215C | Condition | New | |
Moving Type | Crawler Excavator | Operating Weight | 2,1500kg | |
Bucket capacity | 0.91m3 | Maximum Digging Height | 9,640mm | |
Maximum Digging Depth | 6,655mm | Machine Weight | 2,1500kg | |
Max Digging Radius | 9,925mm | Rated Speed | 5.5/3.5 km/h | |
Certification | ISO CE | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
China 20 Ton Excavator witrh Excavator Swing Gear and Excavator Windshield
1. The imported Isuzu engine with original packing has strong power, and can meet the requirements of high-efficient work.
2. Precise matching design with advanced energy conservation control can reduce the oil consumption of the machine.
3. Low emission meets the Europe II standard.
4. The adoption of new cooling fan and large-scale silencer lowers the noise of the machine.
5. The adoption of the advanced turbo charging technique increases the highland adaptability of the machine.
6. Automatic preheating system improves the working capacity in the low temperature.
7. Unique fan cover with the shape of hopper opening greatly improves the air supply of the engine and the radiating capacity of the system, guaranteeing the successive high-efficient work of the machine.
8. Restart prevention system effectively avoids the mis-operation, and improve s the use security of the machine.
Model | XE215C | ||
Bucket capacity | m³ | 0.91 | |
Standard bucket width | mm | 1186 | |
Operating weight | kg | 2,1500 | |
Dimension (in transportation) | Overall length | mm | 9,520 |
Overall width | mm | 2,990 | |
Overall height | mm | 2,985 | |
Min. ground clearance | mm | 485 | |
Engine | Model | ISUZU BB-6BG1TRP | |
Total displacement | L | 6.494 | |
Rated output power | KW/rpm | 106.5/1950 | |
Digging performance | Max. digging height | mm | 9,640 |
Max. dumping height | mm | 6,800 | |
Max. digging depth | mm | 6,655 | |
Max. vertical digging depth | mm | 5,695 | |
Max. digging radius | mm | 9,925 | |
Boom deflection angle: left/right | ° | ||
Min. slew radius | mm | 3,530 | |
Min. rear slew radius | mm | 2,750 | |
Bucket digging force | kn | 138 | |
Track type | Steel | ||
Track width | mm | 600 | |
Travel system | Track overall length | mm | 4,255 |
Wheel base | mm | 3,462 | |
Track gauge | mm | 2,390 | |
Travel speed (Gear I/II) | km/h | 5.5/3.5 | |
Gradeability | % | 70 | |
Slew speed | rpm | 13.3 | |
Bulldozing plate | Bulldozing plate (width) | mm | |
Bulldozing plate (height) | mm | ||
Lifting distance (GL up/down) | mm | ||
Hydraulic pump type | Piston pump×2 | ||
Fuel tank capacity | L | 360 | |
Hydraulic oil tank capacity | L | 220 |
1.Strong configuration, remarkable performance, strong power, high efficiency
2.Advanced hydraulic system
3.Good sturdiness and durability, high reliability, strengthening intensity of chassis and frame
4.Standard configuration with reinforced boom and arm
5.Increasing wear resistance of bucket
6.Strengthening upper slewing platform
7.Heavy counterweight
Compared with the same class machine type, the quality of the counterweight improves obviously, the stability of the machine is better.
8.Bush
The hinge pin joints of the boom and arm adopts high wear resistant and intense steel bush, which is durable.
9.Operating environment
Comfortable and safe cab with wide view
Easy control of operating handles
Intelligent operation and display
Convenient and fast maintenance
Qingdao Brilliant Industry & Trade Co., Ltd.
With 20 years experience in the field of engineering industry also under the support by XCMG which is the No. 1 Chinese construction machinery manufacturer, our products has been well recognized by the customers all around the world as the symbol of reliable performance, competitive price, advanced technology and sincere services.
Our Well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee total customer satisfactions, we could also offer OEM services
SGS Serial NO. | QIP-ASI145346 |
Audit Date | 2-Jul-14 |
Company Name | Qingdao Brilliant Industry & Trade Co., Ltd. |
Business Type | Manufacturer |
Year of Establishment | Mar 14,2014 |
Registered Capital | 83468.27 USD |
Products | Excavator, Wheel Loader, Bulldozer, Forklift and so on |
Number of Employees | 5~10 |
Main Markets | Africa, Asia,Europe,South America |
Sales Personnel: Grace
Tel: 0086-532-80907506
Fax:0086-532-82801885
Skype:brilliantmachinerygrace
Any comment&question,please contact with us freely!
We will try our best to meet your request!
Thanks for your valuable time!
