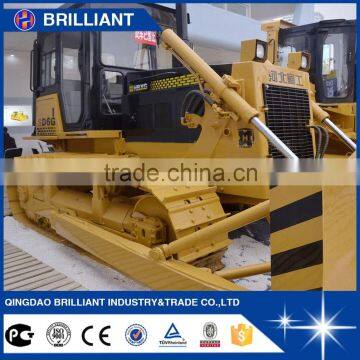

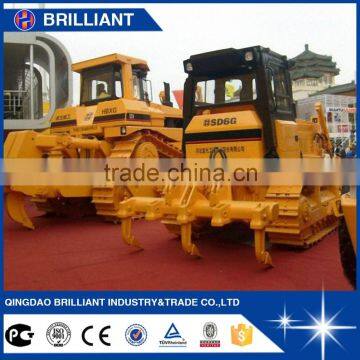

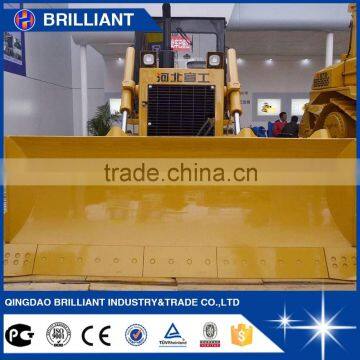

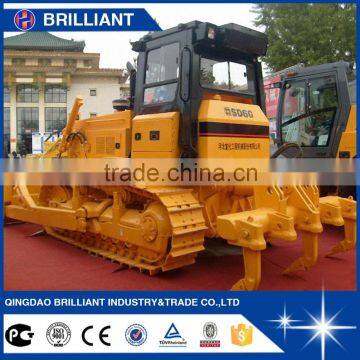

Low Price Factory Price Mini Crawler/track Dozer/bulldozer HBXG Model SD6G on Sale
US$ 50,000 - 80,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
HBXG
Model Number:
SD6G
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Shanghai Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Low Price Factory Price Mini Crawler/track Dozer/bulldozer HBXG Model T165-2 on SaleUS$ 50,000 - 80,000MOQ: 1 Set -
SD6G rc Bulldozers for SaleNegotiableMOQ: 1 Set
-
Bulldozer Brands HBXG Mini Bulldozer/Small Bulldozer SD6G For SaleUS$ 50,000 - 80,000MOQ: 1 Set
-
Construction Machinery the Price of Bulldozer D5 Bulldozer SprocketNegotiableMOQ: 1 Set
-
Bulldozer Brands HBXG Mini Bulldozer/Small Bulldozer SD8B For SaleUS$ 150,000 - 220,000MOQ: 1 Set
Place of Origin
Hebei, China
Brand Name
HBXG
Model Number
SD6G
Condition
New
Moving Type
Crawler Bulldozer
Machine Weight
16500kg
Dimension(Long * Breadth * High)
5037X3297X3077mm
After-sales Service Provided
Engineers available to service machinery overseas
Low price factory price mini crawler/track dozer/bulldozer HBXG model SD6G on sale
Product Description
1,SD6G bulldozer is 160 horsepower track-type dozer with hydraulic direct drive, semi-rigid suspended and hydraulic controls.
2,It is equipped with Shangchai C6121 diesel engine manufactured. The engine has the characteristics of big torque reserve coefficient and capacity against over-load.
3,The torque converter is a hydro-mechanical converter whose power is divided outside, which has the characteristics of wide high efficiency range.
4,Steering and braking can be controlled with the same control lever.
5,Braking system utilizes hydraulic boosting structure, which is convenient and labor-saving.
6,The final drive gear has the characteristics of large displacement coefficient value. This kind of design raises bearing capacity and prolongs the useful time.The final drive also utilizes the structure that its bearing clearance is free of adjustment, which is convenient for service.
7,The equalizer bar utilizes free lubricating structure to decrease service cost.
8,There are optional equipments like 3 shanks ripper, U-blade and so on.
| General Specifications | |||
| Blade | Straight and tilting | ||
| Ground pressure(kpa) | 55.23 | ||
| Min. ground clearance(mm) | 445 | ||
| Dozing capacity(m3) | 4.5 | ||
| Max. digging depth(mm) | 592 | ||
| Operation weight(kg) | 16500(without ripper) | ||
| Track gauge(mm) | 1880 | ||
| Blade width(mm) | 3297 | ||
| Overall dimensions(L×W×H)(mm) | 5037×3297×3077 | ||
| Undercarriage System | |||
| Type | Swing type of sprayed beam, suspended structure of equalizer bar. | ||
| Number of track rollers(each side) | 7 | ||
| Number of carrier rollers(each side) | 2 | ||
| Pitch(mm) | 203 | ||
| Width of shoe(mm) | 560 | ||
| Gear | |||
| 1st | 2nd | 3rd | |
| Forward (Km/h) | 0-4.00 | 0-6.90 | 0-10.80 |
| Backward (Km/h) | 0-4.80 | 0-8.40 | 0-12.90 |
| Engine | |||
| Engine Name | Shangchai C6121ZG55 | ||
| Rated revolution(rpm) | 1900 | ||
| Flywheel power (KW) | 119 | ||
| Max. torque (N.m/rpm) | 770/1400 | ||
| Rated fuel consumption (g/kw.h) | ≤215 | ||
| Implement Hydraulic System | |||
| Max. system pressure (MPa) | 15.5 | ||
| System output(L/min) | 178 | ||
| Pump type | Gears pump | ||
| Driving System | |||
| Torque converter | Outside separating combination. | ||
| Transmission | Planetary, power shift transmission with three speeds forward and three speeds reverse, speed and direction can be quickly shifted. | ||
| Steering clutch | Multiple-disc oil power metallurgy disc compressed by spring. Hydraulic operated. | ||
| Braking clutch | Brake is oil two direction floating band brake operated by mechanical foot pedal. | ||
| Final drive | The final drive are double reduction with spur gear and segment sprocket. | ||
Factory Pictures
Company Information
Qingdao Brilliant Industry & Trade Co., Ltd.
Qingdao Brilliant Industry and Trade Co., Ltd is a ISO9001, CE and BV certified professional manufacturer and authorized exporter specialized in construction machinery and industrial vehicle like excavator, forklift, wheel loader, bulldozer and so on...
With 20 years experience in the field of engineering industry also under the support by XCMG which is the No. 1 Chinese construction machinery manufacturer, our products has been well recognized by the customers all around the world as the symbol of reliable performance, competitive price, advanced technology and sincere services.
Our Well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee total customer satisfactions, we could also offer OEM services.
>> Audit Profile
| SGS Serial NO. | QIP-ASI145346 |
| Audit Date | 2-Jul-14 |
| Company Name | Qingdao Brilliant Industry & Trade Co., Ltd. |
| Business Type | Manufacturer |
| Year of Establishment | Mar 14,2014 |
| Registered Capital | 83468.27 USD |
| Products | Excavator, Wheel Loader, Bulldozer, Forklift and so on |
| Number of Employees | 5-10 |
| Main Markets | Africa, Asia,Europe,South America |
