AUPAL CNC Multi-Head Strip Type Drilling Machine

FOB Price

Negotiable / Set

1 Set(Min. Order)

Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China		Brand Name	AUPAL
Model Number	CNCDG

Product Description

Specifications

Weight: 2-4ton Rated Power: 2.5kw power source: flame / plasma cutting
control type: cnc control cutting
material: metal

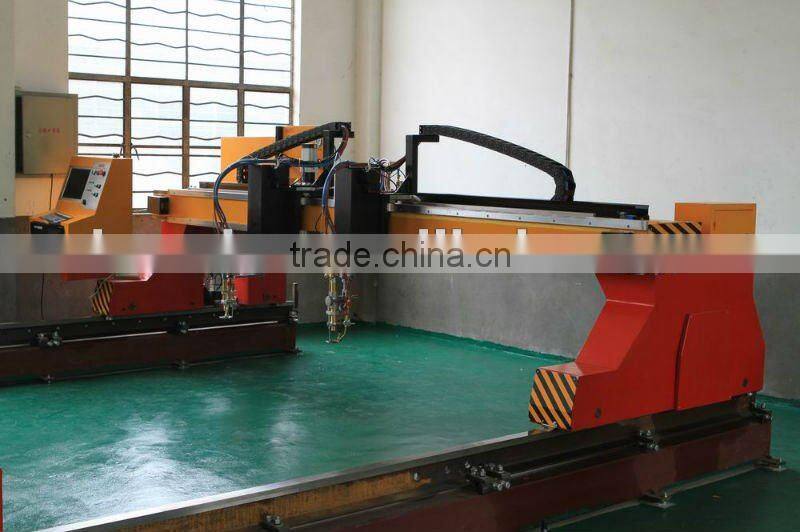

AUPAL Multi-head Strip Type CNC Cutting Machines are widely used in H-shape steel factory to service high precision, high efficiency and quality metal cutting.

Main features:

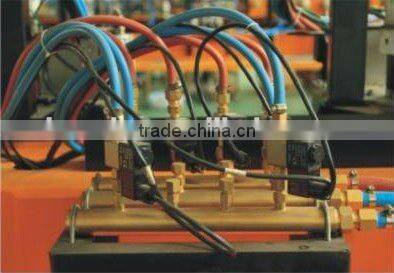

Longitudinal strip cutting torches are installed on the face of crossbeam. The cutting heads quantity is decided by clients. Max. 20 cutting heads can be installed on a cutting machine of 6 meters cutting width. Transverse cut torches can be installed on the back according to client's requirements.

Except manual height control, the longitudinal strip torches can be lifted individually or controlled as a group. There are individual control system on the front and back of the machine to control the corresponsive cutting parameters.

AUPAL Multi-head Strip Type CNC Cutting Machines can be installed CNC flame torches on the front and Longitudinal strip cutting torches on the back. It is a compound cutting machine with CNC cutting and multi-torches strip cutting.

1. Basic components

Machine specification	4000mm
Track length	14000mm
Capacitance height-regulating device	1set
CNC Flame torch	1set
Drive mode	Single drive
Driving system*dynamo	Japan Panasonic servo
CNC system	American Hypertherm
Gear box	Neugart Germany
Automatic Programming, Nesting software	FastCAM, Australia

2. Function components

Programming software

(FastCAM professional made in Australia)

1set

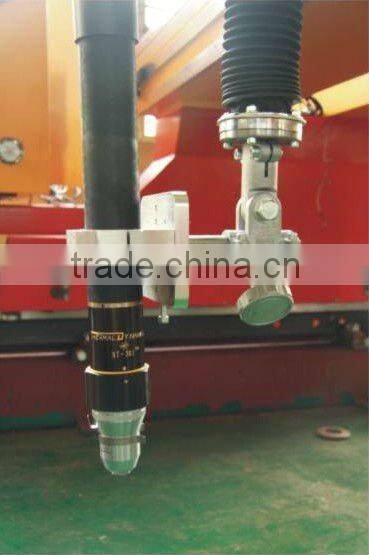

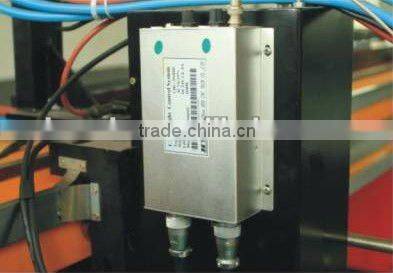

Motorized flame torch height capacitor sensor (China)

1set

Voltage sensor

1set

3. Main technical specifications

Max effective cutting width	3200mm
Max effective cutting length	12000mm
Rapid speed	0-9000mm/min
Flame cutting thickness	1-150mm
Automatic higher Precision	±1.0mm
Setting speed error	≤±5%
Flame cutting speed	50-750mm
Torch lifting distance	200mm
Straight line positioning precision	±0.2mm/10m
Straight line repeat precision	±0.2mm/10M
Complete machine synthesis precision(the synthesis photo as standard )length of side(4 sides)1000X1000 live wire speed 500-800mm/min
Length of a side (4 sides)	±0.5mm
Diagonal discrepancy/AD-BC	±0.5mm
Node discrepancy	±0.5mm
Back to the origin of deviation	±0.2mm
The deviation of along and reverse line	±0.2mm
Cutting surface roughness	Rz(um)=70+1.2a roughness for sight measure: 12.5
Verticality and gradient tolerance	μ(mm)=0.4+0.015a
Running non-straightness	Vertical line≤±0.2mm/effective length Horizontal line≤±0.2mm/effective length
Arcing time factor	80%
Lineation precision	≤0.5mm
Torch angle error	≤±0.5°

4. Working environment

Environmental temperature	0-50°C
Humidity	<90%, no condensation
Surroundings	Ventilation, no big shake
Power voltage	3×380V±10% / 50HZ
Power frequency	220V±10% / 50HZ
Input power	3KW

5.Key part list

Transverse optical coding device			Panasonic
Longitudinal optical coding device			Panasonic
Transverse drive servo motor			Panasonic
Longitudinal drive servo motor			Panasonic
Servo drive system			Panasonic
Transverse gearbox			Neugart Germany
Longitudinal gearbox			Neugart Germany
Programming software			FastCAM, Australia
CNC control system			American Hypertherm
High-precision U71Mn accurate grinding guide rail			Bed way grinder position accurate grinding position process
PLC			Taiwan Taida PLC
