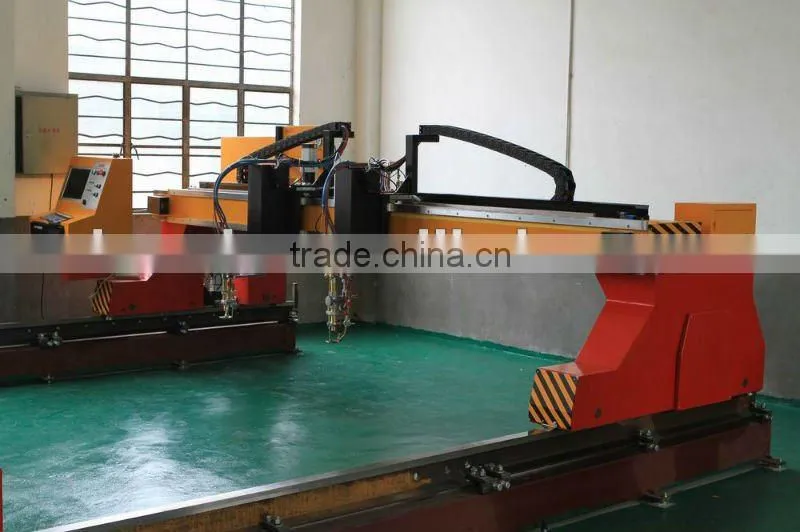

AUPAL Multi-head Strip Type CNC Cutting Machines are widely used in H-shape steel factory to service high precision, high efficiency and quality metal cutting.
Main features:

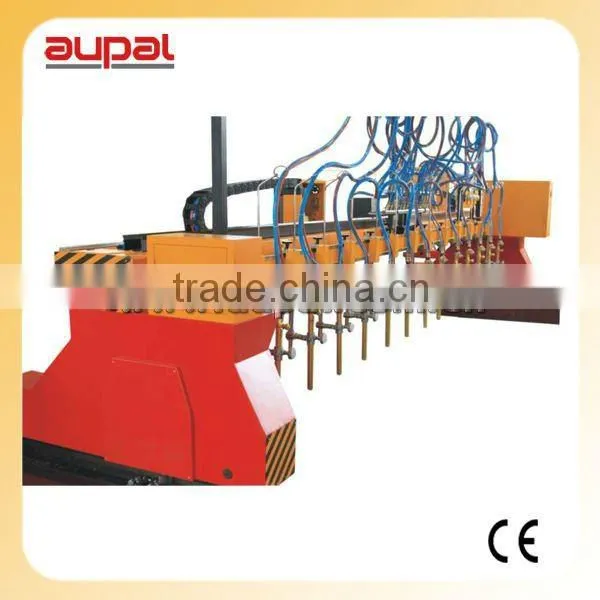

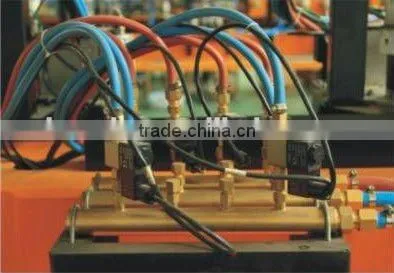

Longitudinal strip cutting torches are installed on the face of crossbeam. The cutting heads quantity is decided by clients. Max. 20 cutting heads can be installed on a cutting machine of 6 meters cutting width. Transverse cut torches can be installed on the back according to client's requirements.
Except manual height control, the longitudinal strip torches can be lifted individually or controlled as a group. There are individual control system on the front and back of the machine to control the corresponsive cutting parameters.

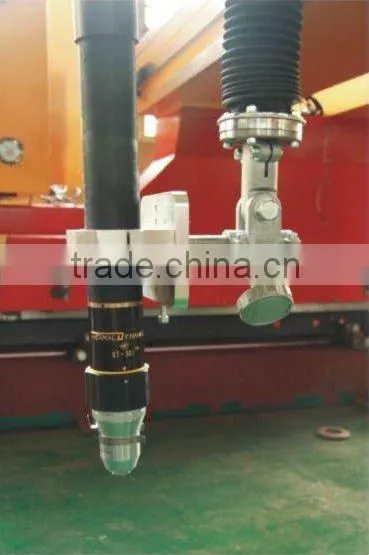

AUPAL Multi-head Strip Type CNC Cutting Machines can be installed CNC flame torches on the front and Longitudinal strip cutting torches on the back. It is a compound cutting machine with CNC cutting and multi-torches strip cutting.
1. Basic components
Machine specification |
4000mm |
Track length |
14000mm |
Capacitance height-regulating device |
1set |
CNC Flame torch |
1set |
Drive mode |
Single drive |
Driving system*dynamo |
Japan Panasonic servo |
CNC system |
American Hypertherm |
Gear box |
Neugart Germany |
Automatic Programming, Nesting software |
FastCAM, Australia |
2. Function components
|
Programming software (FastCAM professional made in Australia) |
1set |
Motorized flame torch height capacitor sensor (China) |
1set |
Voltage sensor |
1set |
3. Main technical specifications
Max effective cutting width |
3200mm |
Max effective cutting length |
12000mm |
Rapid speed |
0-9000mm/min |
Flame cutting thickness |
1-150mm |
|
Automatic higher Precision
|
±1.0mm |
|
Setting speed error
|
≤±5% |
Flame cutting speed |
50-750mm |
Torch lifting distance |
200mm |
Straight line positioning precision |
±0.2mm/10m |
Straight line repeat precision |
±0.2mm/10M |
|
Complete machine synthesis precision(the synthesis photo as standard )length of side(4 sides)1000X1000 live wire speed 500-800mm/min |
|
Length of a side (4 sides) |
±0.5mm |
Diagonal discrepancy/AD-BC |
±0.5mm |
Node discrepancy |
±0.5mm |
Back to the origin of deviation |
±0.2mm |
The deviation of along and reverse line |
±0.2mm |
Cutting surface roughness |
Rz(um)=70+1.2a roughness for sight measure: 12.5 |
Verticality and gradient tolerance |
μ(mm)=0.4+0.015a |
Running non-straightness |
Vertical line≤±0.2mm/effective length Horizontal line≤±0.2mm/effective length |
Arcing time factor |
80% |
Lineation precision |
≤0.5mm |
Torch angle error |
≤±0.5° |
4. Working environment
Environmental temperature |
0-50°C |
Humidity |
<90%, no condensation |
Surroundings |
Ventilation, no big shake |
Power voltage |
3×380V±10% / 50HZ |
Power frequency |
220V±10% / 50HZ |
Input power |
3KW |
5.Key part list
Transverse optical coding device |
|
Panasonic |
|
Longitudinal optical coding device |
|
Panasonic |
|
Transverse drive servo motor |
|
|
Panasonic |
Longitudinal drive servo motor |
|
Panasonic |
|
Servo drive system |
|
|
Panasonic |
Transverse gearbox |
Neugart Germany |
||
Longitudinal gearbox |
Neugart Germany |
||
Programming software |
FastCAM, Australia |
||
CNC control system |
American Hypertherm |
||
High-precision U71Mn accurate grinding guide rail |
Bed way grinder position accurate grinding position process |
||
PLC |
Taiwan Taida PLC |
||
