RCDB Electric Type Magnetic Separator Machine for Silica Sand Production Line
- QINGDAO
- T/T L/C D/P D/A Money Gram Credit Card PayPal
You May Like
-
GTZ Series Lump Ore Type Magnetic Separator Machine for Silica Powder Production Line
-
GCT/F Series Roll Type Magnetic Separator Machine for Quartz Powder Production Line
-
GTGB Series Plate Type Magnetic Separator Machine for Quartz Sand Production Line
-
GTLH Series Vertical Ring Magnetic Separator Machine for Quartz Sand Production Line
-
RCDF Series Oil Cooling Type Belt Magnetic Separator for Vibrating Conveyer
-
RCDB Series Electric Type Belt Magnetic Separator for Vibrating Conveyer
Product Details
| Brand Name | GUOTE | Model Number | RCDB-5 | |
| Type | Magnetic Separator | Certification | ISO9001:2008 | |
| After-sales Service Provided | Engineers available to service machinery overseas | Warranty | One Year | |
| Weight | 430KG | Dimension(L*W*H) | Diffrent Model | |
| Production Capacity | 1-20t/h | Voltage | 220V/380V | |
| Condition | New | Power(W) | 1kw |
Product Description

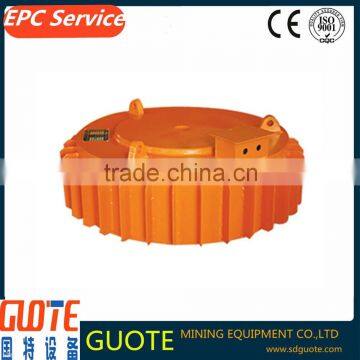

RCDB electric type magnetic separator machine for silica sand production line
SUMMARY
RCDB series dry type electromagnetic separator is a deferringzing device used for removing steel scraps in powder or block non
mgnetic material. It adopts electrical resin casting, self-cooling sealed structure and is characterized in that large penetration
depth, strong suction,dustproof, waterproof and corrosion resistance. Moreover, it is still capable of reliable operation in harsh
environments and commonly used with CF, CFL series suspended electromagnetic separator.
The main performance index have reached or higher than JB/T7689 2004 standard requirements, the product can remove
ferromagnetic substance(abt 0.1-35KG) in non-magnetic material.

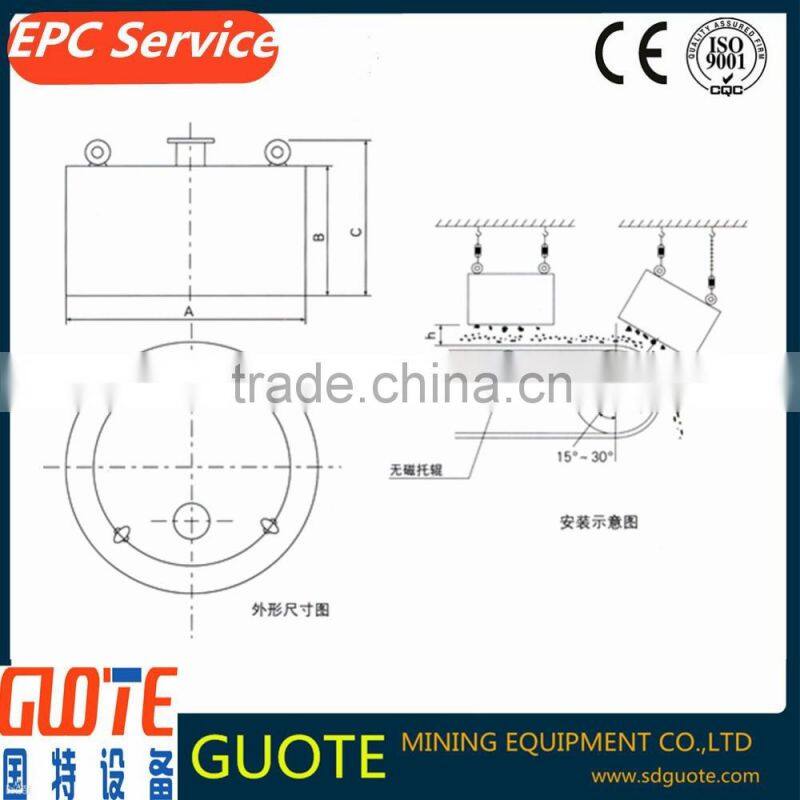

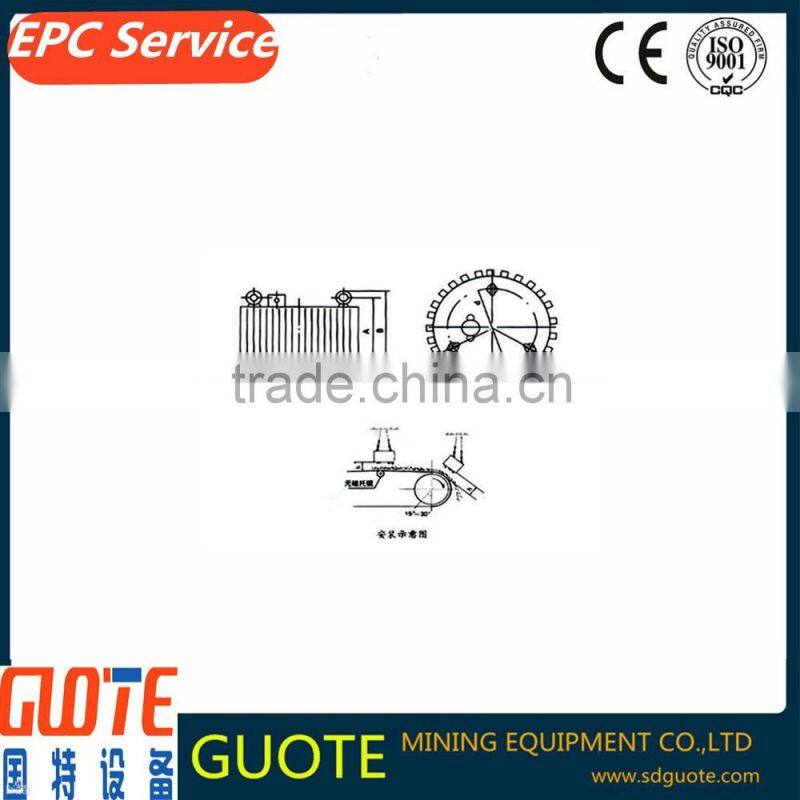

OVERALL AND INSTALLATION DIAGRAM
Model | Belt width mm | Rated lifting height h≤ mm | Magnetic field strength ≥MT | Material thickness ≤mm | Drive power ≤kw | Belt speed ≤m/s | Wweight | Dimensions(mm) | |||
A | B | CΦ | DΦ | ||||||||
RCDB-3 | 300 | 75 | 50 | 50 | 0.4 |
| 185 | 210 | 250 | 400 | 280 |
RCDB-4 | 400 | 100 | 50 | 70 | 0.6 | 300 | 240 | 280 | 500 | 400 | |
RCDB-5 | 500 | 150 | 60 | 90 | 1 | 430 | 280 | 325 | 610 | 450 | |
RCDB-6 | 600 | 175 | 70 | 120 | 1.6 | 580 | 280 | 325 | 710 | 500 | |
RCDB-6.5 | 650 | 200 | 70 | 150 | 2 | 680 | 280 | 325 | 816 | 640 | |
RCDB-8 | 800 | 250 | 70 | 200 | 3.6 | 950 | 310 | 355 | 960 | 780 | |
RCDB-10 | 1000 | 300 | 70 | 250 | 5 | 1520 | 310 | 360 | 1200 | 920 | |
RCDB-12 | 1200 | 350 | 70 | 300 | 6.8 | 2250 | 310 | 365 | 1400 | 1000 | |
RCDB-14 | 1400 | 400 | 70 | 350 | 9 | 2950 | 405 | 485 | 1650 | 1400 | |
RCDB-16 | 1600 | 450 | 70 | 400 | 13 | 4800 | 460 | 540 | 1900 | 1650 | |
RCDB-18 | 1800 | 500 | 70 | 450 | 18 | 6900 | 530 | 610 | 2150 | 1800 | |
Detailed images

PACKAGING & SHIPPING
1 Packaging: Specially made wooden boxes and containers
2 Shipping: ten days after receiving initial payment
OUR SEVICES
1 We will provide non metallic ore EPC turnkey project services.
2 According to customer's requirement, you can customize your private model.
3 You can make the complete test
4 We will respect your reasonable requirements
COMPANY INFORMATION
Weifang GUOTE Mine Equipment . is professional and modern enterprise including research and development, engineering design, production and installation, debugging services , automatic control equipment, non-metallic mineral production line test, design, consultation and the complete line of delivery.The scope of services related to mining, metallurgy, electric power, coal, glass, paper, chemical building materials, refractory materials, tiles,food, cement ,etc.Our product sell well in more than thirty provinces, autonomous region.
Our product have electromagnetic, permanent magnetic separator, dry wet magnetic separator,electromagnetic vibration feeder, quartz sand making machine, air classifier, dust collector, water separator, washing machine, flotation machine,metal detector, screw conveyor, timing quantitative feeding,weigher and centralized control system, etc.
Facing the new opportunities and challenges, the company in line with the spirit of "honesty-oriented, mutual benefit, cooperation and innovation" , dedicated to providing “dependable,simple and efficient” products and services to customers, make enterprises become domestic advanced mining equipment manufacturer.
Our company is willing to work together with people from all walks of life for a better future.
