What is a belt filter press?
Belt filter press is also called belt press filter or belt mud dehydrator, is widely used in both domestic and abroad market for its excellent performance and low investment & costs.
WDY series belt filter press embodies all the recognized principles of good belt filter press design. It is simple, reliable and easy to operate. The design has sufficient flexibility to accommodate nearly all types of sludges which are likely to be generated in a treatment facility.
All components are rugged, heavy-duty industrial quality suited for continuous 24 hr./day, 7 day/wk. service. We have been over 9 years in manufacturing and designing of belt filter press since year 2006. Excellent quality with cheap price for you.
Working principle of belt filter press WDY Series:
Free water and sludge is fully separated at gravity dewatering zone and then enter into 3-stage pressure dewatering zone---pre-pressure rollers, low pressure rollers and high pressure rollers.
Sludge is gradually dewatered under pressure and is discharged as sludge cake. Belt filter press is your ideal choice for sludge dewatering in waste water treatment.
Uses of belt filter press:
Belt filter press is mainly used for sludge dewatering in municipal sewage treatment plants, pharmaceutical industry, electroplating industry, paper industry, leather industry, printing and dyeing industry, metallurgy industry, chemical industry, slaughter industry, food industry, wine manufacturing factory and environmental engineering plants.
Also belt filter press can be used for solid-liquid separation and resource recovery in industrial production, like:
- In steel plants: Dewater and recycle iron powder.
- In wineries: solid-liquid separation from vinasse.
- In stone factories: Dewater and recycle stone powder.
Belt filter press is simple and easy to maintain, sludge cake moisture content rate is very low.
Product features of belt filter press:
- Fully automatic, save labor.
- Small vibration and low noise.
- Excellent performance with very small footprint.
- Adaptable for nearly all types of sludges, high efficiency with large treatment capacity.
- Dewatering happens in several zone one by one with high dewatering efficiency, sludge cake moisture content is much low.
- Belt filter press can run continuously around the clock, and can automatically backwash, easy to maintain.
- Low energy consumption and low running costs.
- Filter belt deviation can be automatically calibrated, more safe.
- Strong technical team and strict final inspections ensure excellent quality and long service life of our belt filter press.

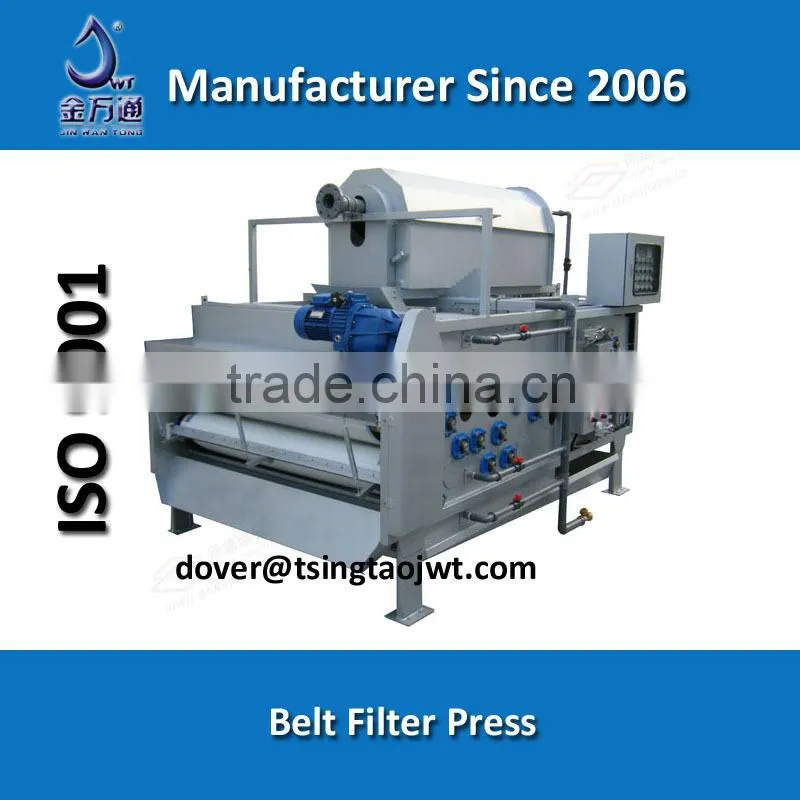

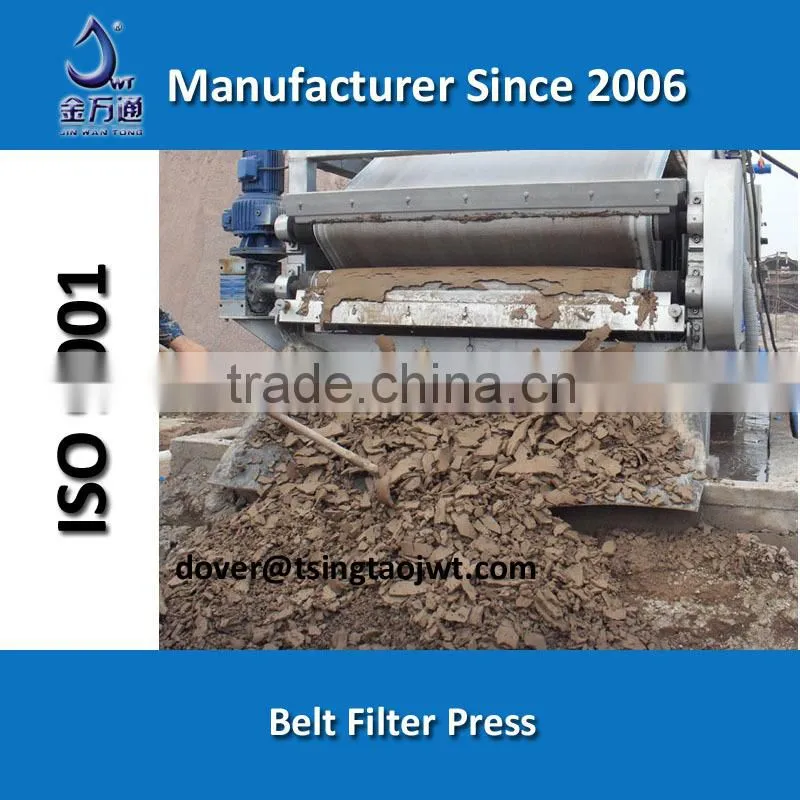

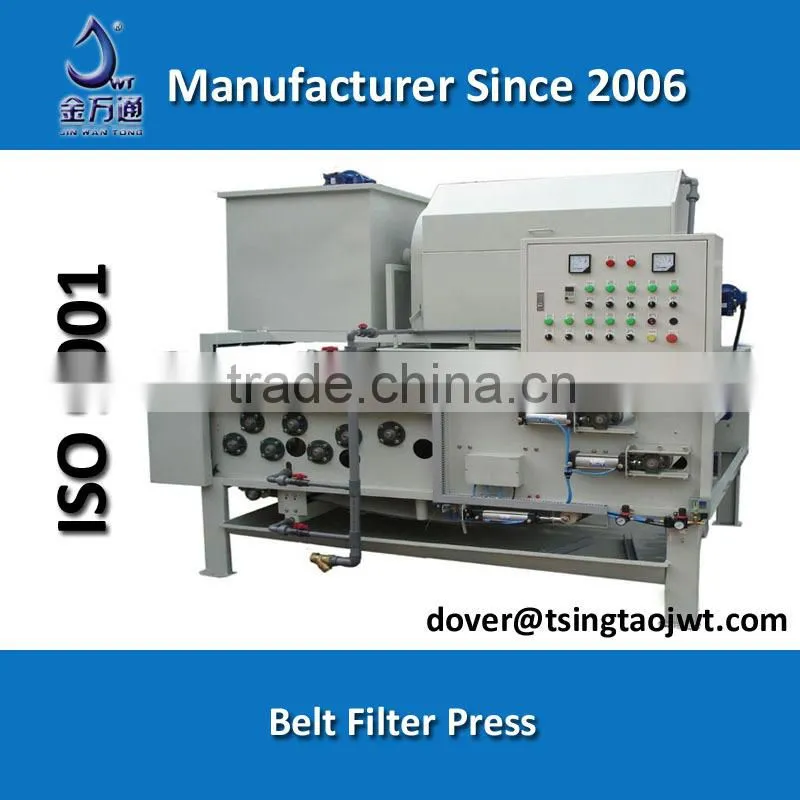

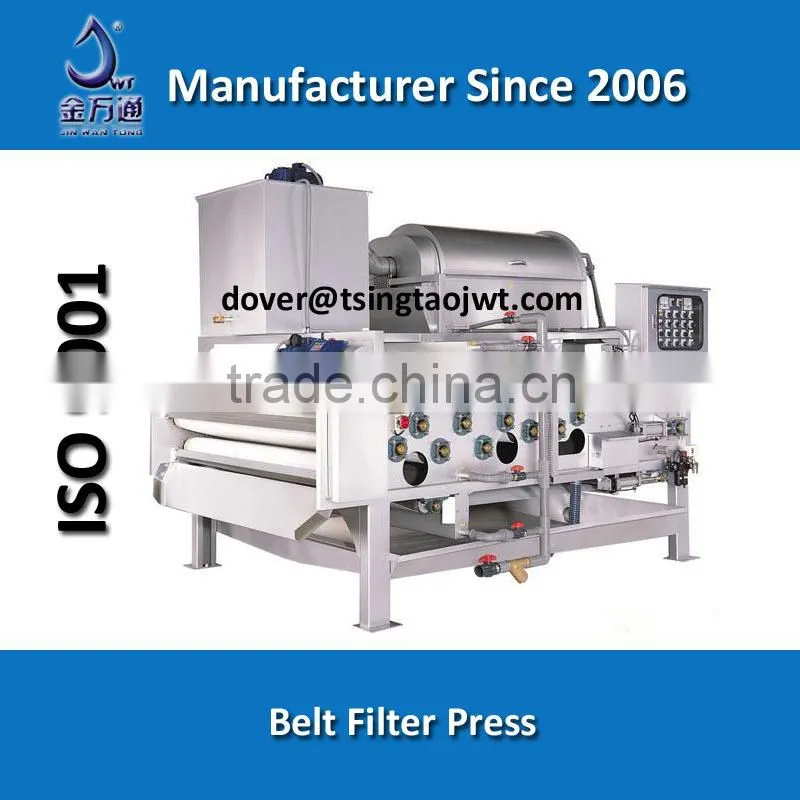

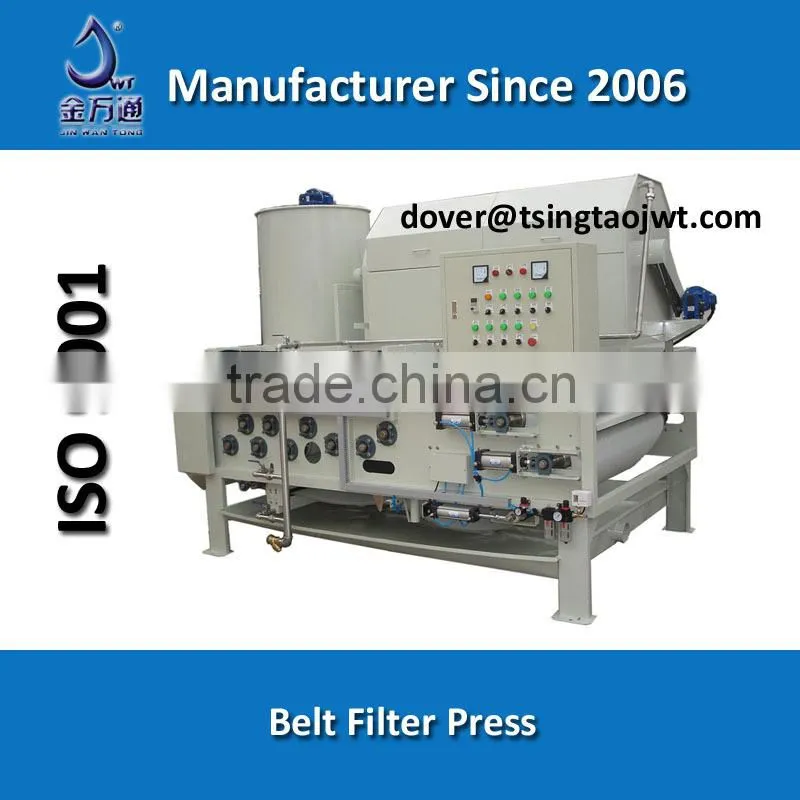

Detail images of belt filter press:
For more details of WDY series belt filter press, please feel free to contact us.
Detail specification of belt filter press WDY:
| Model | WDY10 | WDY15 | WDY20 | WDY25 | WDY30 |
| Belt Width(mm) | 1000 | 1500 | 2000 | 2500 | 3000 |
| Treatment Capacity(m3/h) | 4/15 | 6/25 | 8/30 | 10-40 | 15-50 |
| Power(kw) | 2.2 | 2.2 | 3 | 3 | 5.5 |
| Washing Water Consumption(m3/h) | ≥6 | ≥8 | ≥12 | ≥16 | ≥18 |
| Washing Water Pressure(Mpa) | ≥0.5 | ≥0.5 | ≥0.5 | ≥0.5 | ≥0.6 |
| Air Pressure(Mpa) | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.5-0.8 |
| Mud Cake Moisture Content(%) | 75-80 | 75-80 | 75-80 | 75-80 | 75-80 |
