wastewater treatment Central drive primary circular tank clarifier
ZXG wastewater treatment Central drive primary circular tank clarifier is a machine which scrape and discharge sludge in round primary sedimentation tank, secondary sedimentation tank and sludge thickening tank, standard products working diameter ranges from 8m to 20m.
Central driving perfectly solved the problems of clarifier edges leveling as well as driven trolley skidding in winter conditions.
As an experienced manufacturer started in year 2006, we provide one-stop services from project design to manufacturing, installation and final commissioning, professional services with cheap factory price for you.
Working principle of wastewater treatment Central drive primary circular tank clarifier :

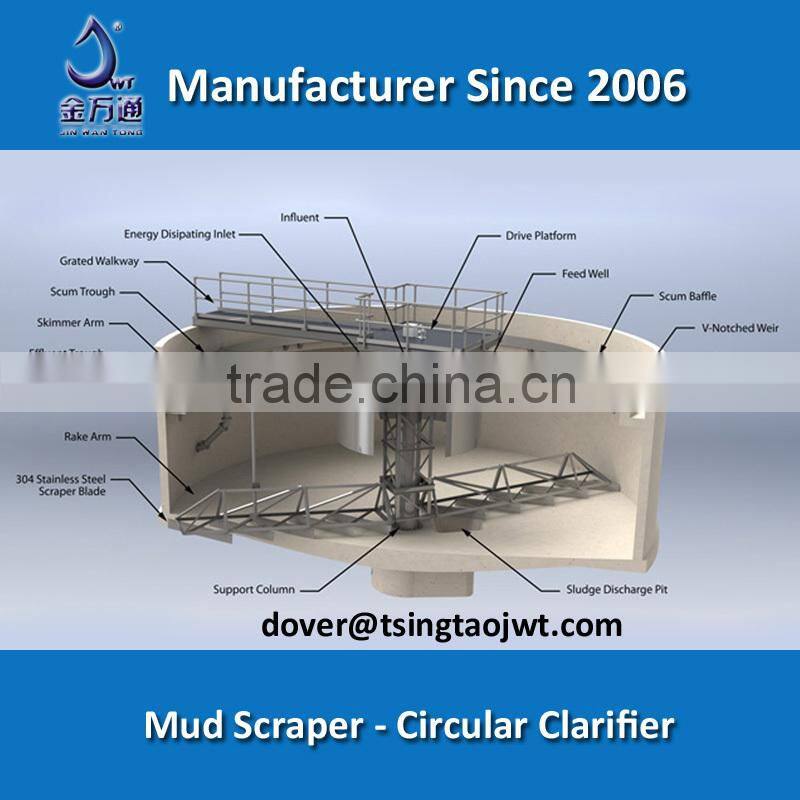

Wastewater enter into clarifier through the central steady flow tube, the central drive sludge scraper bridge fitted with a central shaft with arms and scraper blades that rotate in clockwise direction and thus convey the debris (sludge, etc.) towards the middle of the reinforced concrete tank, from where sludge is discharged.
On request, the machine can be fitted with the suspended solid extraction mechanism, which thanks to the bridge rotation, conveys the foams (oily and light parts present on the water surface) to the scum trough fixed to the reinforced concrete tank wall. The clean water flows through the V-notched weirs and flows into a discharge channel.
ZXG series wastewater treatment Central drive primary circular tank clarifier is equipped with torque protection device, will shut down automatically once torque exceed set value to prevent damages.
ZXG wastewater treatment Central drive primary circular tank clarifier can be used in almost all kinds of circular tanks to scrape and discharge sludge, the main applications are:
- Primary sedimentation tank
- Secondary sedimentation tank
- Final sedimentation tank
- Sludge thickening tank
Specification of wastewater treatment Central drive primary circular tank clarifier :
| Model | Tank Diameter(m) | Precipitation Area(m2) | Sludge Treatment Amount(m3/h) | Speed Ratio |
| ZXG-4 | 4 | 12.6 | 0.26 | 11033 |
| ZXG-6 | 6 | 28.3 | 0.59 | 11033 |
| ZXG-8 | 8 | 50.3 | 1.05 | 17051 |
| ZXG-10 | 10 | 78.5 | 1.64 | 20825 |
| ZXG-12 | 12 | 113 | 2.36 | 20825 |
| ZXG-14 | 14 | 154 | 3.21 | 24389 |
| ZXG-16 | 16 | 201 | 4.19 | 24389 |
| ZXG-18 | 18 | 254 | 4.76 | 24389 |
| ZXG-20 | 20 | 314 | 5.25 | 31433 |
Customized services are available:
Standard wastewater treatment Central drive primary circular tank clarifier working diameter is 4-20m, if you need larger size products, please feel free to contact us (customizable).

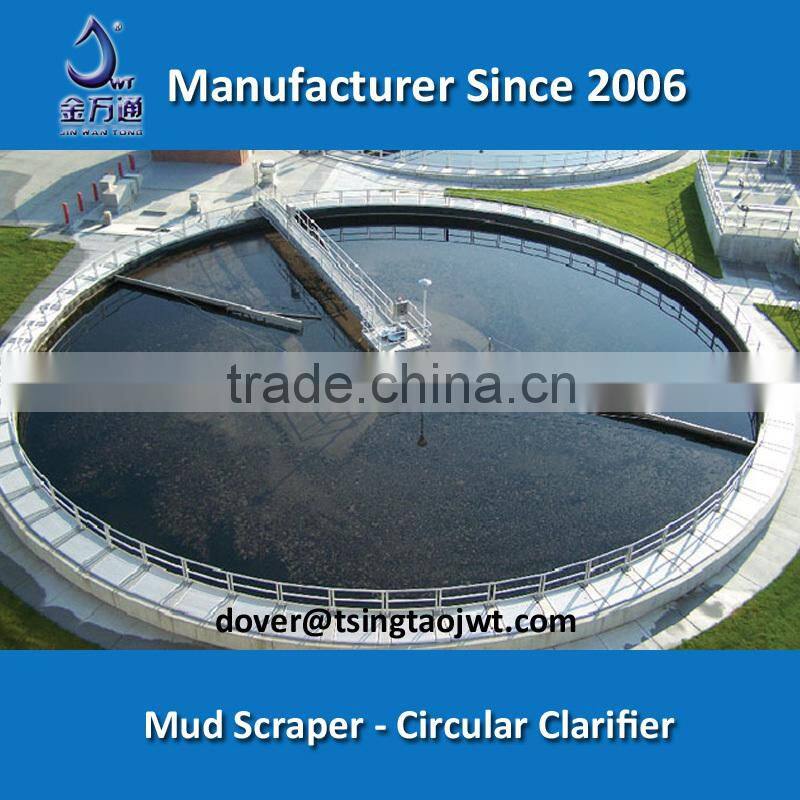

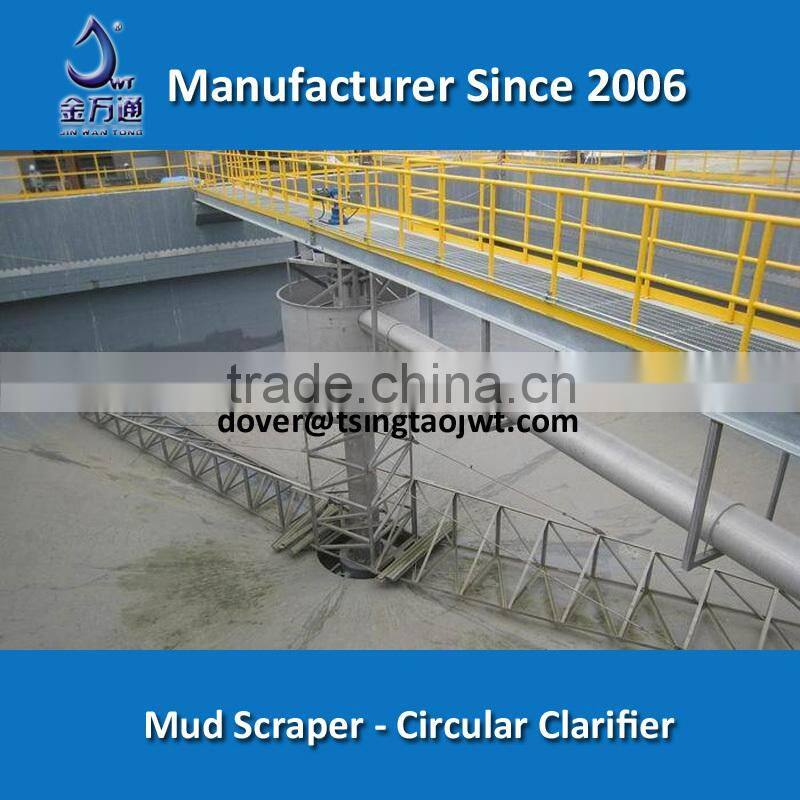

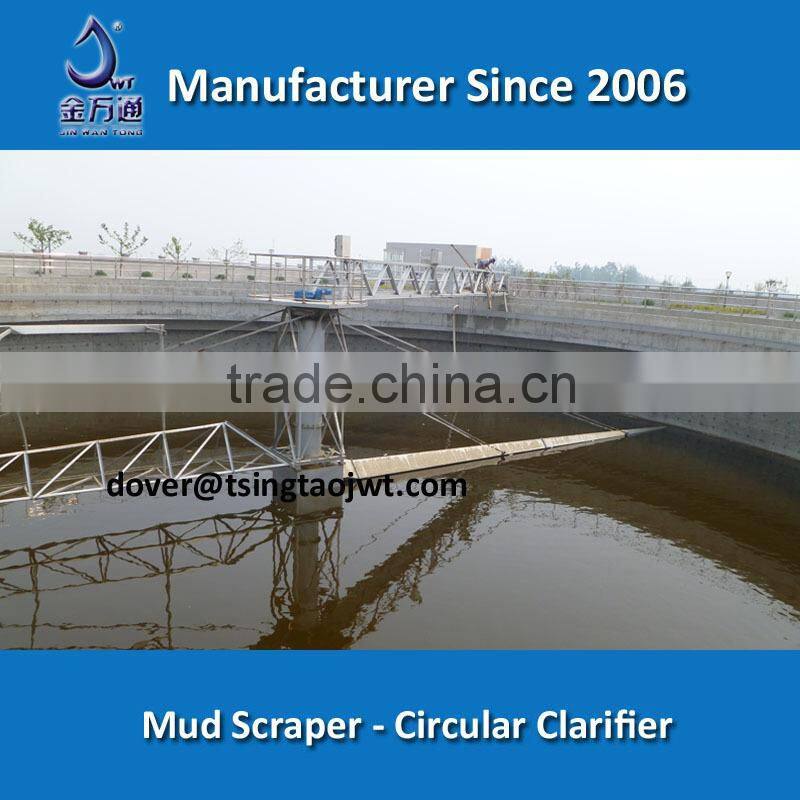

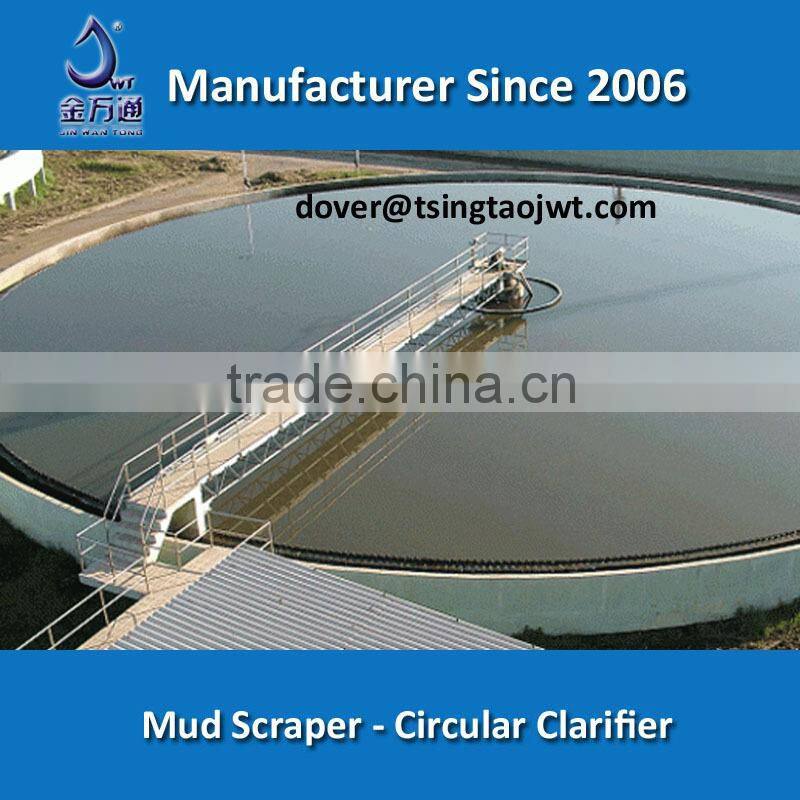

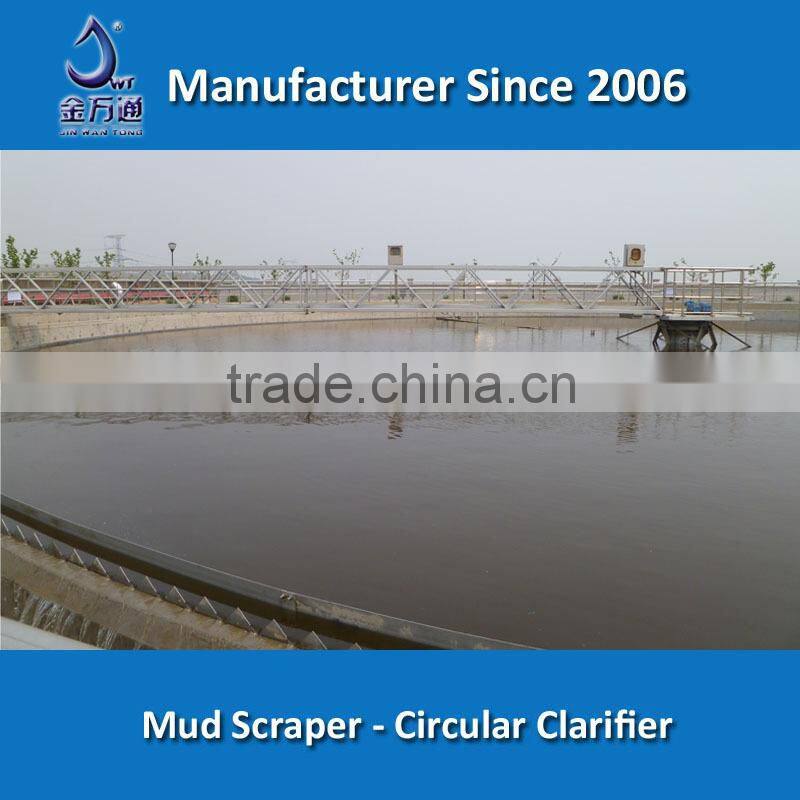

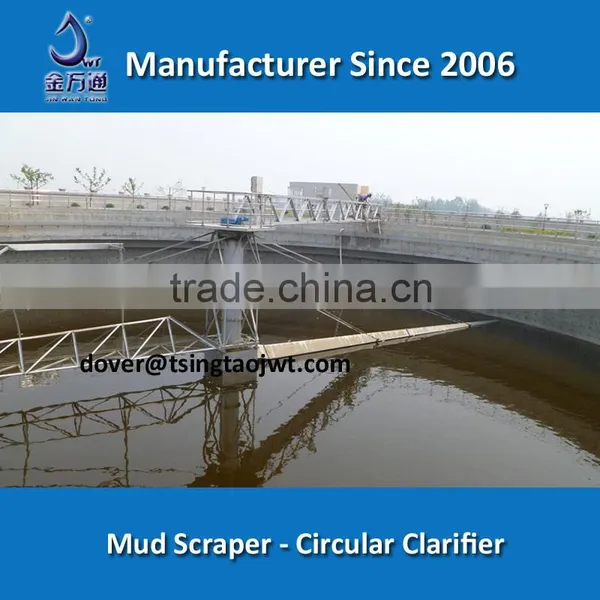

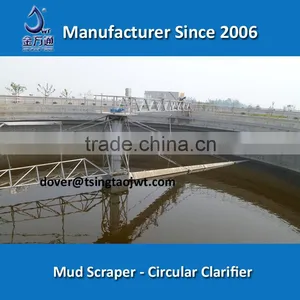

More images of wastewater treatment Central drive primary circular tank clarifier :
For more details about Central drive primary circular tank clarifier , please feel free to contact us:
Experienced manufacturer started in year 2006, one-stop services from project design to manufacturing, installation and final commissioning, professional services with cheap factory price for you.
