Specifications
ISO 9001-2008.Over 8 years in manufacturing and designing of hospital effluent water treatment plant since year 2006.
What is a hospital effluent water treatment plant?
JSH hospital effluent water treatment plant is a whole water treatment equipment combine sedimentation tank, biochemical tank etc.. Water can be purified by flowing through hospital effluent water treatment plant, treated water is recycled or can be directly discharged.
The configuration can be modify according to raw water quality, some equipment can be added in or removed from the hospital effluent water treatment plant to meet your requirements. We have been over 8 years in manufacturing and designing of hospital effluent water treatment plant since year 2006.
Product features of our hospital effluent water treatment plant:
Compared with conventional activated sludge process and fixed bed process, hospital effluent water treatment plant performs better in purification efficiency and stability, BOD, COD, N and P all can be removed.
Total hospital effluent water treatment plant can be placed on ground or be buried underground, the upper land can be used for lawn and plants, safe and environment friendly.
Fully automatic controlling and excellent work stability with long service life, only a little simple routine maintenance is sufficient, no professional expert is required in daily working. Hospital effluent water treatment plant is mainly used for organic sewage and similar industrial organic wastewater.
Hospital effluent water treatment plant is suitable for:
- Hotels, restaurants, nursing homes, hospitals.
- Residential district, village, town, shopping malls, office buildings, offices,
- hospitals, schools.
- Stations, airports, sea port, ship.
- Factories, mines, military, tourist spots, scenic areas.
- Suitable for industrial organic wastewater which is similar to municipal sewage.
- Strong technical team and strict final inspections ensure excellent quality and long service life of our hospital effluent water treatment plant.

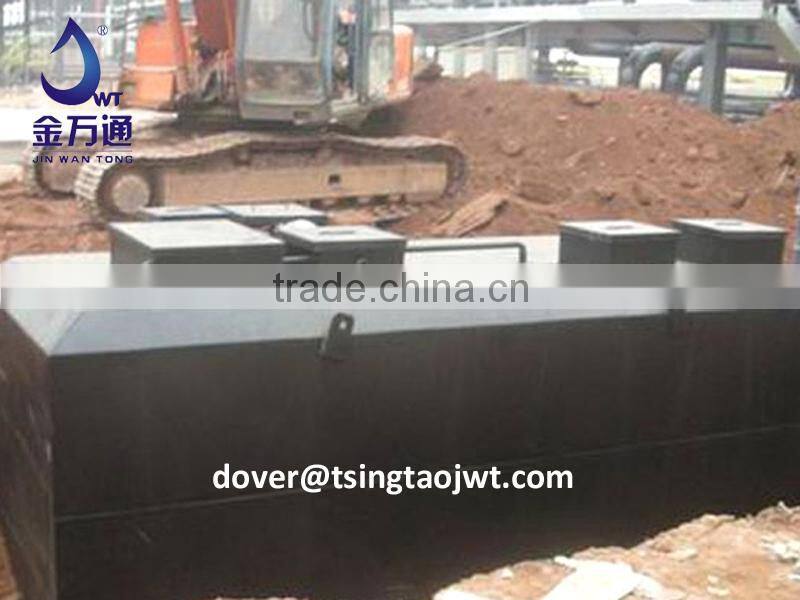

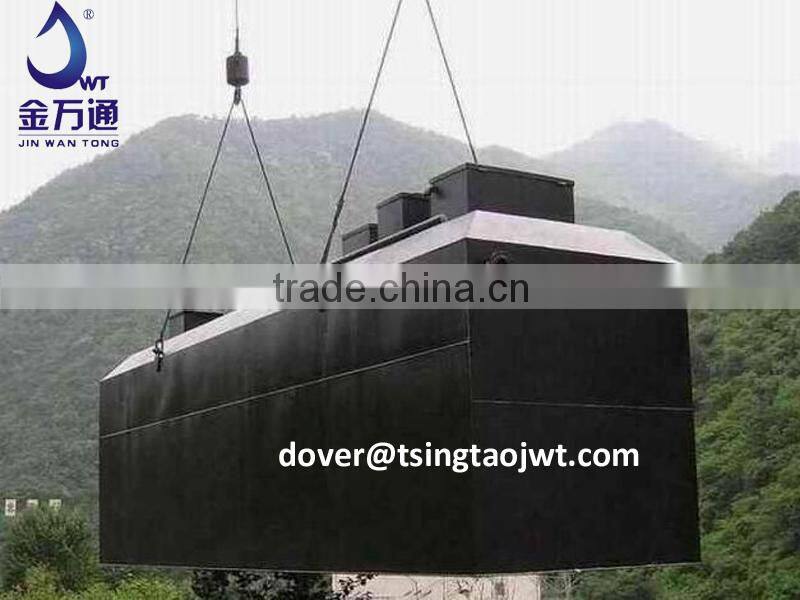

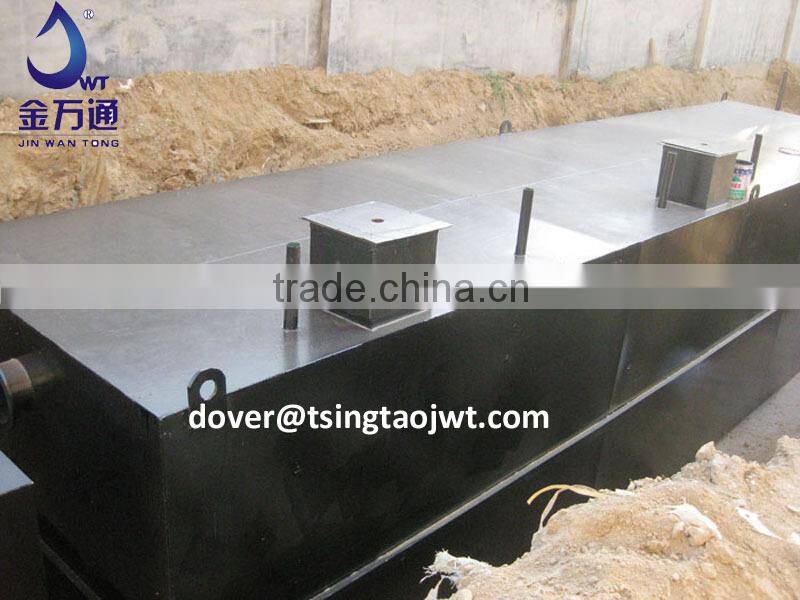

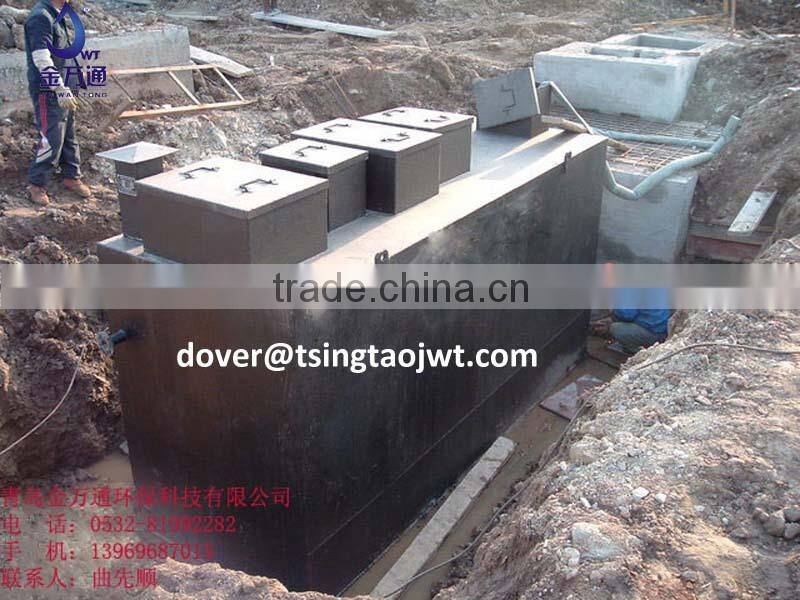

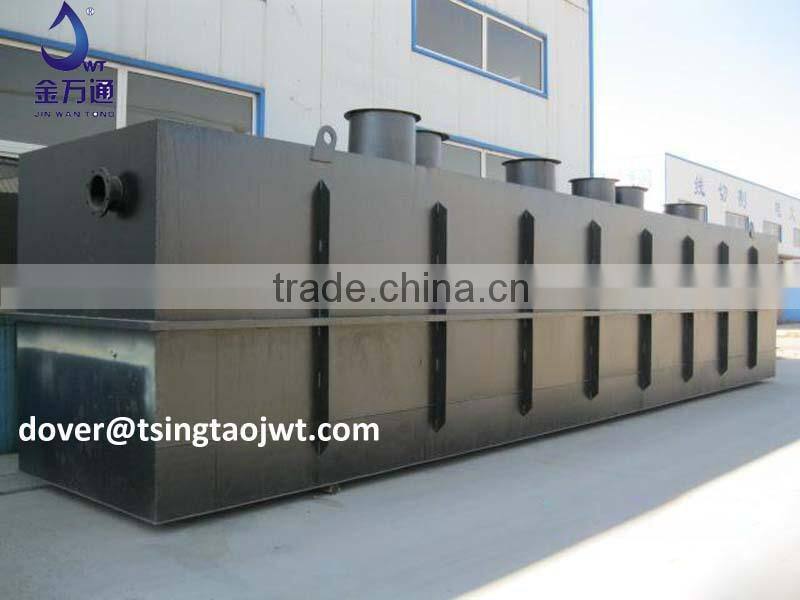

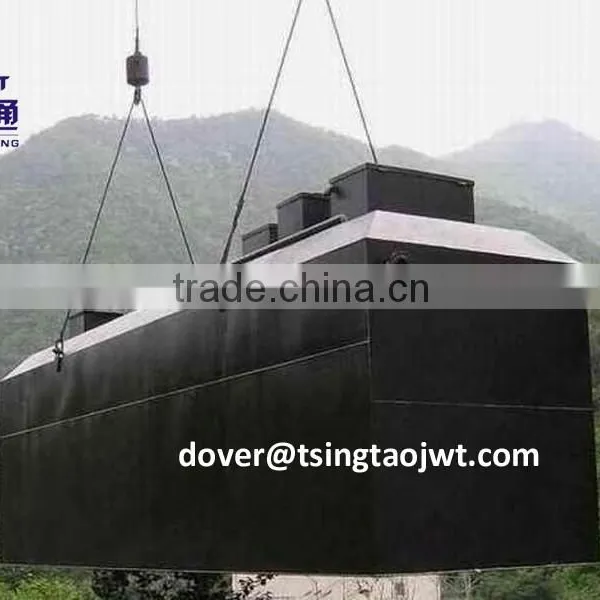

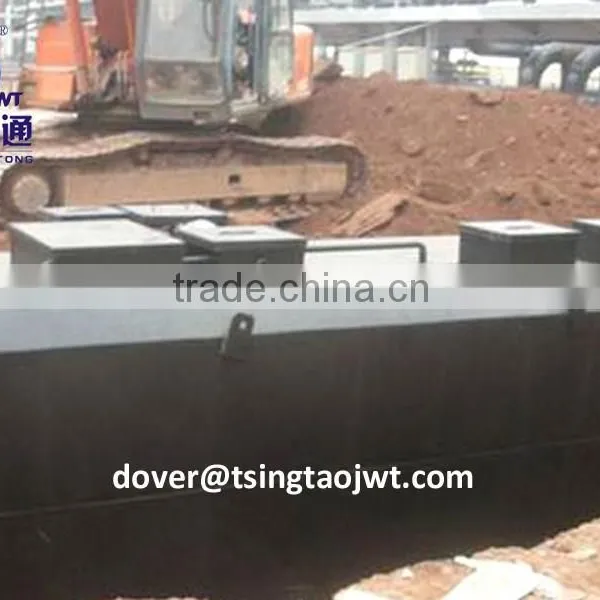

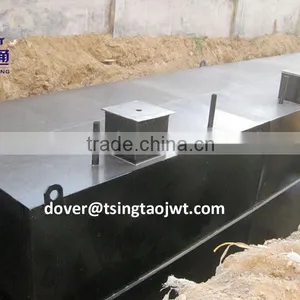

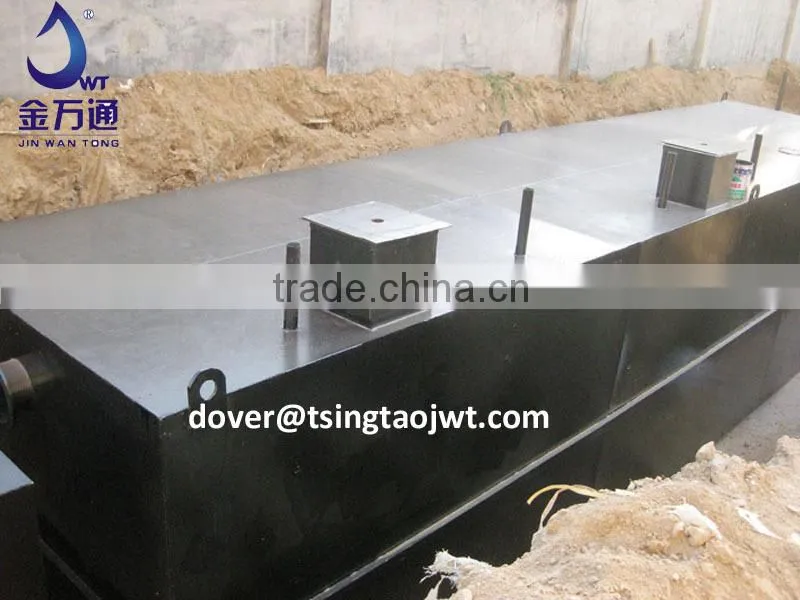

Detail images of hospital effluent water treatment plant:
Specification of hospital effluent water treatment plant:
| Model | Treatment Capacity(t/d) | Fan Qty. | Aerator Qty. | Overall Size(m) |
| JSH-3 | 3 | 1 | 2 | 2.4×1.5×2.2 |
| JSH-5 | 5 | 1 | 2 | 2.7×1.5×2.2 |
| JSH-8 | 8 | 1 | 4 | 2.8×1.5×2.2 |
| JSH-10 | 10 | 1 | 4 | 3.0×2×2.5 |
| JSH-20 | 20 | 1 | 8 | 4.5×2×2.5 |
| JSH-30 | 30 | 1 | 10 | 5.5×2×2.7 |
| JSH-50 | 50 | 1 | 16 | 7.5×2.5×2.7 |
| JSH-80 | 80 | 2 | 24 | 9×3×3 |
| JSH-100 | 100 | 2 | 30 | 11×3×3 |
| JSH-120 | 120 | 2 | 36 | 13×3×3 |
| JSH-150 | 150 | 2 | 44 | 14×3.5×3 |
| JSH-180 | 180 | 2 | 54 | 17×3.5×3 |
| JSH-200 | 200 | 2 | 58 | 19×3.5×3 |
