SPF20 - DDS FUNCTION (ARBITRARY) GENERATOR

SPF20 - DDS FUNCTION (ARBITRARY) GENERATOR thumbnail-1

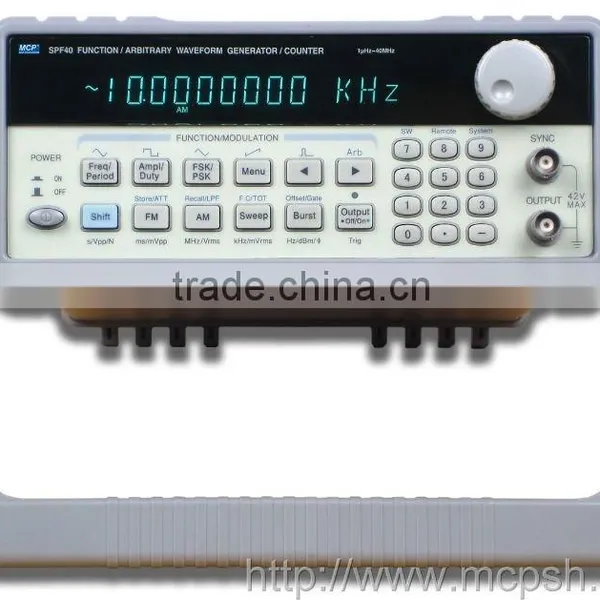

SPF20 - DDS FUNCTION (ARBITRARY) GENERATOR photo-1
Negotiable MOQ: 2 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
MCP
Model Number:
SPF20
Contact Supplier Request Quote Chat Now
Shanghai MCP Corp.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shanghai, China
Brand Name MCP
Model Number SPF20

Specifications

.DDS FUNCTION GENERATOR
.0.2mV Output Amplitude for Small Signal
.100uHz~120MHz frequency range for mai

SPF20 - DDS FUNCTION (ARBITRARY) GENERATOR



Features
.Using Direct Digital Synthesis(DDS)technology
.0.2mV Output Amplitude for Small Signal
.100uHz~120MHz frequency range for main waveforms
.100MHz equal-accuracy frequency counter
.Store/recall 10 waves panel setting
.Arbitrary setting of start and stop for frequency sweep output
.More than 30 kinds of output waveform(arbitrary is optional)
.13-charracter highly visible VFD
.RS232 interface,GP-IB interface option



Technical Data SPF05/10/20/40/80/120
Main output Output frequency

100μHz~5MHz(SPF05) 100μHz~10MHz(SPF10) 100μHz~20MHz(SPF20) 100μHz~40MHz(SPF40) 100μHz~80MHz(SPF80) 100μHz~120MHz(SPF120) Sine:100uHz~5/10/20/40/80/120 MHz
Square and TTL:100uHz~5/10/20/40MHz
Other and stored waveform:100uHz~100KHz
Output amplitude 1mVp-p~10Vp-p(50Ωload)(f≤40MHz)
100μVp-p~3Vp-p(50Ωload)(f>40MHz)
2mVp-p~20Vp-p(1MΩload)(f≤40MHz)
200μVp-p~6Vp-p(1MΩload)(f>40MHz)
Output wave sine,square,pulse,triangle,ramp,ladder and etc.more than 30 waveforms
Output modulation single frequency,sweep frequency,AM,FM,FSK,PSK
Wave length 8~16000 points
Wave accuracy

12bits
Sampling rate

300Msa/s
Frequency resolution

1μHz
Frequency accuracy ≤±0.0005%
Amplitude resolution 1μVp-p
Amplitude accuracy ≤±1%+0.2mV
Amplitude flatness ±3%
Offset range ±10V
Offset resolution 1μV
Offset error <±(1%+10mV)
AM modulation depth 1%~120%
FM modulation deviation Max.50%
PM modulation range 0.1°~360.0°
Phase resolution 0.1°
Sine wave Harmonic distortion -50dBC
Distortion factor

≤0.1%
Square wave Rise time

≤15ns
SYMM.

0.1%~99.9% adjustable
40MHz∼120MHz Output amplitude 13dBm
Amplitude flatness ±1dB
Attenuation 0~-76dB
Resolution -0.1dB
Arbitrary wave module(Option) Frequency range 100μHz~100kHz
Wave length

8~16000 points
Resolution 10 bits
Counter Frequency range 1Hz~100MHz
Counting capacity ≤4.29×109
Time base Frequency 10MHz
Stability ±1×10-6/d
Power supply 110~127VAC±10%/220~240VAC±10%,50Hz±2Hz/60Hz±2Hz
Dimension(W×H×D) 255×100×370mm
Weight 2.5kg
