.FUNCTION GENERATOR
.Multi waveform: Sine , Square , Triangle and etc.
.Built-in 7 digits counter (up to10MHz equal accurate)

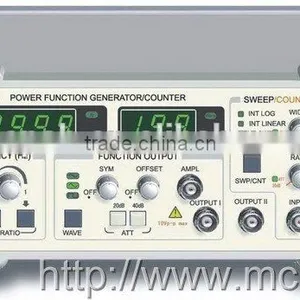

SG1631A - FUNCTION GENERATOR



Feature

.Apply LSI and MCU
.Multi waveform: Sine , Square , Triangle and etc.
.Built-in 7 digits counter (up to10MHz equal accurate)
.High power output
.Variously output mode CW, FW, sweep frequency
.High reliability: MTBF≥10000h
.DC offset, symmetry continuously adjustable





SG1631A

Main output

Output frequency0.1Hz ~ 3MHz in 7 ranges
Output waveforms

Sine wave, Square wave, Triangle wave and etc.

Output impedanceFunction and fixed-frequency output: 50Ω TTL/CMOS: 600Ω
Output amplitudeFunction output: 10Vp-p (50Ω load) 20Vp - p (1MΩ load)
Output attenuation0dB / 20dB / 40dB/60dB
DC offset-5V ~ +5V±10% (50Ω) -10V ~ +10V±10% (1MΩ)
Symmetry20% ~ 80% or 50%
Distortion factor10Hz ~ 100kHz 1%
Triangle wave linear90%
Square wave rise time25ns
TTL output levelLow≤0.8V High≥1.8V
CMOS output level3Vp-p ~ 15p-p adjustable
Sweep modeLin./Log.

Counter

Display7 digits
Frequency range0.1Hz ~ 50MHz
Input impedance500kΩ/30pF
Time base10MHz
AccuracyTime base accuracy ± count
Attenuator-20dB
Stability5 x 10-5/d
Power output
Output frequency0.1Hz ~ 200kHz, (automatically cutoff above 200kHz)
Output power10W (rising edge of square wave <1μs)
(5W above 100kHz, load capacitance≥4Ω)
Output amplitude≤20Vp-p empty load, continuously adjustable
Power source110~127 VAC±10%, 220~240VAC±10%, 50Hz±2Hz / 60Hz±2Hz
DIMENSIONS & WEIGHT285x90x360mm (WxHxD) Approx 7kg
