MCP MPF3060 - 60mhz DDS FUNCTION GENERATOR

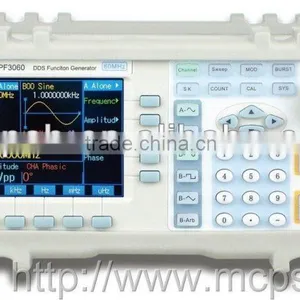

MCP MPF3060 - 60mhz DDS FUNCTION GENERATOR thumbnail-1

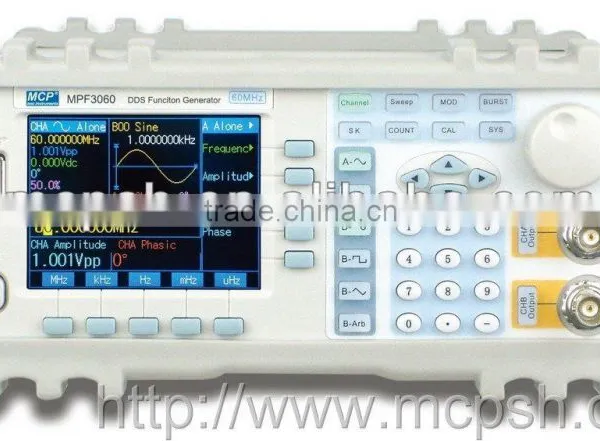

MCP MPF3060 - 60mhz DDS FUNCTION GENERATOR photo-1
