Specifications

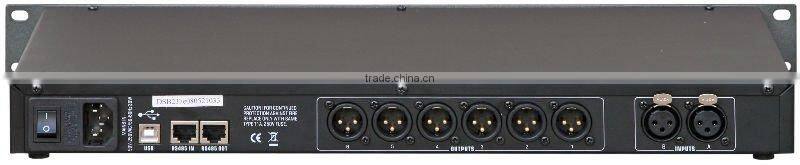

Professional digital loudspeaker management processor based on dual 24bit DSP technologyBalanced XLR in/outputs
:: Product Description
* Professional digital loudspeaker management processor based on dual 24bit DSP technology
* Used to tune your loudspeakers to perfection!
* 2 inputs and 6 outputs with full matrix routing capability
* Both inputs have:
* 6 Band equalizer (parametric, high shelf, low shelf)
* Delay (adjustable up to 682ms [= 235m] in 21us steps)
* All 6 outputs have:
* Crossover (Linkwitz/Riley, Bessel, Butterworth) with adjustable slope (12 / 18 / 24 and 48dB/oct)
* 4 Band equalizer (parametric, high shelf, low shelf)
* Delay (adjustable up to 21,31ms [= 7,3m] in 21us steps)
* Phase reverse
* Limiter (adjustable attack, release, threshold and hold time)
* 30 different speaker setups can be stored in memory
* USB and RS485 connection for firmware updates and parameter setup via PC
* Complete Windows(R) software included with visually attractive and easy setup capabilities
* Soft power on operation to avoid disturbing clicks
* Clear blue 2x20 character back light LCD display
* High quality components and rugged construction make it road proof
* Balanced XLR in/outputs
* Can be used for professional PA and studio but also for Pro DJ's
:: Technical Information
* Voeding: 90Vac ~ 240Vac, 50Hz (30W)
* Zekering: 20mm glazen zekering 250V 1A traag
* Frequentie bereik: 10-20.000Hz (+/-0.1dB)
* Dynamisch bereik: 102 dB
* THD + ruis
