Specifications
PA Mixing Console With DSP EffectUSB in/out for direct recording to PC
CE Standard
Quality guaranteed

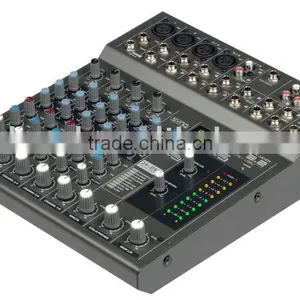

PA Mixing Console With DSP Effect and USB In/Out with PC Recording
- 8 channel PA-mixing console with very low noise architecture.
- Internal 24bit DSP-effect unit with 100 presets & foot switch
- USB in/out for direct recording to PC
- 4 balanced microphone input channels, 2 mono line + 3 stereo line:
- Input gain
- Inserts on mono channels
- Peak indication @ -5dB
- High pass filter @ 75Hz
- 3band equalizer (12kHz/2,5kHz/80Hz)
- AUX send for monitoring (pre)
- EFX send for effects section (post)
- PAN/BAL control
- LEVEL with rotary control
- 48V Phantom power on all balanced micros
- Use of external effects possible
- Balanced Main L/R output control
- Headphone and control room output
- 2x 10section LED VU-meters
- External power transformer
Max output level (0.5% thd @ 1kHz): +26dB (MAIN L/R) +20dB (INSERT)
T.H.D: <0.1% @ +14dB 20Hz~20kHz (MIX L/R, AUX SEND, EFX SEND, CTRL ROOM)
Frequency response: 20Hz~20kHz, +1/-2dB (MIX L/R, AUX SEND, EFX SEND, CTRL ROOM)
Hum and Noise (average Rs=150Ohm):
-127dB equivalent input noise
-95dB residual noise (MIX L/R, AUX SEND, EFX SEND, CTRL ROOM)
-88dB (MIX L/R, AUX SEND, EFX SEND, CTRL ROOM) Master fader at nominal level and all channel volumes at minimum.
Maximum Voltage Gain:
66dB MIC IN TO MAIN L/R
60dB MIC IN TO AUX
66dB MIC IN TO EFX
76dB MIC IN TO CONTROL ROOM L/R
58.2dB IN TO REC L/R
46dB LINE IN TO MAIN L/R
46dB LINE IN TO AUX
46dB LINE IN TO EFX
56dB LINE IN TO CONTROL ROOM L/R
36dB STEREO IN TO MAIN L/R
6dB AUX RETURN IN TO MAIN L/R
16dB TAPE IN TO MAIN L/R
Crosstalk (@ 1kHz):
-70dB between input channels
-70dB between input/oputput channels
Gain Control (mono input channel)
44dB Variable (-50dB ~ -6dB) (-30dB ~ +14dB)
Gain Control (combined mono/stereo input channel)
40dB Variable (-20dB ~ +20dB)
Input channel Equalization:
HIGH: 12kHz shelving
MID: 2.5kHz peaking
LOW: 80Hz shelving
*Turnover/roll off frequencies: located 3dB below max. boost/cut
LED Meters: 2x 10 segment LED for MAIN L/R
Internal Digital Effect: 100 selectable presets FOOT Switch control (ON/OFF)
Channel indicators:
Peak: an indicator for each channel turns on when the pré-channel fader signal is 5dB below clipping
Phantom Power (balanced input): +48V DC
Power Supply: AC 230 V, 50Hz
Power consumption: 25W
Weight: 3,4 kg
Dimensions: 249(W) x 75(H) x 295(D) mm
| Power Supply | AC 230 V, 50Hz |
| Power consumption | 25W |
| Max output level (0.5% thd @ 1kHz) |
+26dB (MAIN L/R) +20dB (INSERT) |
| T.H.D. | <0.1% @ +14dB 20Hz~20kHz (MIX L/R, AUX SEND, EFX SEND,CTRL ROOM) |
| Frequency response | 20Hz~20kHz, +1/-2dB (MIX L/R, AUX SEND, EFX SEND, CTRL ROOM) |
| Hum and Noise (average Rs=150Ohm) |
-127dB equivalent input noise -95dB residual noise (MIX L/R, AUX SEND, EFX SEND, CTRL ROOM) -88dB (MIX L/R, AUX SEND, EFX SEND, CTRL ROOM) Master fader at nominal level and all channel volumes at minimum. |
| Maximum Voltage Gain |
66dB MIC IN TO MAIN L/R 60dB MIC IN TO AUX 66dB MIC IN TO EFX 76dB MIC IN TO CONTROL ROOM L/R 58.2dB IN TO REC L/R 46dB LINE IN TO MAIN L/R 46dB LINE IN TO AUX 46dB LINE IN TO EFX 56dB LINE IN TO CONTROL ROOM L/R 36dB STEREO IN TO MAIN L/R 6dB AUX RETURN IN TO MAIN L/R 16dB TAPE IN TO MAIN L/R |
| Crosstalk (@ 1kHz) |
-70dB between input channels -70dB between input/oputput channels |
| Gain Control (mono input channel) | 44dB Variable (-50dB ~ -6dB) (-30dB ~ +14dB) |
|
Gain Control (combined mono/stereo input channel) |
40dB Variable (-20dB ~ +20dB) |
| Input channel Equalization |
HIGH: 12kHz shelving MID: 2.5kHz peaking LOW: 80Hz shelving *Turnover/roll off frequencies: located 3dB below max. boost/cut |
| LED Meters | 2x 10 segment LED for MAIN L/R |
Internal Digital Effect |
100 selectable presets FOOT Switch control (ON/OFF) |
| Channel indicators | Peak: an indicator for each channel turns on when the pré-channel fader signal is 5dB below clipping |
| Phantom Power (balanced input) | +48V DC |
| Weight | 2,8 kg |
| Dimensions | 249(W) x 75(H) x 295(D) mm |
