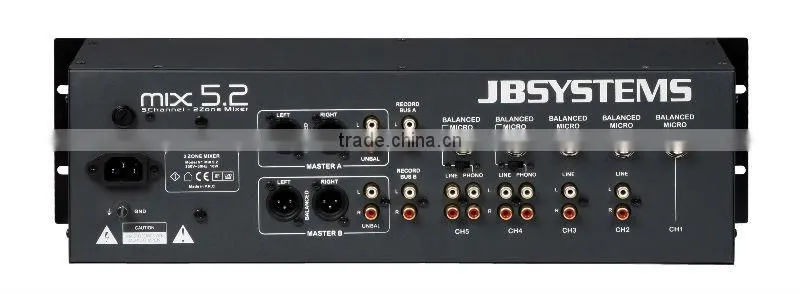

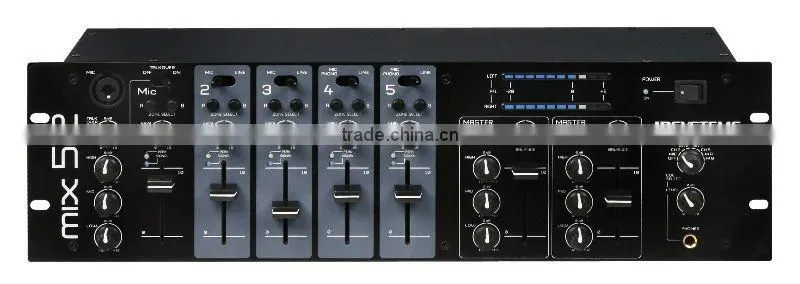

Rack Mount Mixer With 2 Independent Record Outputs

Name: Rack Mount Mixer With 2 Independent Record Outputs
Brand: JBSYSTEMS
SKU: 114205345

US$ 99 - 155 MOQ: 50 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

JBSYSTEMS

Model Number:

MIX 5.2

Summitlite International Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name JBSYSTEMS

Model Number MIX 5.2

Specifications

Rack Mount Mixer
11 inputs on 5 channels
With 1 microphone input and 2 independent record output
CE standard quality!

Rack Mount Mixer With 2 Independent Record Outputs

Description

2 Independent Zones, each with balanced XLR-output (+unbalanced on cinch)
Each zone has 3band tone controls, balance, volume and mono/stereo switch
11 inputs on 5 Channels (5 balanced mic + 4line + 2phono)
1Microphone with 3band tone control and zone assignable adjustable talkover.
Every Channel can be assigned to zone A, zone B or both.
Every Channel has individual peak and signal present leds.
Gain levels and 45mm faders on all channels
PFL with rotary selector, cue level adjustment and 6.3mm headphones jack.
2 independent record outputs without Channel1 microphone and free from talkover muting

Technical Information

Mic Input	1,5mV/10kOhm
Phono Input	3mV/47kOhm
Line Input	150 mV/22 kOhm
S/N Ratio	>85 dB/1 kHz
Master A/B Output	1,5V/4 kOhm unbalanced 850mV/600 Ohm balanced
Frequency Response	20-20.000 Hz (±2dB)
Tone Control	-12 dB, +12dB
Phones	1V/32 Ohm
Dimensions (mm):	134/H x 483/W x 130/D (19"/3U)
