Outdoor Full Color P10 LED Screen SLVS3210

Outdoor Full Color P10 LED Screen SLVS3210 thumbnail-1
Outdoor Full Color P10 LED Screen SLVS3210 photo-1
US$ 999 - 1,999 MOQ: 10 Square Meters
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Summit
Model Number:
SLVS3210
Contact Supplier Request Quote Chat Now
Summitlite International Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Summit
Model Number SLVS3210
Usage Other, Outdoor, Outdoor
Tube Chip Color Full Color
Display Function Video
Pixels 10mm

Specifications

Outdoor Full Color P10 LED Screen; CE and UL approved!
Easy installation and maintenance
Quality assured

Item Name: tri color LED screen RGB

Item No# SLVS3210


Tri-Color (RGB) LED Screen Series  adopts Φ3 oval LED as light source. The LED offers high, consistence, balanced luminance with even light distribution. Tri-Color LED Screens offer a large viewing angle even with elevations as high as 140° from the source without any significant color

shifts.

In this series, there are P10, P12, P16, P18,P20,P25 outdoor type for customers choices to meet different applications.


....

Specification:
Item Name Tricolor P10 Screen
Pitch 10mm

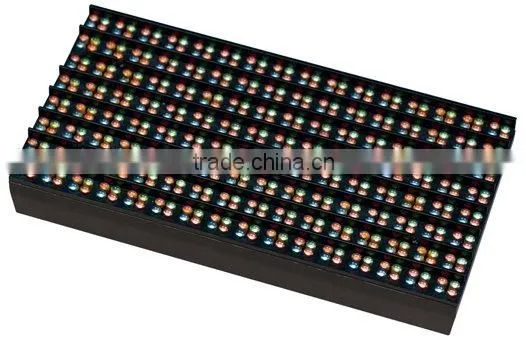

Pixel composition Tricolor 1R1G1B3 oval LED

Module resolution(Pixel) 16*16
Module size(mm) 160*160mm
Cabinet resolution(pixel) 64*48
Resolution Density 3072 dots/cabinet
Cabinet size 640*480*150mm
Cabinet housing Iron
Cabinet weight 30Kg
Luminance
Brightness 5000cd/m2
Physical density(Pixel/m2) 10000Pixel/m2
Display Color  16.7 Million
Optimal view distance ≥8m
Peak power consumption ≤1050W/m2
Average power consumption ≥600W/m2
View angle Horizontal 120°,Vertical120°
Scan mode 1/4
Color gradations 256 Gradations for R,G,B
Refresh rate 400Hz
Frame rate ≥60f/s
Control mode Real time PC to monitor
Display ratio 1027*768;800*600
Drive voltage  5V~5.5V
Blind pixel ratio <0.001
Operating voltage 100~240V AC 50~60Hz
Effective control distance ≤130m
Working temperature -10~50
Working humindity 10%~90% RH
Lifespan ≥100,000hrs
IP rating IP65 Outdoor



Outdoor Full Color P10 LED Screen SLVS3210Outdoor Full Color P10 LED Screen SLVS3210
