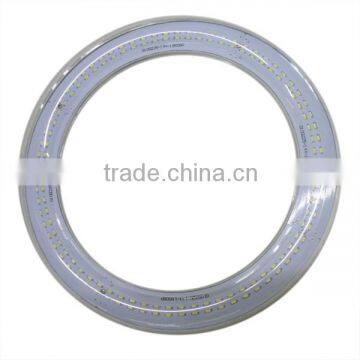

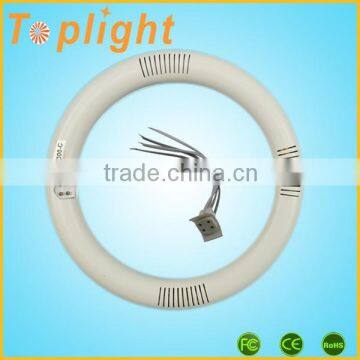

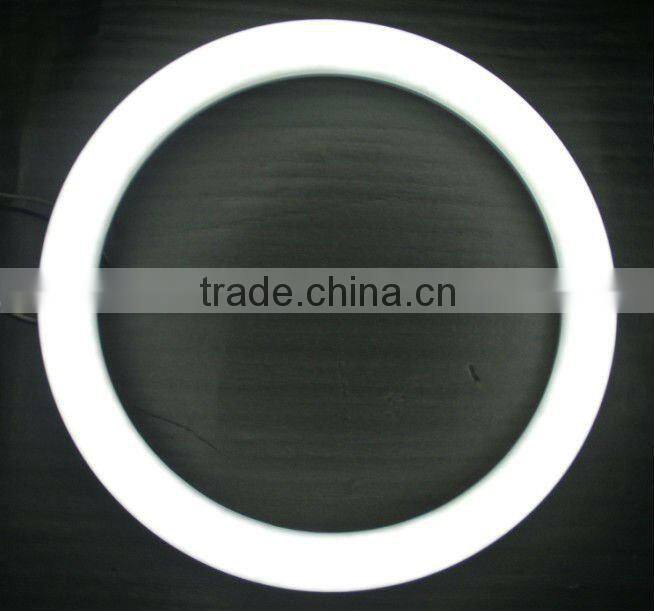

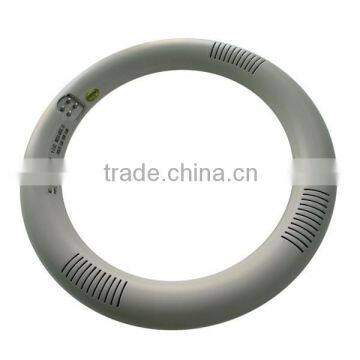

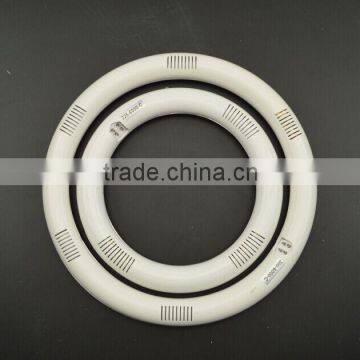

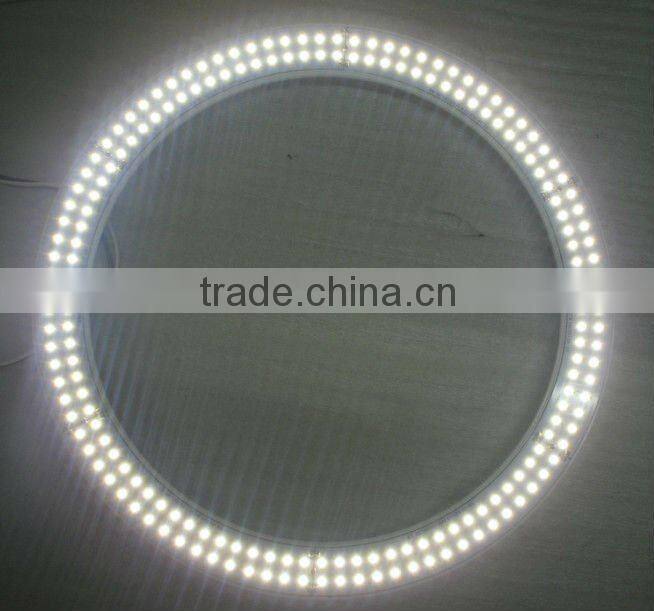

SMD3014 T9 led circular tube, 12w led tube G10Q lamp for decorating
T9 Tube & G10Q Socket LED Circular Ceiling light
Model Optional: TP-G10SMD205-20(11w), TP-G10SMD225-30(12w),TP-G10SMD300-32(18w)
Product Advantages:
1.It can replace the traditional Philps fluorescent ceiling tube,more brighter and long lifespan.
2.Inner driver ,PF>0.92, and stable.Easy to install.
3.Adopt the connection of Al and PC . Perfect design,shine with all round .the plug is G10Q.
Application:
1.Illumination lighting for homes,offices,restaurants,hotels,malls,buses,trains,warehouses,parking lots etc.
2.Task lighting for cabinets, cupboards etc in your homes,restaurants,and kitchens or any other places where accent lighting is required.
3.Dispplay lighting for the articles in your stores and shops.
4.Back lighting for square billboards or advertisement boards.
Product Parameters:
(1) electrical parameter:
|
Tube Length (mm) |
Model No. |
Socket |
LED Quantity (pcs) |
Luminous Flux (lm) |
225mm*30±0.5mm |
TP-G10SMD225-20 |
G10Q |
144pcs |
1050-1150lm |
(2) basic parameter:
Power |
12W |
LED Quantity |
3014 LED/144pcs |
Input voltage |
85-265VAC |
Beam Angle |
>120degree |
Power Factor |
>0.95 |
Power Efficiency |
>92% |
Material |
AL+PC |
(3)PC and color temperature:
Color Temperature |
Warm White(2700-3500K) |
Natural White(4000-4500K) | |
Cool White(6000-6500K) | |
Tube PC |
Clear PC |
Frosted PC |
Installation:
12W Circular T9 LED Tube Light could be installed on the G10Q base lamp.
Kindly Notice: before installing, please make sure the power source is off!
Aging:
12W Circular T9 LED Tube Light 's aging time is over 72hours, the LED tube lights' efficiency will improve better in the aging, and contribute to the efficiency of late use stability. LED in product quality control aging test is a very important link.
Packing:
Tube Length |
Model No. |
Net Weight |
Packing Size |
Carton Quantity |
225mm*30±0.5mm |
TP-G10SMD225-20 |
0.30kg |
620*290*290mm |
10pcs/CTN |
Product size:

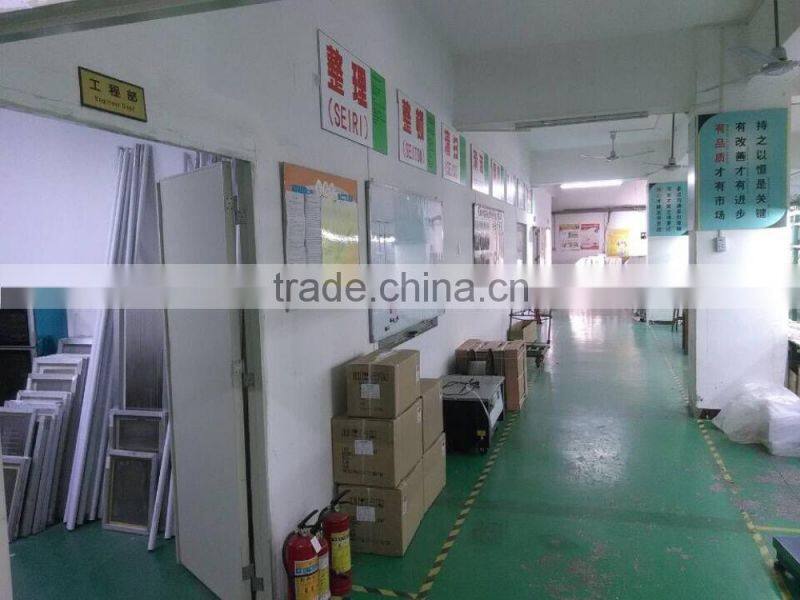

Factory Pictures:
Contact info:
Ms Jessie Jiang
