11w 12w 18w t9 Led Circular Replacement Tube / 12w G10q Led Circular Tube Light

11w 12w 18w t9 Led Circular Replacement Tube / 12w G10q Led Circular Tube Light thumbnail-1
11w 12w 18w t9 Led Circular Replacement Tube / 12w G10q Led Circular Tube Light thumbnail-2
11w 12w 18w t9 Led Circular Replacement Tube / 12w G10q Led Circular Tube Light thumbnail-3
11w 12w 18w t9 Led Circular Replacement Tube / 12w G10q Led Circular Tube Light thumbnail-4
11w 12w 18w t9 Led Circular Replacement Tube / 12w G10q Led Circular Tube Light thumbnail-5
11w 12w 18w t9 Led Circular Replacement Tube / 12w G10q Led Circular Tube Light thumbnail-6
11w 12w 18w t9 Led Circular Replacement Tube / 12w G10q Led Circular Tube Light photo-1
11w 12w 18w t9 Led Circular Replacement Tube / 12w G10q Led Circular Tube Light photo-2
11w 12w 18w t9 Led Circular Replacement Tube / 12w G10q Led Circular Tube Light photo-3
11w 12w 18w t9 Led Circular Replacement Tube / 12w G10q Led Circular Tube Light photo-4
11w 12w 18w t9 Led Circular Replacement Tube / 12w G10q Led Circular Tube Light photo-5
11w 12w 18w t9 Led Circular Replacement Tube / 12w G10q Led Circular Tube Light photo-6
US$ 12 - 15 MOQ: 100 Pieces
Key Specifications
Get Latest Price
LED Light Source:
Epistar smd2835
Warranty(Years):
3
Input Voltage(V):
85-277
Contact Supplier Request Quote Chat Now
Shenzhen Toplight Lighting Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source Epistar smd2835
Warranty(Years) 3
Input Voltage(V) 85-277
Lamp Power(W) 12
Lamp Luminous Flux(lm) 1260
Lamp Luminous Efficiency(lm/w) 100
Color Temperature(CCT) Warm White
Working Temperature(℃) -20, 40
Working Lifetime(Hour) 50000
Lamp Body Material Other, Aluminum+PC
IP Rating IP44
Certification CE, PSE
Place of Origin Guangdong, China
Brand Name Toplight
Model Number Other, TP-G10SMD225-30

11w 12w 18w t9 led circular replacement tube / 12w g10q led circular tube light





LED circular tube Parameters:



Dimension

Model No.

Power

LED chips

Luminous Flux

205*29mm

TP-G10SMD205-20

11w

Epistar SMD2835/84pcs

1020-1130lm

225*29mm

TP-G10SMD225-30

12w

Epistar SMD2835/108pcs

1150-1260lm

300*29mm

TP-G10SMD300-32

18w

Epistar SMD2835/150pcs

1720-1860lm



Color Temperature

Warm White(2700-3500K)

Natural White(4000-4500K)

Pure White(5000-5500K)

Cool White(6000-6500K)

PC cover

Clear

Frosted





Product Description



Model number:       TP-G10SMD225-30
Power:                      12W
LED Source:             Epistar chip smd2835/108pcs
Colors:                      WW(2700k-3500k),NW(4000k-4500k),CW(6000k-6500k)
Housing material:   Aluminum and PC
Efficiency:                95-105lm/w
Voltage:                    85-277VAC
Driver type:              Internal rubycon isolated driver
Power factor:          >0.95
Beam angle:             >120 degrees
CRI:                            >72Ra or >80Ra
Lifespan:                   50000hours



11w 12w 18w t9 led circular replacement tube / 12w g10q led circular tube light

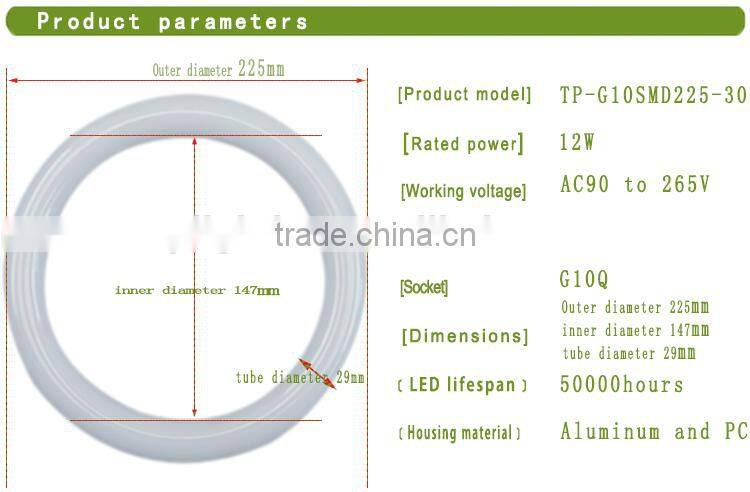

Size

 11w 12w 18w t9 led circular replacement tube / 12w g10q led circular tube light

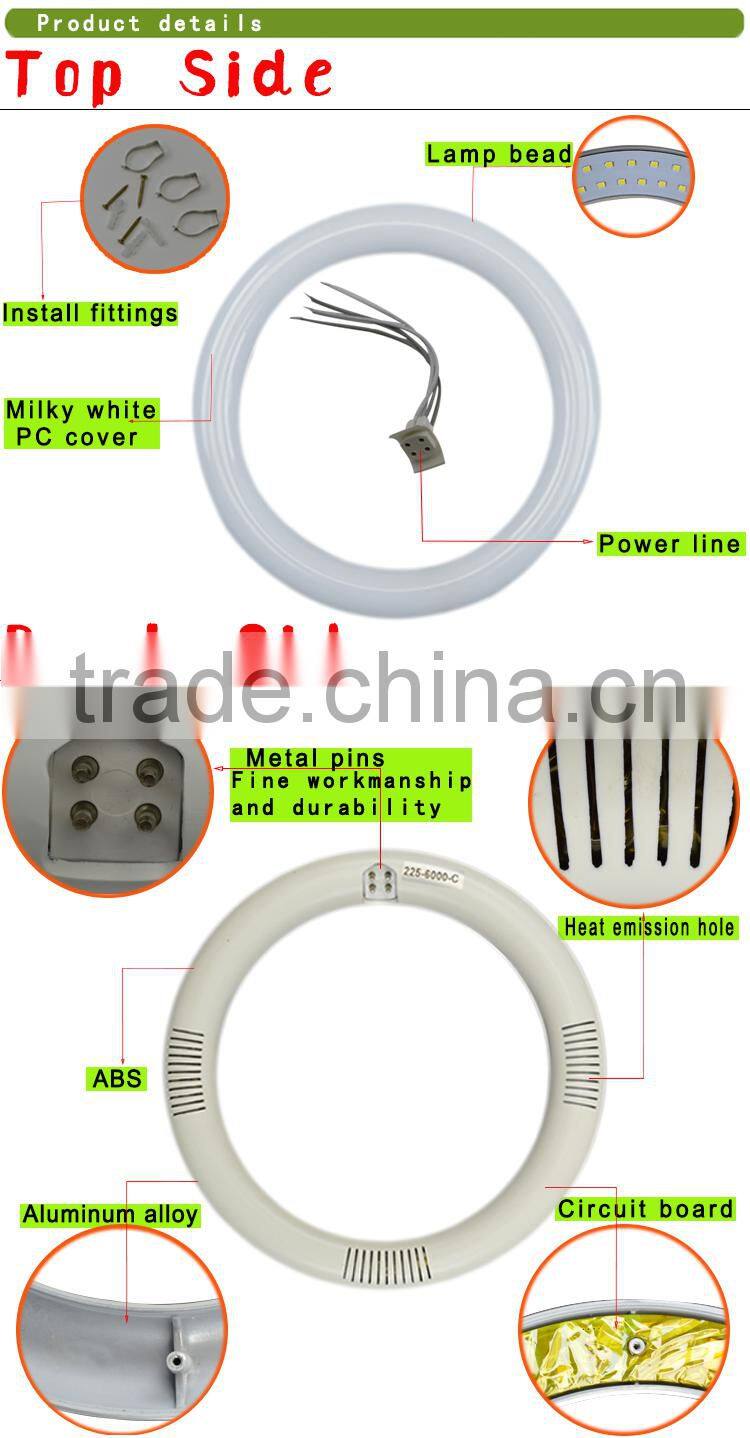

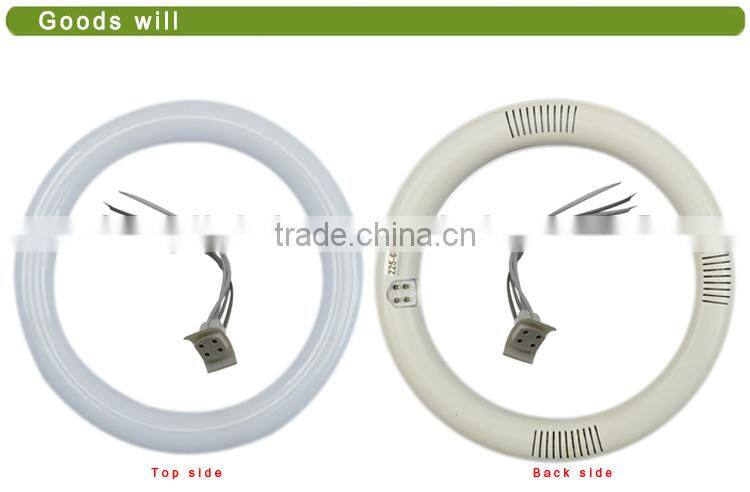

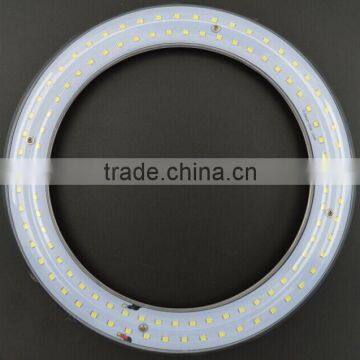

Detailed Images



11w 12w 18w t9 led circular replacement tube / 12w g10q led circular tube light

11w 12w 18w t9 led circular replacement tube / 12w g10q led circular tube light

11w 12w 18w t9 led circular replacement tube / 12w g10q led circular tube light

11w 12w 18w t9 led circular replacement tube / 12w g10q led circular tube light

11w 12w 18w t9 led circular replacement tube / 12w g10q led circular tube light

11w 12w 18w t9 led circular replacement tube / 12w g10q led circular tube light

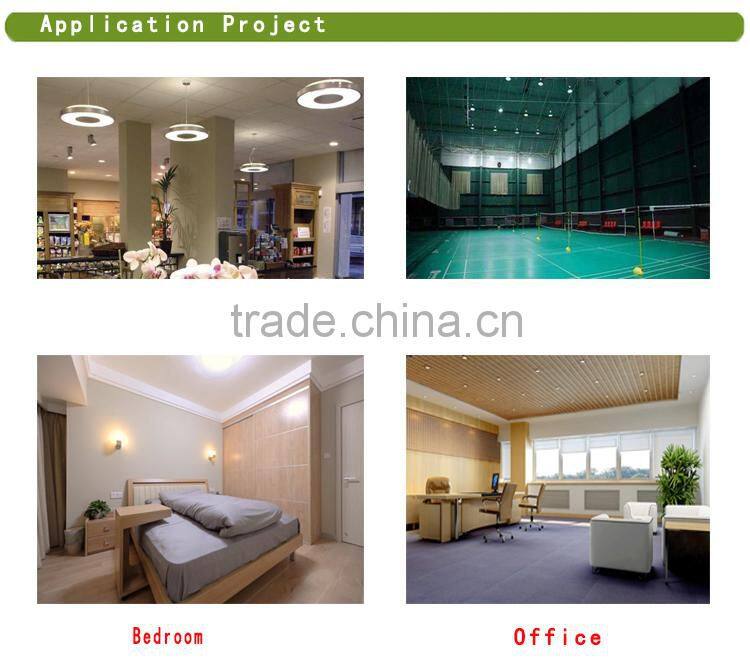

Product Uses



1.Illumination lighting for homes,offices,restaurants,hotels,malls,buses,trains,warehouses,parking lots etc.

2.Task lighting for cabinets, cupboards etc in your homes,restaurants,and kitchens or any other places where accent lighting is required.

3.Dispplay lighting for the articles in your stores and shops.

4.Back lighting for square billboards or advertisement boards.





Packaging & Shipping



Bubble bag+White Box: 12PCS/CTN,545*275*280mm

EPE+White Box: 10PCS/CTN, 545*275*280mm

11w 12w 18w t9 led circular replacement tube / 12w g10q led circular tube light

Shipping:

11w 12w 18w t9 led circular replacement tube / 12w g10q led circular tube light







Company Information



11w 12w 18w t9 led circular replacement tube / 12w g10q led circular tube light



Contact info:



Ms Jessie Jiang

Tel: +86-0755-28151799 Exit 860
Mob: +86-136 0304 5625
Skype: toplight2013

Any question please directly contact me!Welcome...
