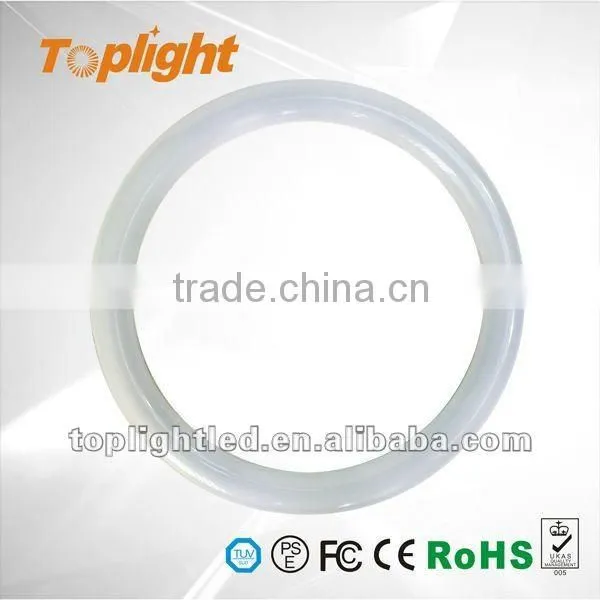

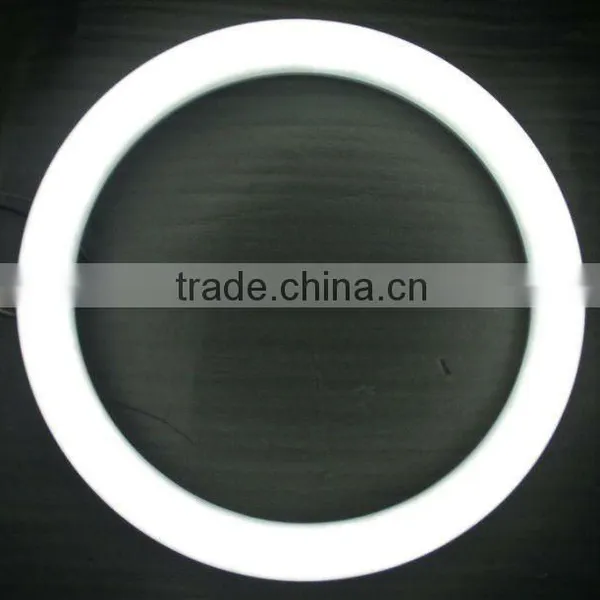

T9 g10q socket 300mm led circular ceilight tube CE RoHs
T9 Tube & G10Q Socket LED Circular Ceiling light

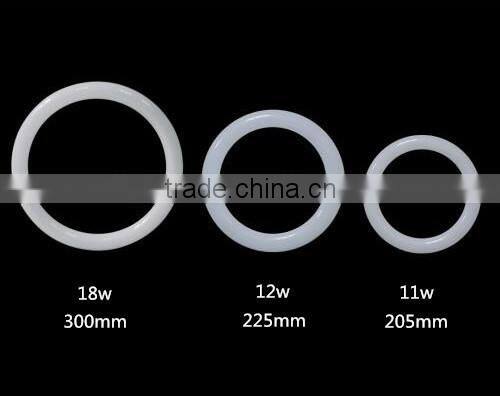

Model Optional: TP-G10SMD205-20(11w), TP-G10SMD225-30(12w),TP-G10SMD300-32(18w)
Product Advantages:
1.It can replace the traditional Philps fluorescent ceiling tube,more brighter and long lifespan.
2.Inner driver ,PF>0.92, and stable.Easy to install.
3.Adopt the connection of Al and PC . Perfect design,shine with all round .the plug is G10Q.
Application:
1.Illumination lighting for homes,offices,restaurants,hotels,malls,buses,trains,warehouses,parking lots etc.
2.Task lighting for cabinets, cupboards etc in your homes,restaurants,and kitchens or any other places where accent lighting is required.
3.Dispplay lighting for the articles in your stores and shops.
4.Back lighting for square billboards or advertisement boards.
Product datas:
| Model number: TP-G10SMD300-32 |
| Power: 18W |
| LED Source: smd3014/180pcs |
| Colors: WW(2700k-3500k),NW(4000k-4500k),CW(6000k-6500k) |
| Housing material: Aluminum and PC |
| Efficiency: 95-100lm/w |
| Voltage: 85-277VAC |
| Driver type: Internal safety isolated driver |
| Power factor: >0.95 |
| Beam angle: 120degrees |
| CRI: >72Ra |
| Lifespan: 50000hours |
All models parameters:
(1)electrical parameter:
|

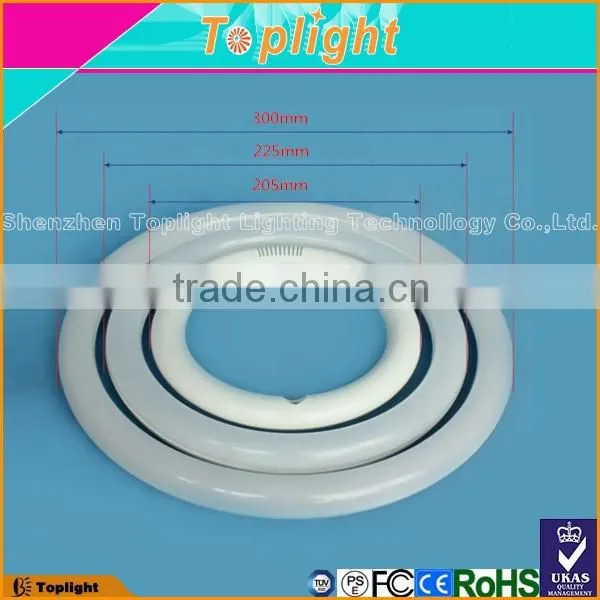

Tube Length (mm) |
Model No. |
Socket |
LED Quantity (pcs) |
Luminous Flux (lm) |
205mm±0.5mm |
TP-G10SMD205-20 |
G10Q |
112LEDs |
980-1040Lm |
225mm±0.5mm |
TP-G10SMD225-30 |
G10Q |
144LEDs |
1050-1150Lm |
300mm±0.5mm |
TP-G10SMD300-32 |
G10Q |
180LEDs |
1700-1750Lm |
(2) basic parameter:
Power |
11W, 12W, 18W |
LED Quantity |
112LEDs,144LEDs,180LEDs |
Input voltage |
85-265VAC |
Beam Angle |
>120degree |
Power Factor |
>0.95 |
Power Efficiency |
>92% |
Material |
AL+PC |
(3)PC and color temperature:
Color Temperature |
Warm White(2700-3500K) |
Natural White(4000-5000K) | |
Cool White(6000-6500K) | |
Tube PC |
Clear PC |
|
Frosted PC |

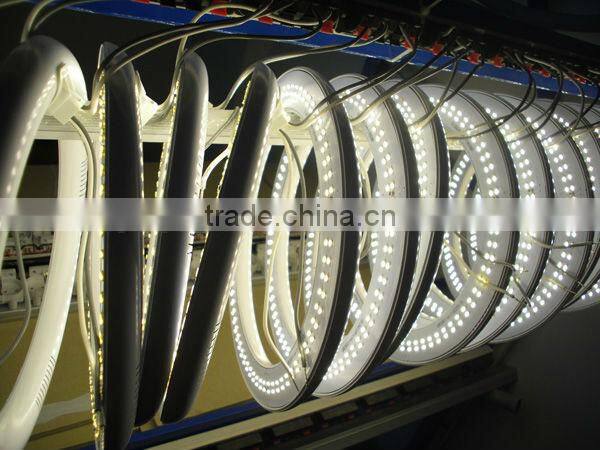

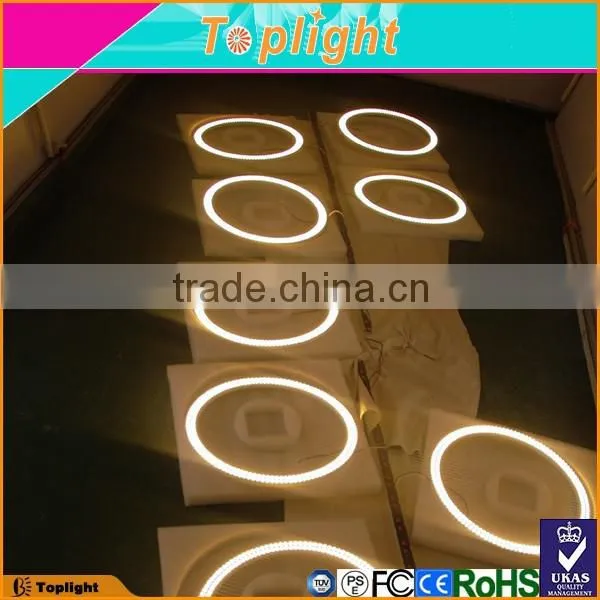

Aging:
aging time is over 72hours, the LED tube lights' efficiency will improve better in the aging, and contribute
to the efficiency of late use stability. LED in product quality control aging test is a very important link.
Structure installation:
18W Circular T9 LED Tube Light could be installed on the G10Q base lamp.
Kindly Notice: before installing, please make sure the power source is off!

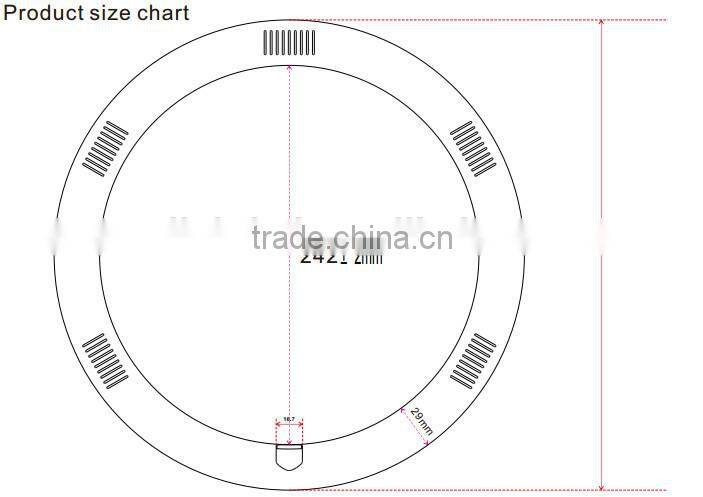

Dimensions:
Package:
Tube Length |
Model No. |
Net Weight |
Packing Size |
Carton Quantity |
300mm*30±0.5mm |
TP-G10SMD300-32 |
0.52kg |
580*290*280mm |
10pcs/CTN |
Payment & shipping:
